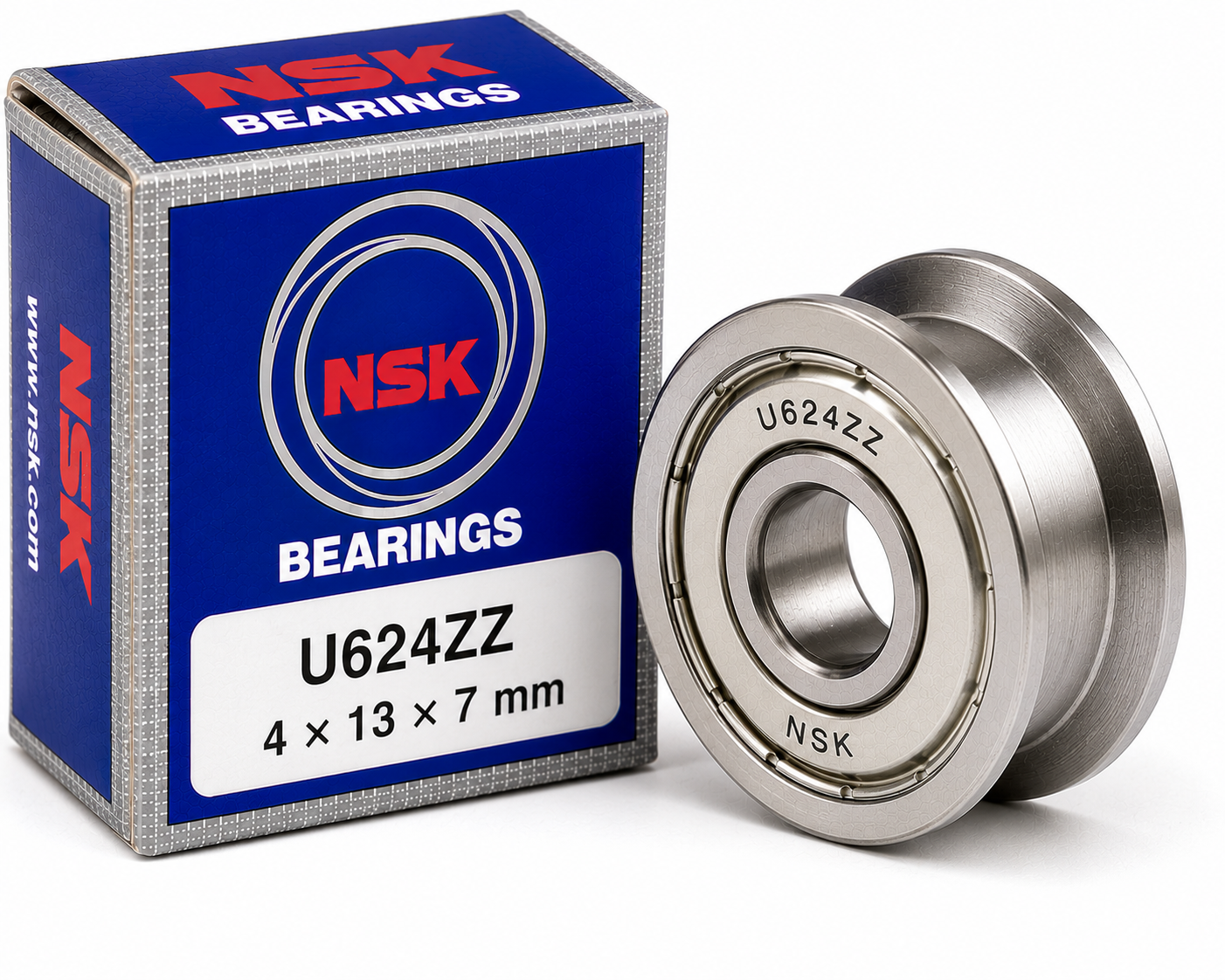

U624ZZ U-Groove Guide Pulley Bearing – 4 × 13 × 7 mm kits
Regular price
$8.99 AUD
Couldn't load pickup availability
The U624ZZ is a miniature U-groove guide pulley bearing designed to run along rails, tracks, wires, or guide surfaces. The U-shaped groove helps keep the bearing aligned during rolling motion, making it suitable for compact guide systems and light-duty mechanical applications.
The ZZ shielded design uses metal shields on both sides to help retain lubrication and protect the bearing from dust and light contamination.
Specifications
| Specification | Details |
|---|---|
| Product Type | U-Groove Guide Pulley Bearing |
| Part Number | U624ZZ |
| Bore / Inside Diameter | 4 mm |
| Outside Diameter | 13 mm |
| Width | 7 mm |
| Groove Type | U-groove |
| Shield Type | ZZ metal shields both sides |
| Material | Chrome steel / bearing steel |
| Application | Rail guide, track roller, pulley guide |
Key Features
- U-groove guide design
- Compact 4 × 13 × 7 mm size
- Double metal shielded bearing
- Smooth rolling operation
- Helps guide movement along rails or tracks
- Suitable for 3D printers, automation, guide pulleys, and small machinery
U624ZZ listings identify it as a U-groove track guide roller bearing with 4 mm ID, 13 mm OD, and 7 mm width. Some listings also show groove details such as approximately 5 mm groove width and 1.5 mm groove depth.
