TN32×20 Twin-Rod Pneumatic Cylinder – 32mm Bore × 20mm Stroke – Double Acting
The TN32×20 Twin-Rod Pneumatic Cylinder is a compact, heavy-duty double-acting pneumatic actuator designed for precise and stable linear movement in industrial automation, packaging machinery, positioning systems, clamping equipment and assembly applications.
Featuring a 32 mm bore and 20 mm stroke, the TN32×20 uses two Ø16 mm guide rods to provide high rigidity and excellent resistance to rotation. The twin-rod configuration helps maintain accurate alignment of the moving plate, making the cylinder suitable for applications requiring short, controlled and repeatable linear movement.
The cylinder operates using compressed air for both extension and retraction and provides approximately 56 kgf theoretical thrust at 0.5 MPa.
Technical Specifications
| Specification | Details |
|---|---|
| Model | TN32×20 |
| Series | TN Twin-Rod Series |
| Cylinder Type | Compact Twin-Rod Pneumatic Cylinder |
| Bore Size | 32 mm |
| Stroke | 20 mm |
| Action | Double Acting |
| Guide Rods | 2 × Ø16 mm |
| Working Medium | Compressed Air |
| Air Ports | 2 × PT1/8 |
| Front Plate Thread | M8 × 1.25 |
| Piston / Actuating Thread | M10 × 1.5 |
| Overall Retracted Length | Approx. 128 mm |
| Body Length | Approx. 98 mm |
| Body Width | Approx. 96 mm |
| Body Height | Approx. 40 mm |
| Front Plate Width | Approx. 94 mm |
| Front Plate Height | Approx. 38 mm |
| Top Mounting Hole Centre Distance | Approx. 83 mm |
| Air Port Centre Distance | Approx. 50 mm |
| Front Projection | Approx. 17.5 mm |
| Theoretical Thrust at 0.5 MPa | Approx. 56 kgf |
Key Features
- 32 mm bore × 20 mm stroke
- 2 × Ø16 mm guide rods
- Approx. 56 kgf theoretical thrust at 0.5 MPa
- Double-acting pneumatic operation
- Heavy-duty twin-rod construction
- Excellent resistance to rotation
- High rigidity and stable linear movement
- 2 × PT1/8 pneumatic ports
- M8 × 1.25 front plate thread
- M10 × 1.5 piston/actuating thread
- Compact aluminium body
- Suitable for repetitive industrial operation
Typical Applications
Suitable for:
- Industrial automation
- Packaging machinery
- Heavy-duty positioning
- Pick-and-place equipment
- Clamping mechanisms
- Assembly machinery
- Component transfer
- Sorting equipment
- Conveyor systems
- General pneumatic machinery
Double-Acting Operation
The TN32×20 uses two pneumatic ports to control movement in both directions. Compressed air supplied to one port causes the actuator to extend, while compressed air supplied to the opposite port causes it to retract.
A suitable pneumatic directional or solenoid valve can be used to control operation. Flow-control fittings may also be installed to regulate extension and retraction speed.
Installation Notes
Use clean, filtered compressed air with correctly sized fittings and tubing. Keep the cylinder properly aligned with the moving load and avoid excessive side loading.

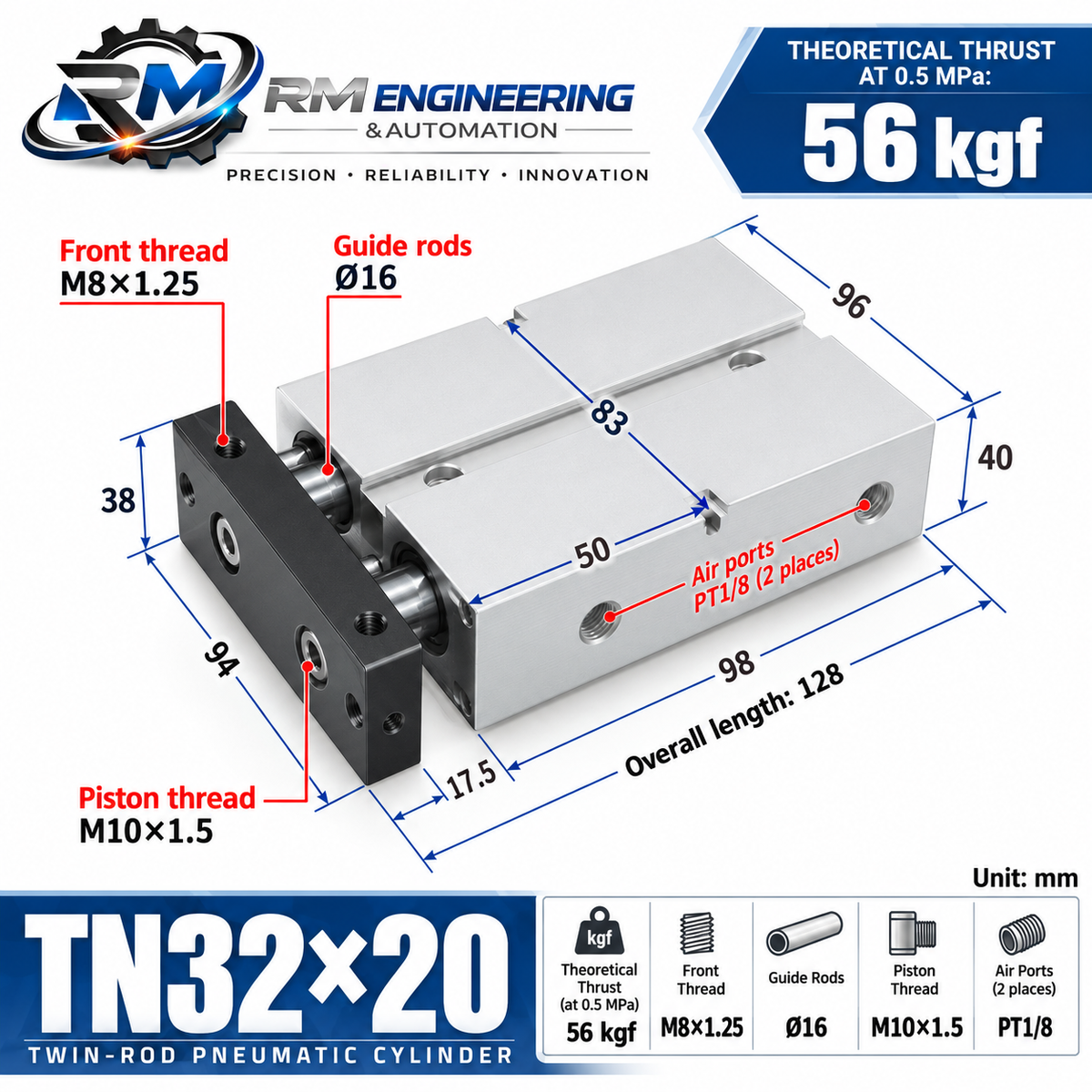

Note: Dimensions and specifications above are based on the supplied TN32×20 reference image. Verify critical dimensions on the actual product before fabrication or permanent machine installation.
