TN32×100 Twin-Rod Pneumatic Cylinder – 32mm Bore × 100mm Stroke – Double Acting
TN32×100 Twin-Rod Pneumatic Cylinder – 32mm Bore × 100mm Stroke – Double Acting
Product Description
The TN32×100 Twin-Rod Pneumatic Cylinder is a compact, heavy-duty double-acting pneumatic actuator designed for precise, stable and repeatable linear movement in industrial automation, packaging equipment, positioning systems, clamping machinery and material-handling applications.
Featuring a 32 mm bore and 100 mm stroke, the TN32×100 uses two Ø16 mm guide rods to provide excellent rigidity and resistance to rotation. The twin-rod construction helps maintain alignment of the moving plate throughout the full 100 mm stroke, making it suitable for applications where conventional single-rod cylinders may allow unwanted rotational movement.
The cylinder operates using compressed air for both extension and retraction and provides approximately 56 kgf theoretical thrust at 0.5 MPa.
Technical Specifications
| Specification | Details |
|---|---|
| Model | TN32×100 |
| Series | TN Twin-Rod Series |
| Cylinder Type | Compact Twin-Rod Pneumatic Cylinder |
| Bore Size | 32 mm |
| Stroke | 100 mm |
| Action | Double Acting |
| Guide Rods | 2 × Ø16 mm |
| Working Medium | Compressed Air |
| Air Ports | 2 × PT1/8 |
| Front Plate Thread | M8 × 1.25 |
| Piston / Actuating Thread | M10 × 1.5 |
| Overall Retracted Length | Approx. 208 mm |
| Body Length | Approx. 178 mm |
| Body Width | Approx. 96 mm |
| Body Height | Approx. 40 mm |
| Front Plate Width | Approx. 94 mm |
| Front Plate Height | Approx. 38 mm |
| Top Mounting Hole Centre Distance | Approx. 83 mm |
| Air Port Centre Distance | Approx. 90 mm |
| Front Projection | Approx. 17 + 13 mm |
| Theoretical Thrust at 0.5 MPa | Approx. 56 kgf |
Key Features
- 32 mm bore × 100 mm stroke
- 2 × Ø16 mm guide rods
- Approx. 56 kgf theoretical thrust at 0.5 MPa
- Long 100 mm controlled linear travel
- Double-acting pneumatic operation
- Heavy-duty twin-rod construction
- Excellent resistance to rotation
- High rigidity and stable movement
- Smooth and repeatable positioning
- 2 × PT1/8 pneumatic ports
- M8 × 1.25 front plate thread
- M10 × 1.5 piston/actuating thread
- Compact aluminium body
- Suitable for repetitive industrial automation
Typical Applications
Suitable for:
- Industrial automation
- Packaging machinery
- Pick-and-place equipment
- Product positioning
- Clamping mechanisms
- Component transfer
- Assembly machinery
- Sorting equipment
- Conveyor systems
- Material handling equipment
- General pneumatic machinery
Double-Acting Operation
The TN32×100 uses two pneumatic ports to control movement in both directions.
Compressed air supplied to one port causes the actuator to extend, while air supplied to the opposite port causes it to retract.
A suitable directional or solenoid valve can be used to control operation. Flow-control fittings may also be installed to adjust extension and retraction speed.
Installation Recommendations
Use clean, filtered compressed air and correctly sized pneumatic tubing and fittings. Ensure the cylinder is properly aligned with the moving load and avoid excessive side loading.
For machinery design, confirm the required force, stroke, operating pressure, mounting configuration and cycle speed before installation.

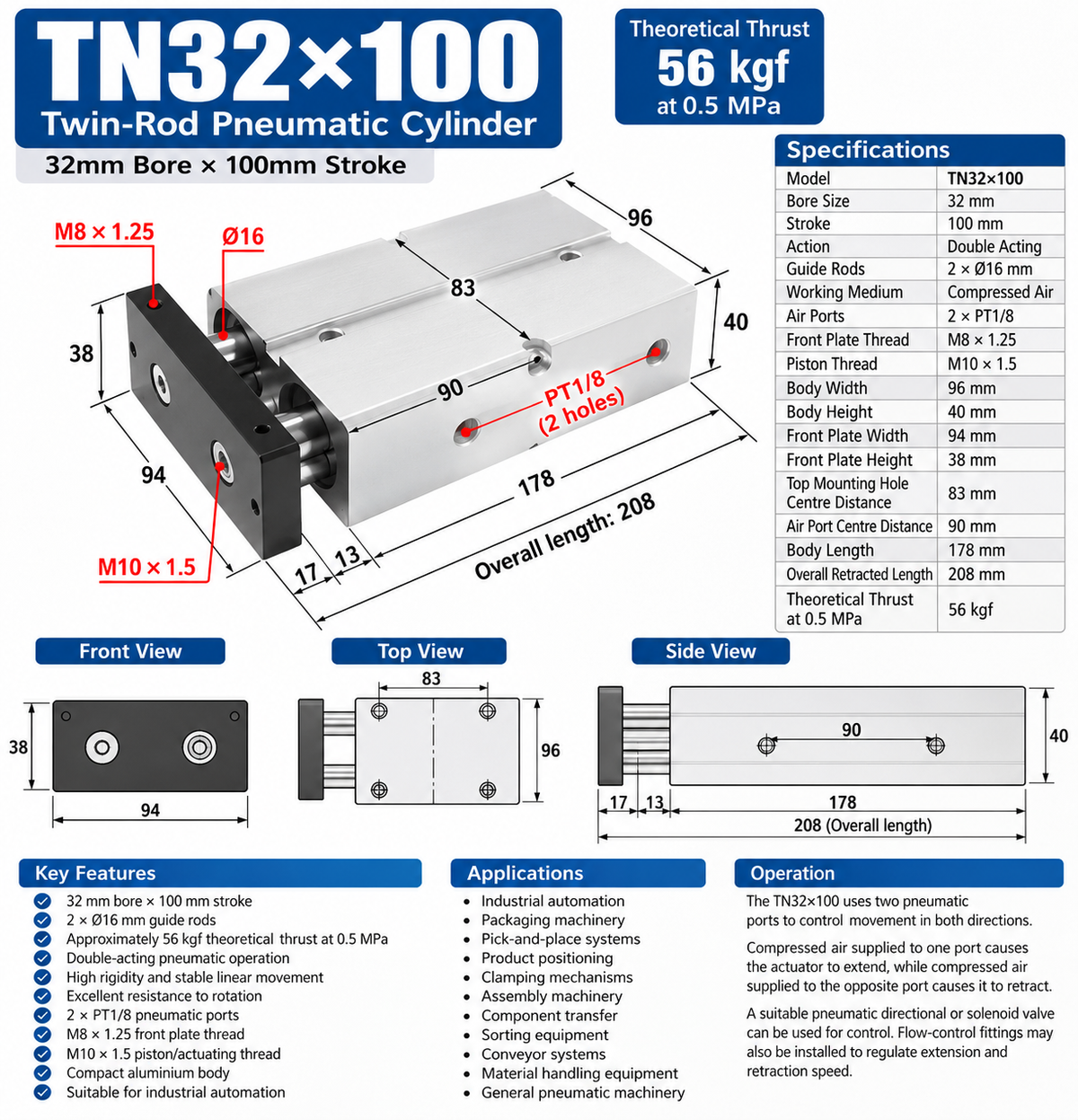

Note: Dimensions and specifications above are based on the supplied TN32×100 reference image. Verify critical dimensions on the actual product before fabrication or permanent machine installation.
