TN25×50 Twin-Rod Pneumatic Cylinder – 25mm Bore × 50mm Stroke – Double Acting
The TN25×50 Twin-Rod Pneumatic Cylinder is a compact double-acting pneumatic actuator designed for precise, stable and repeatable linear movement in industrial automation, packaging machinery, positioning systems, clamping equipment and assembly applications.
Featuring a 25 mm bore and 50 mm stroke, the TN25×50 uses two Ø12 mm guide rods to provide high rigidity and improved resistance to rotation. The twin-rod construction helps maintain alignment of the moving plate throughout the stroke, making it suitable for applications requiring controlled positioning and good load stability.
Compressed air controls both extension and retraction, providing positive movement in both directions.

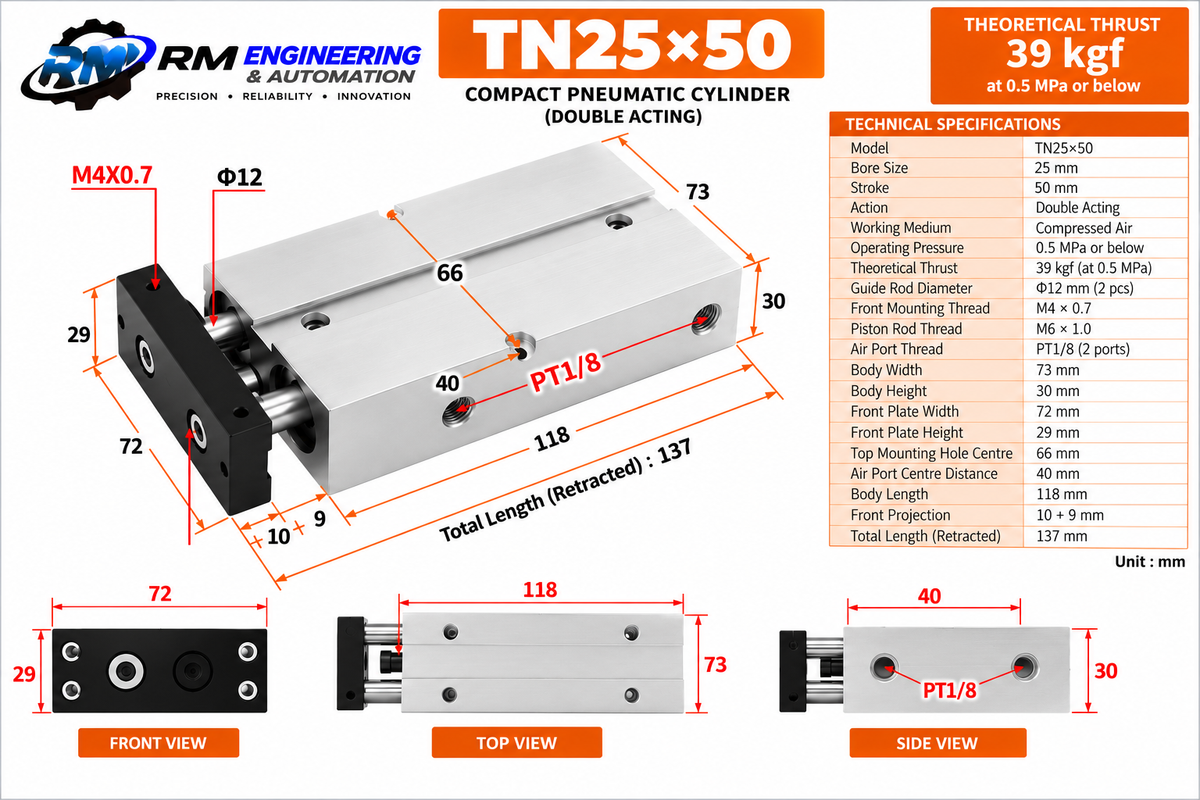

Technical Specifications
| Specification | Details |
|---|---|
| Model | TN25×50 |
| Series | TN Twin-Rod Series |
| Cylinder Type | Compact Twin-Rod Pneumatic Cylinder |
| Bore Size | 25 mm |
| Stroke | 50 mm |
| Action | Double Acting |
| Guide Rods | 2 × Ø12 mm |
| Working Medium | Compressed Air |
| Air Port Thread | 2 × PT1/8 |
| Front Plate Thread | M4 × 0.7 |
| Piston / Actuating Thread | M6 × 1.0 |
| Body Width | Approx. 73 mm |
| Body Height | Approx. 30 mm |
| Front Plate Width | Approx. 72 mm |
| Front Plate Height | Approx. 29 mm |
| Top Mounting Hole Centre Distance | Approx. 66 mm |
| Air Port Centre Distance | Approx. 40 mm |
| Front Projection | Approx. 10 + 9 mm |
| Theoretical Thrust at 0.5 MPa | Approx. 39 kgf |
Key Features
- 25 mm bore × 50 mm stroke
- 2 × Ø12 mm guide rods
- Approx. 39 kgf theoretical thrust at 0.5 MPa
- Double-acting pneumatic operation
- Compact twin-rod construction
- High rigidity and stable linear movement
- Improved resistance to rotation
- Smooth and repeatable operation
- 2 × PT1/8 pneumatic ports
- M4 × 0.7 front plate thread
- M6 × 1.0 piston/actuating thread
- Aluminium body construction
- Suitable for repetitive industrial automation
Typical Applications
The TN25×50 is suitable for:
- Industrial automation
- Packaging machinery
- Pick-and-place systems
- Product positioning
- Clamping mechanisms
- Component transfer
- Assembly machinery
- Sorting equipment
- Small conveyor systems
- General pneumatic machinery
Double-Acting Operation
The TN25×50 uses two pneumatic ports. Compressed air supplied to one port causes the actuator to extend, while air supplied to the opposite port causes it to retract.
A suitable pneumatic directional or solenoid valve can be used to control operation. Flow-control fittings may also be installed to regulate extension and retraction speed.
Installation Notes
Use clean, filtered compressed air with correctly sized pneumatic fittings and tubing. Keep the actuator properly aligned with the moving load and avoid excessive side loading.
Note: The fixed cross-sectional dimensions, threads and port details are based on the supplied TN25×20 reference. The TN25×50 length-related dimensions should be verified on the actual product before fabrication or permanent installation.
