TN25×20 Twin-Rod Pneumatic Cylinder – 25mm Bore × 20mm Stroke – Double Acting
The TN25×20 Twin-Rod Pneumatic Cylinder is a compact double-acting pneumatic actuator designed for accurate, stable and repeatable linear movement in industrial automation, packaging machinery, positioning systems, clamping equipment and compact production machinery.
Featuring a 25 mm bore and 20 mm stroke, the TN25×20 uses two Ø12 mm guide rods to provide high rigidity and improved resistance to rotation. The twin-rod configuration helps maintain accurate alignment of the moving plate, making it suitable for short-stroke applications requiring controlled linear motion and good load stability.
The cylinder operates using compressed air for both extension and retraction, providing positive movement in both directions.
Technical Specifications
| Specification | Details |
|---|---|
| Model | TN25×20 |
| Series | TN Twin-Rod Series |
| Cylinder Type | Compact Twin-Rod Pneumatic Cylinder |
| Bore Size | 25 mm |
| Stroke | 20 mm |
| Action | Double Acting |
| Guide Rods | 2 × Ø12 mm |
| Working Medium | Compressed Air |
| Air Port Thread | 2 × PT1/8 |
| Front Plate Thread | M4 × 0.7 |
| Piston / Actuating Thread | M6 × 1.0 |
| Overall Retracted Length | Approx. 101 mm |
| Body Length | Approx. 82 mm |
| Body Width | Approx. 73 mm |
| Body Height | Approx. 30 mm |
| Front Plate Width | Approx. 72 mm |
| Front Plate Height | Approx. 29 mm |
| Top Mounting Hole Centre Distance | Approx. 66 mm |
| Air Port Centre Distance | Approx. 40 mm |
| Front Projection | Approx. 10 + 9 mm |
| Theoretical Thrust at 0.5 MPa | Approx. 39 kgf |
Key Features
- 25 mm bore × 20 mm stroke
- 2 × Ø12 mm guide rods
- Approx. 39 kgf theoretical thrust at 0.5 MPa
- Double-acting pneumatic operation
- Compact twin-rod construction
- High rigidity and stable linear movement
- Improved resistance to rotation
- 2 × PT1/8 air ports
- M4 × 0.7 front plate thread
- M6 × 1.0 piston/actuating thread
- Compact aluminium body
- Suitable for repetitive industrial use
Typical Applications
Suitable for:
- Industrial automation
- Packaging machinery
- Pick-and-place systems
- Product positioning
- Compact clamping mechanisms
- Assembly machinery
- Component transfer
- Sorting systems
- Small conveyor systems
- General pneumatic machinery
Double-Acting Operation
The TN25×20 uses two pneumatic ports. Compressed air supplied to one side causes the actuator to extend, while air supplied to the opposite side causes it to retract.
A suitable pneumatic directional or solenoid valve can be used to control movement. Flow-control fittings may also be installed to regulate speed.
Installation Notes
Use clean, filtered compressed air and correctly sized pneumatic fittings and tubing. Ensure the actuator is aligned with the moving load and avoid unnecessary side loading.

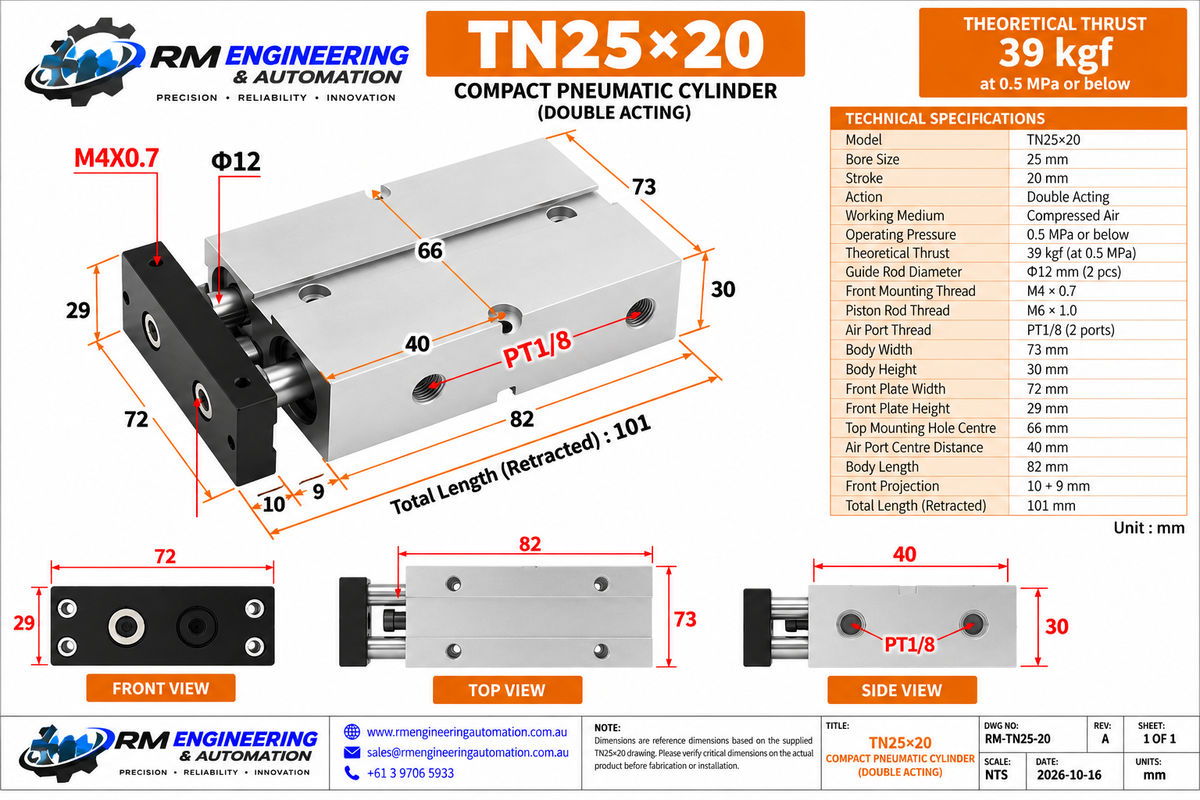

Note: Dimensions and specifications above are based on the supplied TN25×20 reference image. Verify critical dimensions on the actual product before fabrication or permanent installation.
