TN10×50 Twin-Rod Pneumatic Cylinder – 10mm Bore × 50mm Stroke – Double Acting
TN10×50 Twin-Rod Pneumatic Cylinder – 10mm Bore × 50mm Stroke – Double Acting
Product Description
The TN10×50 Twin-Rod Pneumatic Cylinder is a compact double-acting pneumatic actuator designed for precision linear movement in industrial automation, packaging machinery, positioning systems and compact production equipment.
Featuring a 10 mm bore and 50 mm stroke, the TN10×50 uses two Ø6 mm guide rods to provide improved rigidity and resistance to rotation compared with a conventional single-rod pneumatic cylinder. This makes it suitable for applications requiring stable, repeatable linear motion in a compact installation space.
The cylinder uses compressed air for both extension and retraction, providing controlled movement in both directions.
Technical Specifications
| Specification | Details |
|---|---|
| Model | TN10×50 |
| Series | TN Twin-Rod Series |
| Cylinder Type | Twin-Rod Pneumatic Cylinder |
| Bore Size | 10 mm |
| Stroke | 50 mm |
| Action | Double Acting |
| Guide Rods | 2 × Ø6 mm |
| Working Medium | Compressed Air |
| Air Port Thread | M5 × 0.8 |
| Number of Air Ports | 2 |
| Front Plate Thread | M3 × 0.5 |
| Piston / Actuating Thread | M4 × 0.7 |
| Overall Retracted Length | Approx. 108 mm |
| Body Length | Approx. 96 mm |
| Body Width | Approx. 42 mm |
| Body Height | Approx. 17 mm |
| Front Plate Width | Approx. 41 mm |
| Front Plate Height | Approx. 16 mm |
| Mounting Hole Centre Distance | Approx. 34 mm |
| Air Port Centre Distance | Approx. 45 mm |
| Front Projection | Approx. 6 + 7 mm |
Key Features
- 10 mm bore × 50 mm stroke
- Exactly 2 × Ø6 mm guide rods
- Double-acting pneumatic operation
- Compact twin-rod construction
- Improved resistance to piston rotation
- Smooth and stable linear movement
- 2 × M5 × 0.8 pneumatic ports
- M3 × 0.5 front plate thread
- M4 × 0.7 actuating/piston thread
- Aluminium body construction
- Compact design for limited installation space
- Suitable for repetitive automation applications
Typical Applications
The TN10×50 is suitable for:
- Industrial automation
- Small conveyor systems
- Packaging machinery
- Pick-and-place equipment
- Product positioning
- Compact clamping mechanisms
- Assembly machinery
- Sorting equipment
- Component transfer
- Small automated production equipment
- General pneumatic machinery
Double-Acting Operation
The TN10×50 uses two pneumatic ports to control movement in both directions.
Compressed air supplied to one port causes the cylinder to extend, while air supplied to the opposite port causes it to retract.
A suitable pneumatic directional or solenoid valve can be used to control operation. Flow-control fittings may also be fitted to regulate movement speed.
Installation Notes
Use clean, filtered compressed air and suitable pneumatic tubing and fittings. Ensure the cylinder and moving load are correctly aligned to prevent unnecessary side loading.

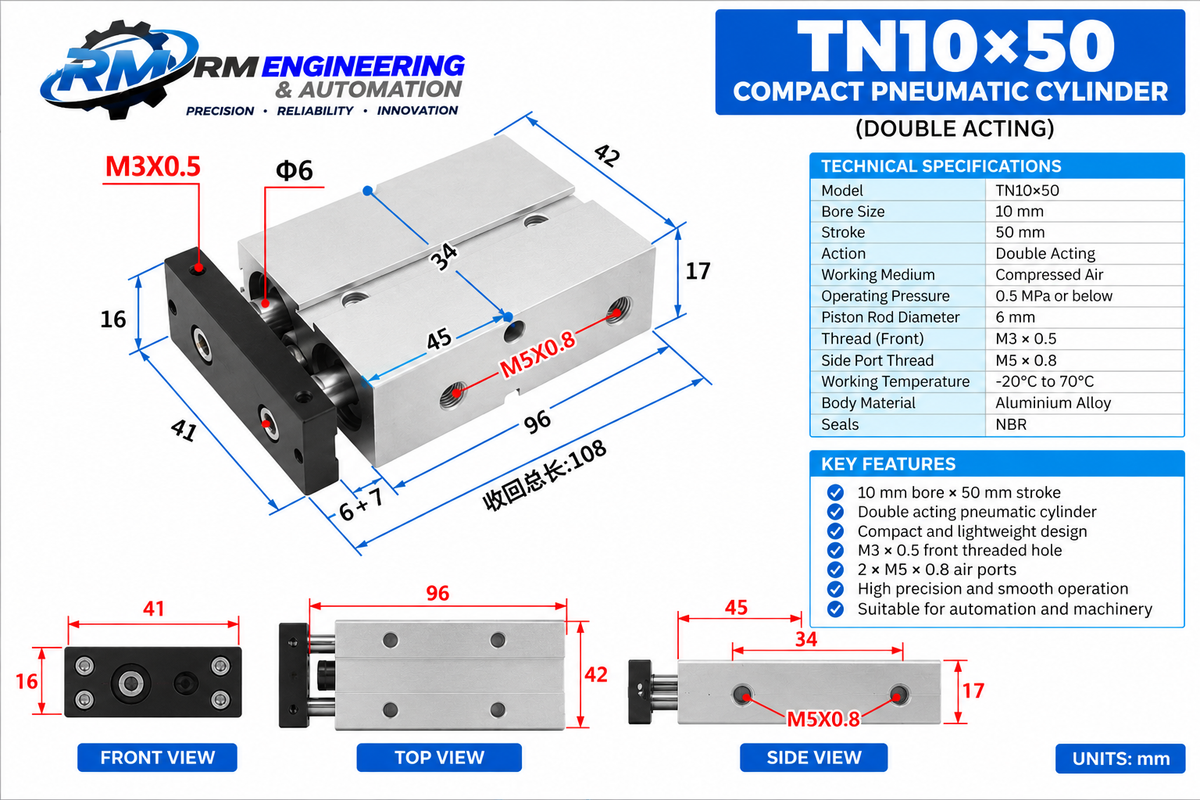

Note: Dimensions above are based on the TN10×50 reference image supplied. Verify critical dimensions on the actual product before fabrication or permanent machine installation.
