TN10×20 Twin-Rod Pneumatic Cylinder – 10mm Bore × 20mm Stroke – Double Acting

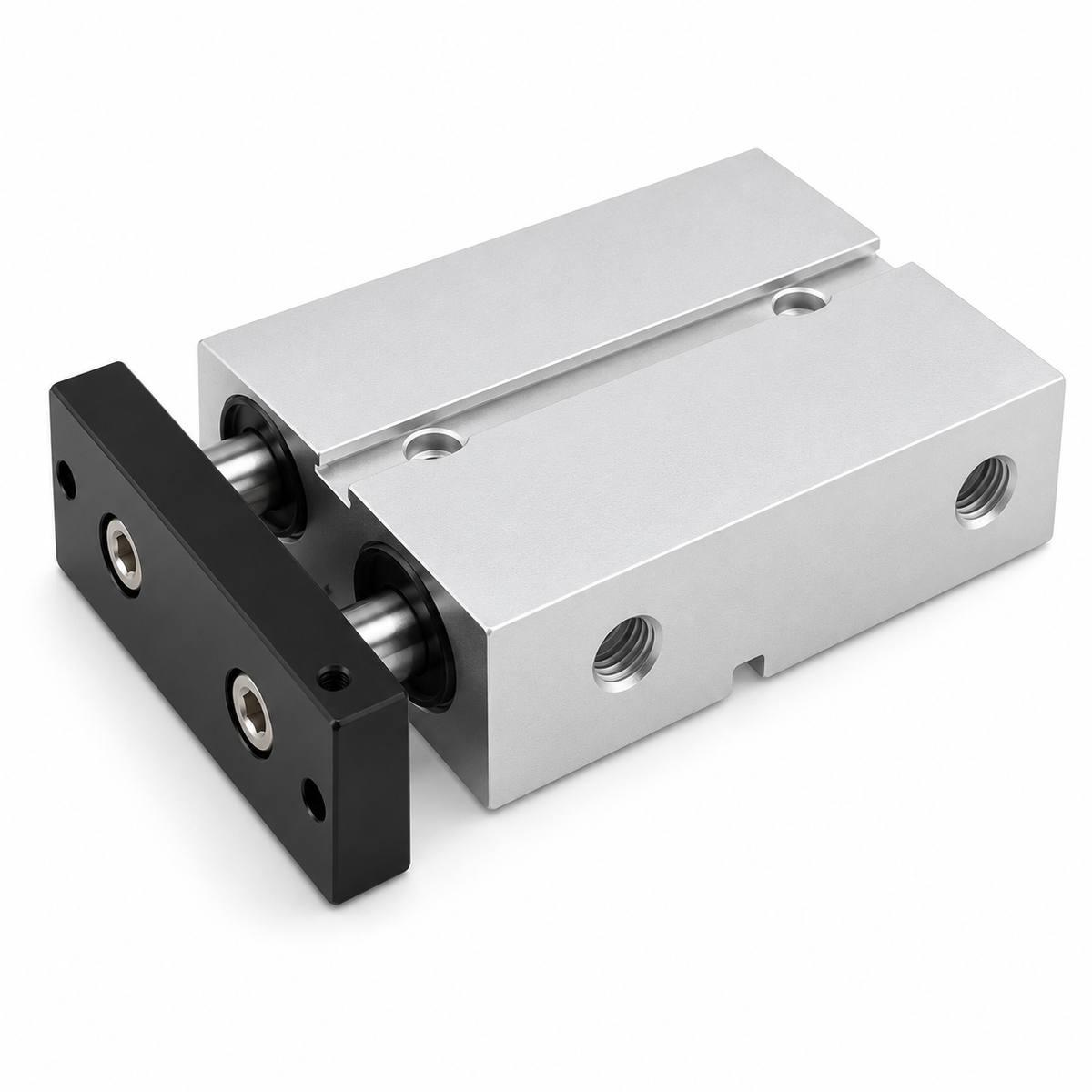

The TN10×20 Twin-Rod Pneumatic Cylinder is a compact, double-acting pneumatic actuator designed for precision positioning, automation machinery, small assembly equipment and applications where non-rotating linear movement is required.
Featuring a 10 mm bore, 20 mm stroke and two Ø6 mm guide rods, the twin-rod construction provides improved rigidity and resistance to rotation compared with a conventional single-rod cylinder. Its compact aluminium body makes it suitable for machinery where installation space is limited.

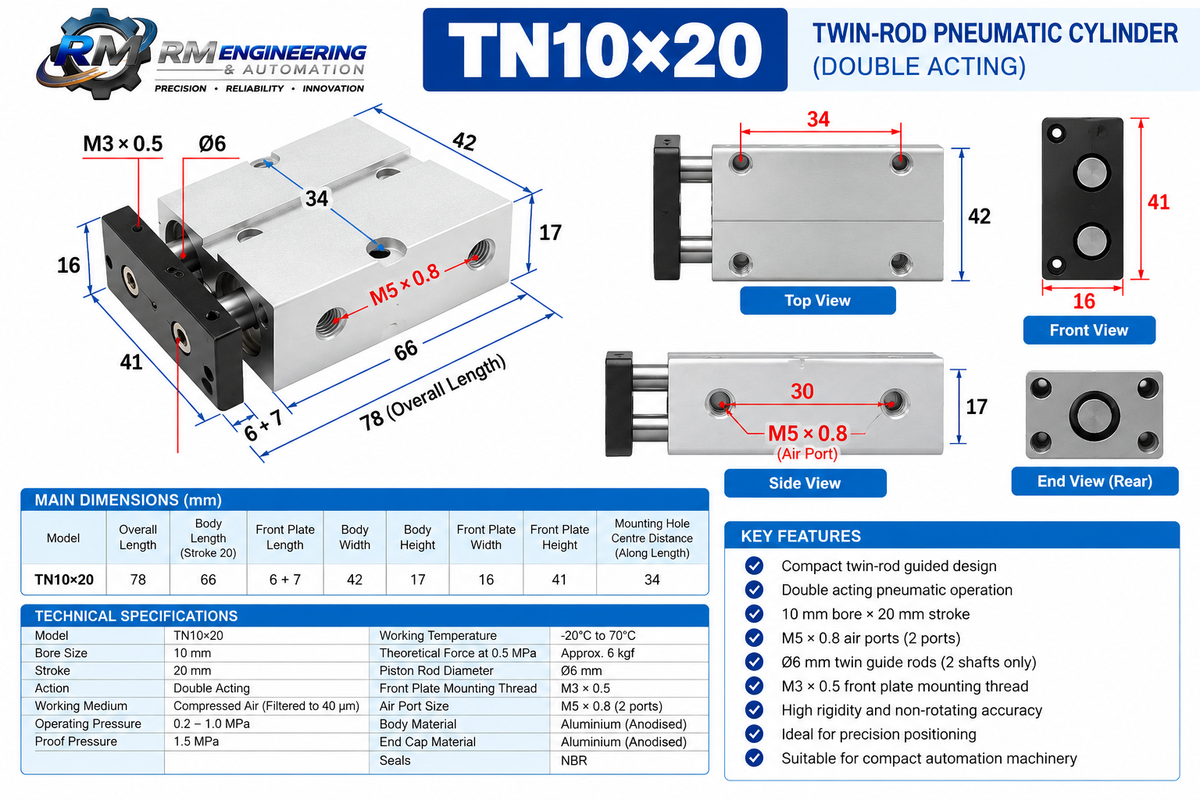

Technical Specifications
| Specification | Details |
|---|---|
| Model | TN10×20 |
| Series | TN Twin-Rod Series |
| Bore Size | 10 mm |
| Stroke | 20 mm |
| Action | Double Acting |
| Guide Rods | 2 × Ø6 mm |
| Working Medium | Compressed Air |
| Air Port Size | 2 × M5 × 0.8 |
| Front Plate Thread | M3 × 0.5 |
| Piston / Actuating Thread | M4 × 0.7 |
| Overall Length | Approx. 78 mm |
| Body Length | Approx. 66 mm |
| Body Width | Approx. 42 mm |
| Body Height | Approx. 17 mm |
| Front Plate Width | Approx. 41 mm |
| Front Plate Height | Approx. 16 mm |
| Mounting Hole Distance | Approx. 34 mm |
| Air Port Centre Distance | Approx. 30 mm |
| Theoretical Force at 0.5 MPa | Approx. 6 kgf |
Key Features
- Compact twin-rod guided design
- Exactly 2 × Ø6 mm guide rods
- 10 mm bore × 20 mm stroke
- Double-acting pneumatic operation
- Improved resistance to piston rotation
- High rigidity for precise positioning
- 2 × M5 × 0.8 air ports
- Compact anodised aluminium body
- Suitable for space-restricted automation equipment
- Ideal for repetitive positioning, pushing and clamping operations
Typical Applications
Suitable for industrial automation, compact machinery, pick-and-place equipment, component positioning, small clamping mechanisms, packaging machinery, assembly equipment and general pneumatic automation.
Note: Dimensions are based on the supplied TN10×20 reference. Verify critical dimensions before fabrication or permanent installation.
