TN10×100 Twin-Rod Pneumatic Cylinder – 10mm Bore × 100mm Stroke – Double Acting
TN10×100 Twin-Rod Pneumatic Cylinder – 10mm Bore × 100mm Stroke – Double Acting
Product Description
The TN10×100 Twin-Rod Pneumatic Cylinder is a compact double-acting pneumatic actuator designed for precision linear movement in industrial automation, packaging machinery, positioning systems and compact production equipment.
Featuring a 10 mm bore and 100 mm stroke, the TN10×100 uses two Ø6 mm guide rods to provide improved rigidity and resistance to rotation compared with a conventional single-rod cylinder. This makes it suitable for applications requiring stable, repeatable movement over a relatively long 100 mm travel distance while maintaining a compact body size.
Compressed air is used for both extension and retraction, providing controlled movement in both directions.
Technical Specifications
| Specification | Details |
|---|---|
| Model | TN10×100 |
| Series | TN Twin-Rod Series |
| Cylinder Type | Compact Twin-Rod Pneumatic Cylinder |
| Bore Size | 10 mm |
| Stroke | 100 mm |
| Action | Double Acting |
| Guide Rods | 2 × Ø6 mm |
| Working Medium | Compressed Air |
| Air Port Thread | M5 × 0.8 |
| Number of Air Ports | 2 |
| Front Plate Thread | M3 × 0.5 |
| Actuating / Piston Thread | M4 × 0.7 |
| Overall Retracted Length | Approx. 158 mm |
| Body Length | Approx. 146 mm |
| Body Width | Approx. 42 mm |
| Body Height | Approx. 17 mm |
| Front Plate Width | Approx. 41 mm |
| Front Plate Height | Approx. 16 mm |
| Mounting Hole Centre Distance | Approx. 34 mm |
| Air Port Centre Distance | Approx. 70 mm |
| Front Projection | Approx. 6 + 7 mm |
| Theoretical Thrust at 0.5 MPa | Approx. 6 kgf |
Key Features
- 10 mm bore × 100 mm stroke
- Exactly 2 × Ø6 mm guide rods
- Double-acting pneumatic operation
- Long 100 mm linear travel
- Compact twin-rod design
- Improved resistance to rotation
- Stable and repeatable linear movement
- 2 × M5 × 0.8 air ports
- M3 × 0.5 front plate thread
- M4 × 0.7 actuating thread
- Approx. 158 mm retracted overall length
- Aluminium body construction
- Suitable for compact automation machinery
Typical Applications
Suitable for industrial automation, packaging machinery, pick-and-place equipment, product positioning, compact clamping mechanisms, assembly machinery, sorting systems, small conveyor equipment, component transfer and general pneumatic machinery.
Double-Acting Operation
The TN10×100 uses two pneumatic ports. Compressed air supplied to one port causes the cylinder to extend, while air supplied to the opposite port causes it to retract.
A suitable directional or solenoid valve can be used to control movement, with flow-control fittings added where speed adjustment is required.

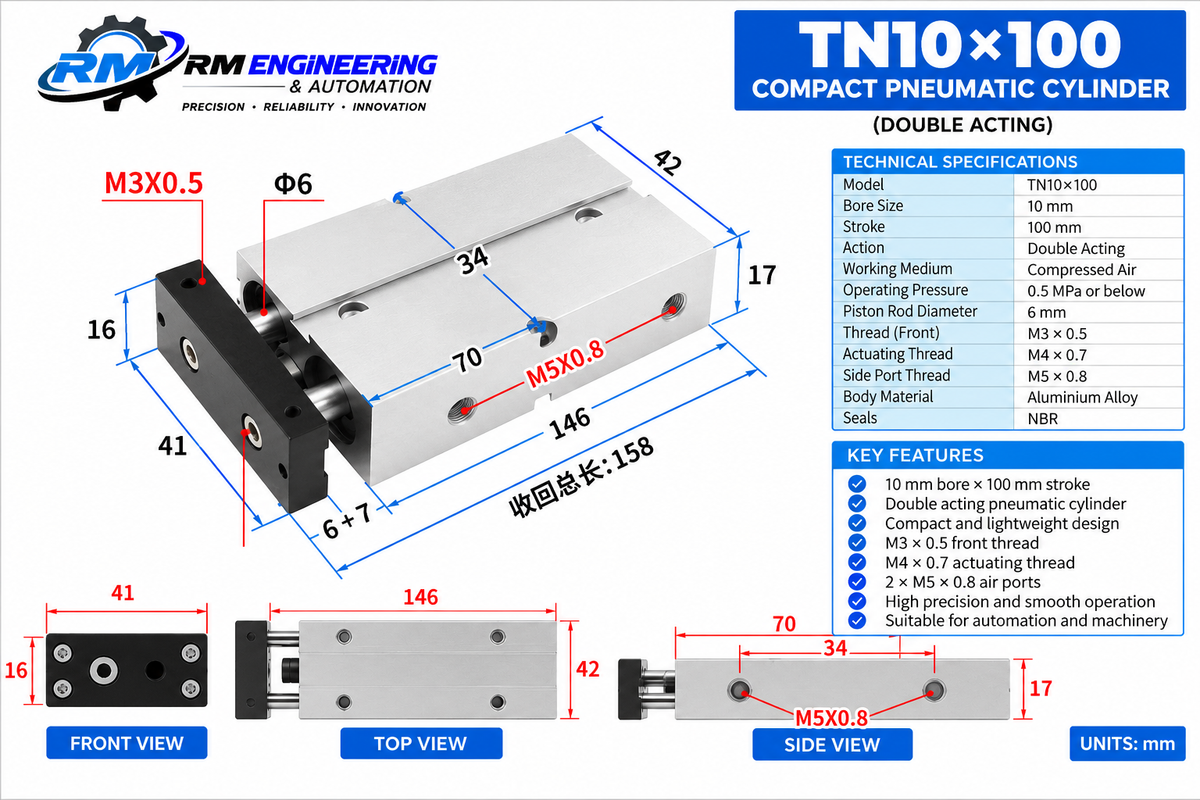

Note: Dimensions and specifications above are based on the supplied TN10×100 reference image. Verify critical dimensions on the actual product before fabrication or permanent machine installation.
