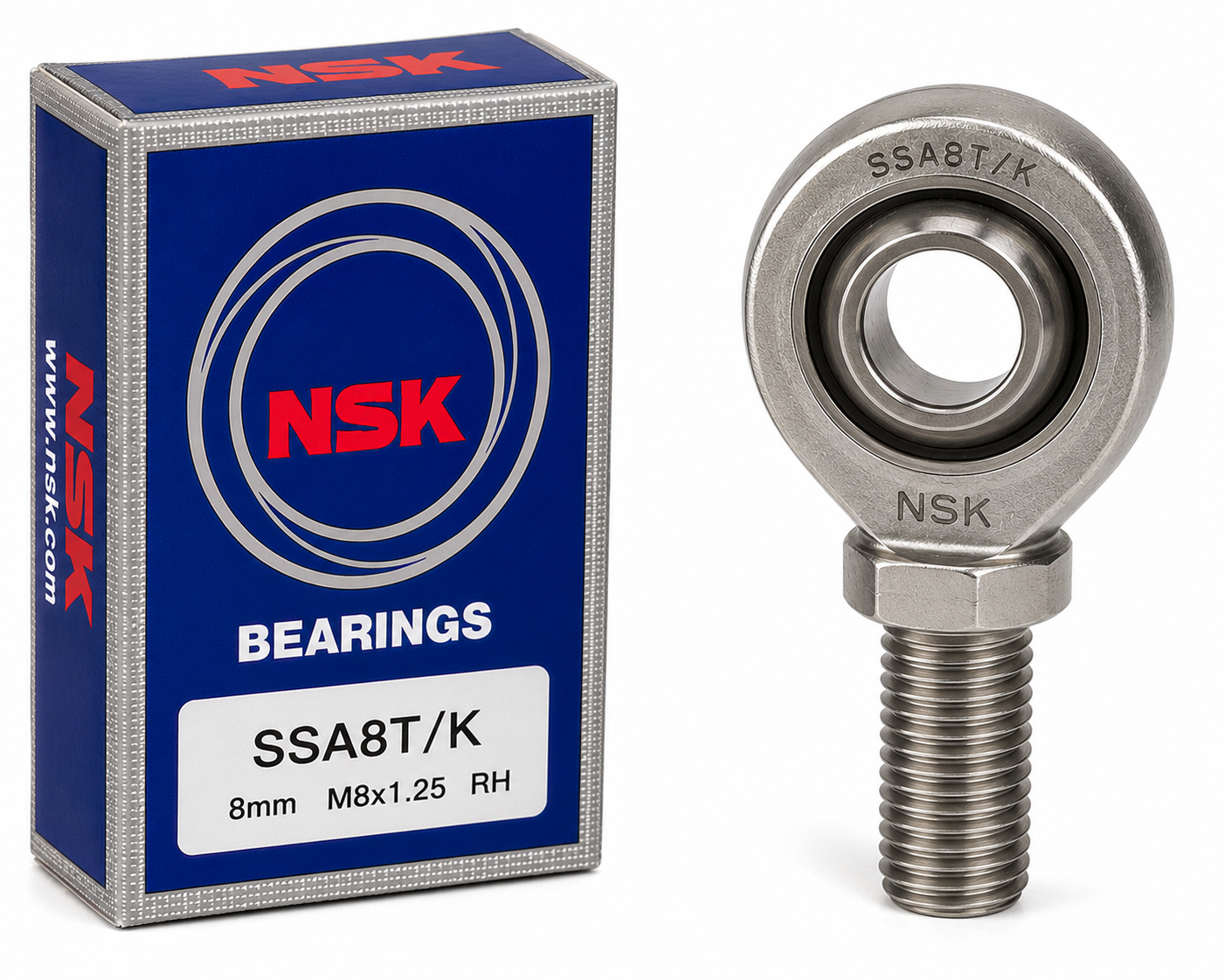

SSA8T/K Stainless Steel Male Rod End Bearing – 8 mm Bore, M8 × 1.25 RH Thread
Couldn't load pickup availability
The SSA8T/K is a corrosion-resistant stainless steel rod end bearing designed for smooth articulation, reliable load support, and long service life. It features a male right-hand thread and an 8 mm bore, making it suitable for mechanical linkages, motion assemblies, and adjustable connection points.
This rod end bearing is commonly used in automation equipment, hydraulic cylinders, engineering machinery, control linkages, fabrication projects, workshop machinery, and general industrial applications.
Specifications
| Specification | Details |
|---|---|
| Product Type | Male Rod End Bearing |
| Part Number | SSA8T/K |
| Bore / Inside Diameter | 8 mm |
| Thread Size | M8 × 1.25 |
| Thread Direction | Right-hand thread |
| Material | Stainless steel |
| Approx. Overall Size | 56 × 25 mm |
| Max. Angular Misalignment | Approx. 13° |
Key Features
- Stainless steel construction
- Male right-hand thread
- 8 mm bore size
- Corrosion-resistant design
- Suitable for mechanical linkages and motion control
- Commonly used in automation, machinery, hydraulic systems, and engineering applications
Note: I could verify SSA8T/K as a stainless steel male rod end bearing, but I could not confirm from the accessible results that this is an official NSK designation. Before publishing as NSK SSA8T/K, check the product packaging or supplier invoice. Third-party listings identify SSA8T/K as an 8 mm bore, M8 × 1.25 male right-hand rod end bearing
