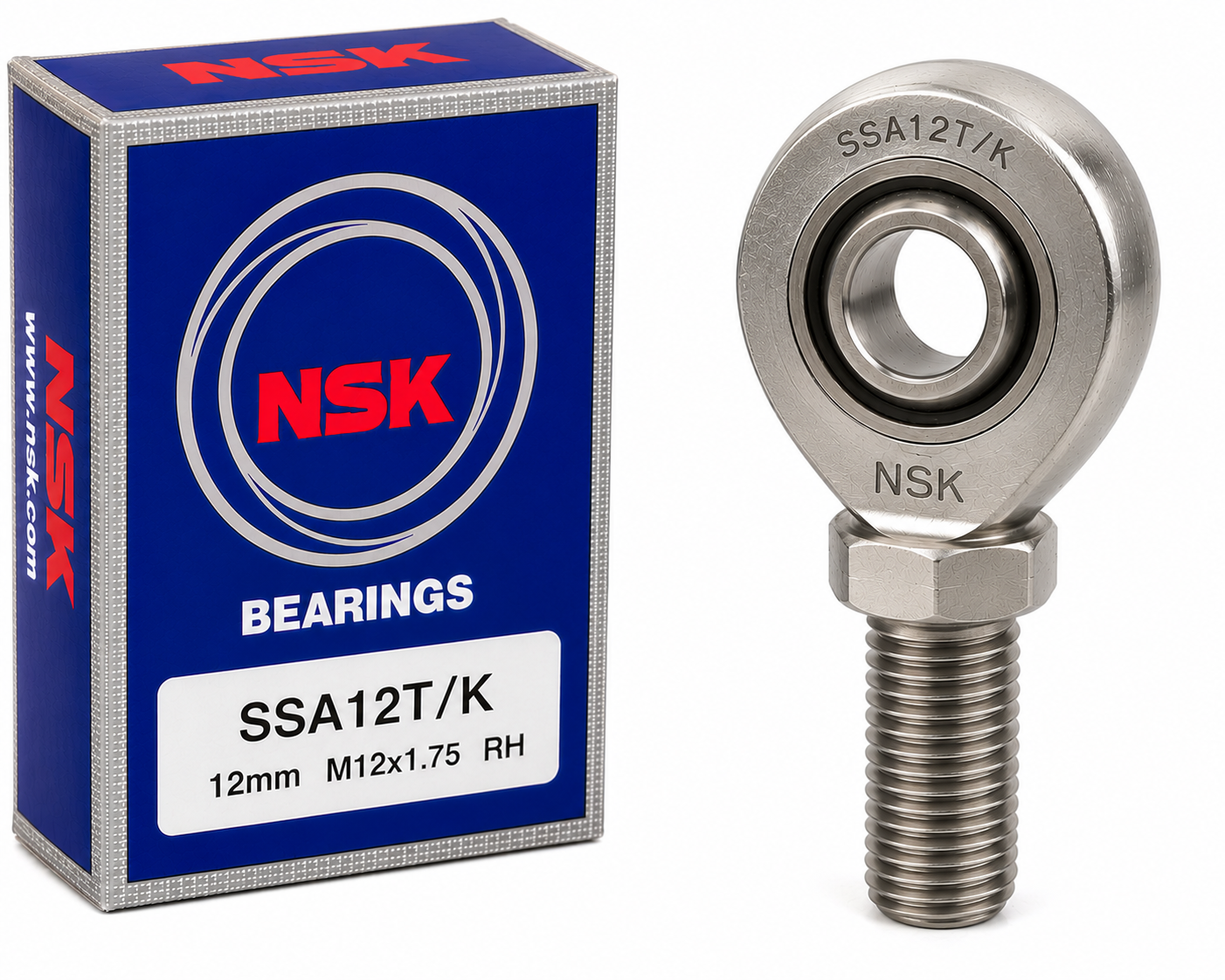

SSA12T/K Stainless Steel Male Rod End Bearing – 12 mm Bore, M12 RH Thread
Couldn't load pickup availability
High-quality SSA12T/K stainless steel male rod end bearing with a 12 mm bore and right-hand male thread. Suitable for linkages, control arms, automation equipment, machinery, hydraulic systems, fabrication, and general mechanical applications.
Website Description
The SSA12T/K is a corrosion-resistant stainless steel male rod end bearing designed for smooth articulation, reliable load support, and long service life. It features a 12 mm bore, male right-hand threaded shank, and a maintenance-free sliding contact design, making it suitable for mechanical linkages and adjustable connection points.
This rod end bearing is commonly used in automation equipment, hydraulic cylinders, control rods, machinery, agricultural equipment, workshop projects, fabrication work, and general industrial applications.
Specifications
| Specification | Details |
|---|---|
| Product Type | Male Rod End Bearing |
| Part Number | SSA12T/K |
| Bore / Inside Diameter | 12 mm |
| Thread Type | Male right-hand thread |
| Common Thread Size | M12 × 1.75 RH |
| Head Diameter | 32 mm |
| Ball Width | 16 mm |
| Housing Height | Approx. 70–71 mm |
| Material | Stainless steel |
| Sliding Contact | Steel / PTFE composite |
| Maintenance | Maintenance-free |
| Max. Angular Misalignment | Approx. 13° |
| Approx. Weight | 0.085 kg |
Key Features
- Stainless steel corrosion-resistant construction
- Male right-hand threaded shank
- 12 mm bore size
- Maintenance-free PTFE liner
- Smooth articulation for linkage applications
- Suitable for hydraulic, automation, machinery, and fabrication use
- Good option for harsh or damp environments
