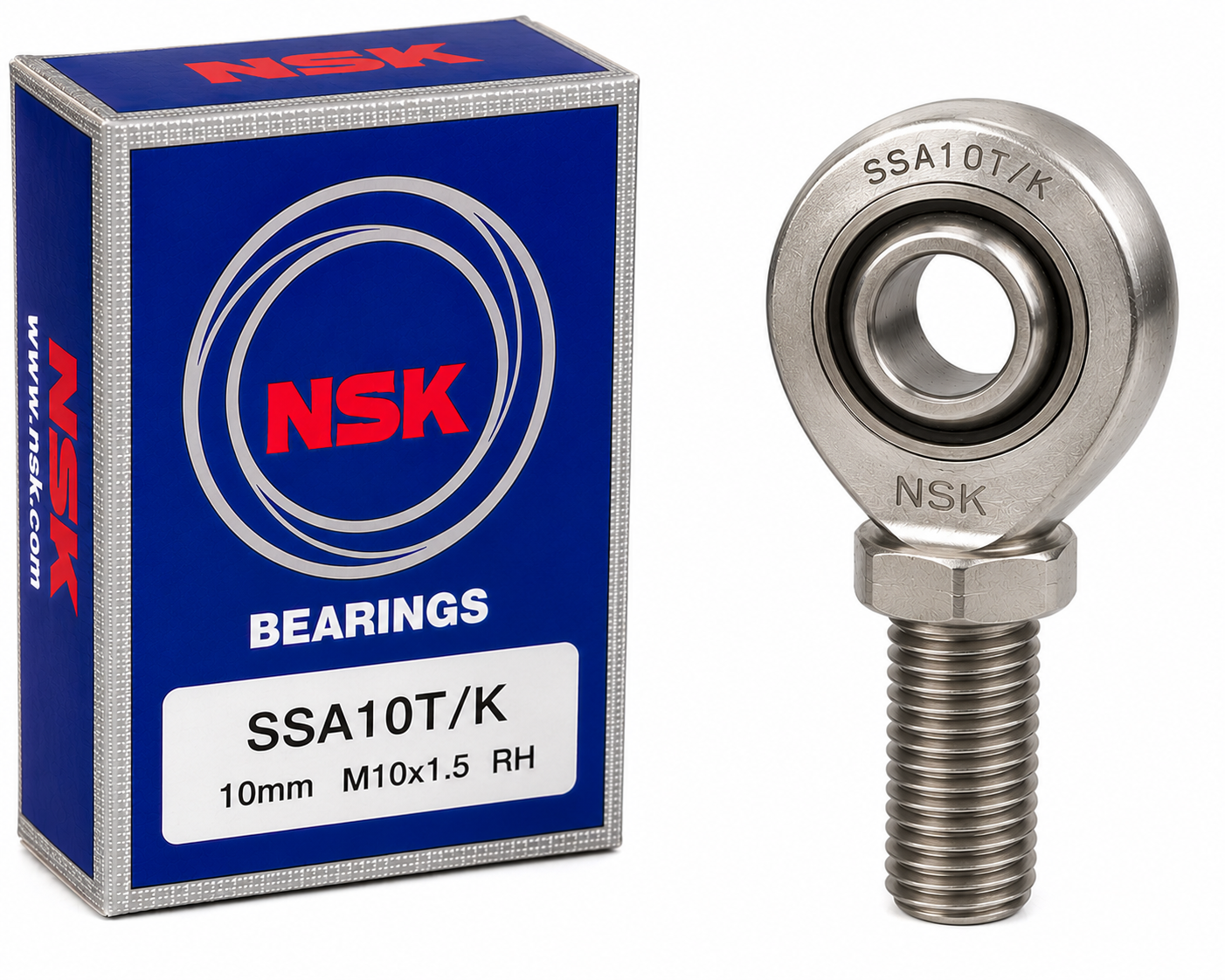

SSA10T/K Stainless Steel Male Rod End Bearing – 10 mm Bore, M10 × 1.5 RH Thread
Regular price
$12.40 AUD
Couldn't load pickup availability
The SSA10T/K is a corrosion-resistant stainless steel male rod end bearing designed for smooth articulation, reliable load support, and long service life. It features a 10 mm bore, M10 × 1.5 male right-hand thread, and a maintenance-free steel/PTFE sliding contact design.
This rod end bearing is commonly used in mechanical linkages, control rods, hydraulic cylinders, automation equipment, fabrication projects, workshop machinery, agricultural equipment, and general industrial applications.
Specifications
| Specification | Details |
|---|---|
| Product Type | Male Rod End Bearing |
| Part Number | SSA10T/K |
| Bore / Inside Diameter | 10 mm |
| Thread Size | M10 × 1.5 |
| Thread Direction | Right-hand thread |
| Head Diameter | 28 mm |
| Ball Width | 14 mm |
| Overall Housing Height | 62 mm |
| Thread Length | 28 mm |
| Material | Stainless steel |
| Sliding Contact | Steel / PTFE composite |
| Maintenance | Maintenance-free |
| Approx. Weight | 0.055 kg |
Key Features
- Stainless steel corrosion-resistant construction
- Male right-hand thread
- 10 mm bore size
- M10 × 1.5 thread
- Maintenance-free PTFE liner
- Smooth articulation for linkage applications
- Suitable for automation, machinery, hydraulic systems, and engineering projects
