SC80×50 Standard Pneumatic Air Cylinder – 80mm Bore × 50mm Stroke – Double Acting
The SC80×50 Standard Pneumatic Air Cylinder is a heavy-duty double-acting pneumatic actuator designed for industrial automation, conveyor systems, packaging machinery, clamping equipment, material handling and general pneumatic applications.
Featuring a large 80 mm bore and 50 mm stroke, the SC80×50 provides high output force with a compact short-stroke design. Its robust SC-series tie-rod construction offers excellent rigidity and durability for repetitive industrial operation.
The cylinder uses compressed air to control both extension and retraction, providing positive movement in both directions. With approximately 251 kgf theoretical extension force at 0.5 MPa, it is particularly suitable for applications requiring strong pushing, clamping, pressing or positioning force over a short travel distance.
Technical Specifications
| Specification | Details |
|---|---|
| Model | SC80×50 |
| Series | SC Series |
| Cylinder Type | Standard Tie-Rod Pneumatic Cylinder |
| Bore Size | 80 mm |
| Stroke | 50 mm |
| Action | Double Acting |
| Working Medium | Compressed Air |
| Operating Pressure | 0.15–1.0 MPa |
| Working Temperature | -20°C to 70°C |
| Piston Rod Thread | M20 × 1.5 |
| Air Port Size | PT3/8 (G3/8) |
| Number of Air Ports | 2 |
| Overall Length | Approx. 232 mm |
| Cylinder Body Length | Approx. 157 mm |
| Front Length | Approx. 40 mm |
| End Cover Length | Approx. 33 mm |
| End Profile | Approx. 94 × 94 mm |
| Mounting Hole Centre Distance | Approx. 70 mm |
| Mounting Holes | 4 × M10 |
| Theoretical Force at 0.5 MPa | Approx. 251 kgf |
Construction & Materials
- Cylinder Barrel: Aluminium
- End Covers: Aluminium
- Tie Rods: Steel
- Seals: NBR
- Heavy-duty external tie-rod construction
- Designed for repetitive industrial applications
Key Features
- 80 mm bore × 50 mm stroke
- Approx. 251 kgf theoretical extension force at 0.5 MPa
- Compact high-force short-stroke design
- Double-acting pneumatic operation
- Heavy-duty SC-series construction
- Durable aluminium cylinder body
- Strong external steel tie rods
- M20 × 1.5 piston rod thread
- 2 × PT3/8 (G3/8) air ports
- 4 × M10 mounting holes
- Approx. 94 × 94 mm end profile
- Smooth and repeatable linear operation
- Operating pressure up to 1.0 MPa
- Compatible with common pneumatic valves, fittings and flow controls
Typical Applications
The SC80×50 pneumatic cylinder is suitable for:
- Industrial automation
- Heavy-duty clamping
- Conveyor systems
- Packaging machinery
- Product positioning
- Pressing and pushing mechanisms
- Material handling equipment
- Assembly machinery
- Sorting equipment
- Production machinery
- Pick-and-place systems
- General pneumatic machinery
Double-Acting Operation
The SC80×50 incorporates two pneumatic ports. Compressed air supplied to one side of the piston causes the piston rod to extend, while compressed air supplied to the opposite side causes the rod to retract.
A suitable 5/2-way solenoid or directional valve can be used for control. Flow-control valves can also be installed to regulate extension and retraction speed.
Theoretical Output Force
At approximately 0.5 MPa operating pressure, the 80 mm bore cylinder provides approximately 251 kgf theoretical extension force.
Actual available force will be lower depending on air pressure, internal friction, piston rod area, load alignment and installation conditions. An appropriate engineering safety factor should be used when selecting the cylinder for a machine.
Installation Recommendations
Use clean, filtered compressed air and pneumatic tubing and fittings rated for the required system pressure.
Ensure that the cylinder is securely mounted and correctly aligned with the load. Excessive side loading on the piston rod should be avoided to reduce premature wear of the rod, seals and internal components.
For industrial machinery, confirm the required force, stroke, operating pressure, mounting arrangement and cycle rate before installation.

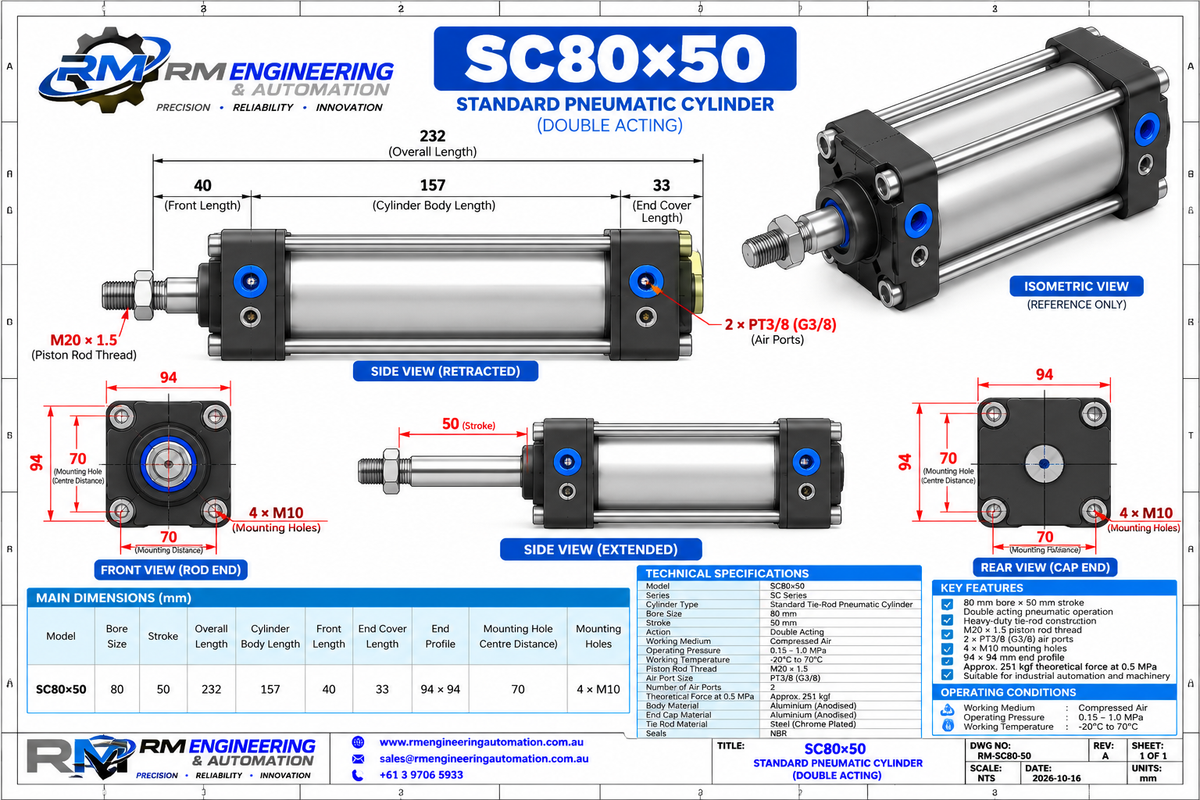

Note: Dimensions are based on the supplied SC80×50 reference product and technical drawing. Small variations may occur between manufacturing batches. Verify critical dimensions before fabrication or permanent installation.
