SC80×300 Standard Pneumatic Air Cylinder – 80mm Bore × 300mm Stroke – Double Acting
The SC80×300 Standard Pneumatic Air Cylinder is a heavy-duty double-acting pneumatic actuator designed for industrial automation, conveyor systems, packaging machinery, material handling equipment, clamping systems and general pneumatic applications.
Featuring an 80 mm bore and 300 mm stroke, the SC80×300 delivers high linear force with a long controlled travel distance. Its robust SC-series tie-rod construction combines a durable aluminium cylinder body, strong end covers and external steel tie rods for reliable operation in repetitive industrial environments.
The double-acting configuration uses compressed air for both extension and retraction, providing positive movement in both directions for pushing, pulling, positioning, clamping and automated machine functions.
Technical Specifications
| Specification | Details |
|---|---|
| Model | SC80×300 |
| Series | SC Series |
| Cylinder Type | Standard Tie-Rod Pneumatic Cylinder |
| Bore Size | 80 mm |
| Stroke | 300 mm |
| Action | Double Acting |
| Working Medium | Compressed Air |
| Operating Pressure | 0.15–1.0 MPa |
| Working Temperature | -20°C to 70°C |
| Piston Rod Thread | M20 × 1.5 |
| Air Port Size | 2 × PT3/8 (G3/8) |
| Overall Length | Approx. 482 mm |
| Cylinder Body Length | Approx. 407 mm |
| Front Length | Approx. 40 mm |
| End Cover Length | Approx. 33 mm |
| End Profile | Approx. 94 × 94 mm |
| Mounting Hole Centre Distance | Approx. 70 mm |
| Mounting Holes | 4 × M10 |
| Theoretical Force at 0.5 MPa | Approx. 251 kgf |
Key Features
- 80 mm bore × 300 mm stroke
- Long 300 mm linear travel
- Approx. 251 kgf theoretical extension force at 0.5 MPa
- Double-acting pneumatic operation
- Heavy-duty SC-series tie-rod construction
- Durable aluminium cylinder body
- Strong external steel tie rods
- Smooth extension and retraction
- M20 × 1.5 piston rod thread
- 2 × PT3/8 (G3/8) air ports
- 4 × M10 mounting holes
- Approx. 94 × 94 mm end profile
- Operating pressure up to 1.0 MPa
- Suitable for demanding industrial applications
Typical Applications
The SC80×300 is suitable for:
- Industrial automation
- Conveyor systems
- Packaging machinery
- Heavy-duty clamping
- Material handling equipment
- Product positioning
- Pushing and pulling mechanisms
- Assembly machinery
- Sorting equipment
- Pick-and-place systems
- Manufacturing equipment
- Production lines
- General pneumatic machinery
Double-Acting Operation
The SC80×300 uses two pneumatic air ports to control movement in both directions.
Compressed air supplied to one side of the piston causes the rod to extend, while air supplied to the opposite side causes it to retract.
A suitable directional or solenoid valve can be used to control the cylinder. Flow-control valves may also be installed to regulate extension and retraction speed.
Installation Recommendations
Use clean, filtered compressed air together with pneumatic tubing and fittings rated for the required operating pressure.
Ensure the cylinder is correctly aligned with the moving load and avoid excessive side loading on the piston rod. For machine design, confirm the required force, stroke, operating pressure, cycle rate and mounting arrangement before installation.

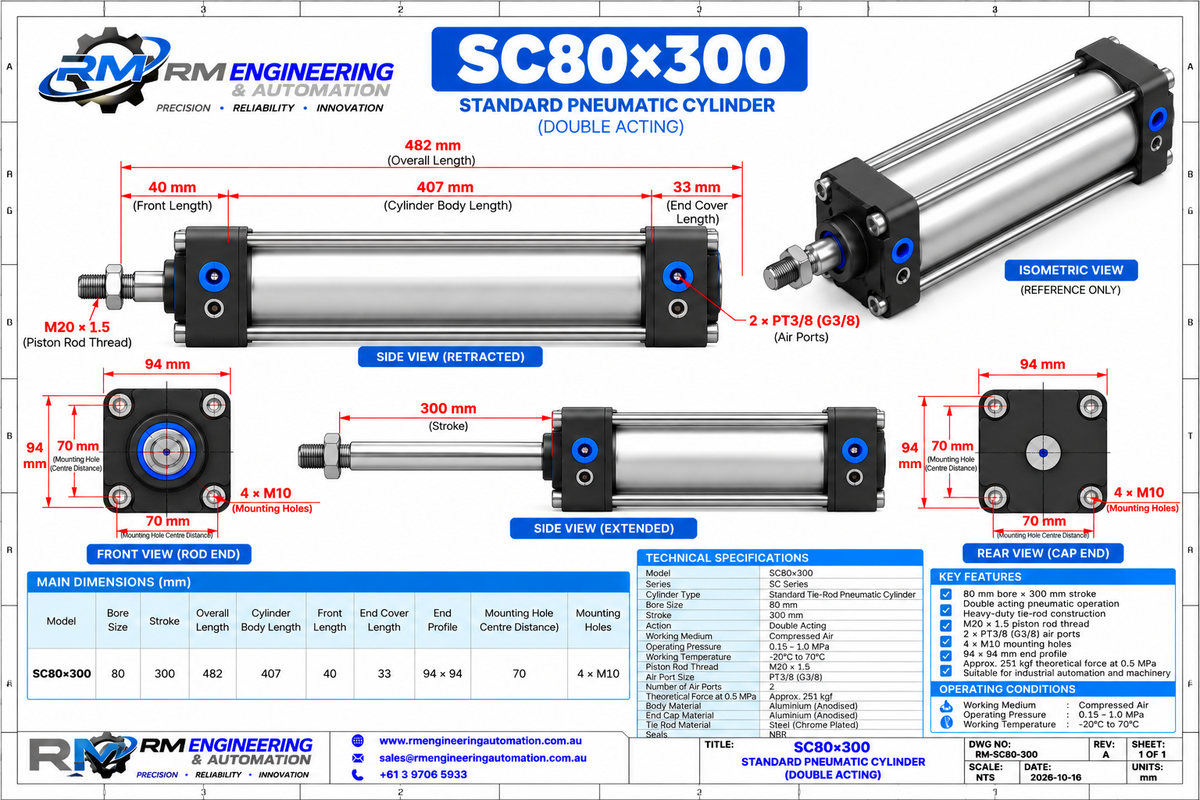

Note: Dimensions are based on the SC80×300 reference drawing and should be treated as reference dimensions. Verify critical dimensions before fabrication or permanent machine installation.
