SC80×100 Standard Pneumatic Air Cylinder – 80mm Bore × 100mm Stroke – Double Acting
The SC80×100 Standard Pneumatic Air Cylinder is a heavy-duty double-acting pneumatic actuator designed for industrial automation, conveyor systems, packaging machinery, material handling equipment, clamping systems and general pneumatic applications.
Featuring an 80 mm bore and 100 mm stroke, the SC80×100 provides high linear force with smooth and controlled movement. Its robust SC-series tie-rod construction combines an aluminium cylinder barrel, strong end covers and steel tie rods for reliable performance in repetitive industrial environments.
The double-acting design uses compressed air for both extension and retraction, making the cylinder suitable for pushing, pulling, positioning, clamping, lifting and automated machine operations.
Technical Specifications
| Specification | Details |
|---|---|
| Model | SC80×100 |
| Series | SC Series |
| Cylinder Type | Standard Tie-Rod Pneumatic Cylinder |
| Bore Size | 80 mm |
| Stroke | 100 mm |
| Action | Double Acting |
| Working Medium | Compressed Air |
| Operating Pressure | 0.15–1.0 MPa |
| Working Temperature | -20°C to 70°C |
| Piston Rod Thread | M20 × 1.5 |
| Air Port Size | 2 × PT3/8 (G3/8) |
| Overall Length | Approx. 282 mm |
| Cylinder Body Length | Approx. 207 mm |
| Front Length | Approx. 40 mm |
| End Cover Length | Approx. 33 mm |
| End Profile | Approx. 94 × 94 mm |
| Mounting Hole Centre Distance | Approx. 70 mm |
| Mounting Holes | 4 × M10 |
| Theoretical Force at 0.5 MPa | Approx. 251 kgf |
Key Features
- 80 mm bore × 100 mm stroke
- Approx. 251 kgf theoretical extension force at 0.5 MPa
- Double-acting pneumatic operation
- Heavy-duty SC-series tie-rod construction
- Durable aluminium cylinder body
- Strong external steel tie rods
- Smooth and repeatable extension and retraction
- M20 × 1.5 piston rod thread
- 2 × PT3/8 (G3/8) air ports
- 4 × M10 mounting holes
- Approx. 94 × 94 mm end profile
- Suitable for demanding industrial automation applications
- Compatible with common pneumatic fittings, solenoid valves and flow controls
Typical Applications
Suitable for:
- Industrial automation
- Conveyor systems
- Packaging machinery
- Heavy-duty clamping
- Product positioning
- Material handling equipment
- Pushing and pulling mechanisms
- Assembly machinery
- Sorting equipment
- Production lines
- Pick-and-place systems
- General pneumatic machinery
Double-Acting Operation
The SC80×100 has two pneumatic ports. Compressed air supplied to one side of the piston causes the rod to extend, while air supplied to the opposite side causes it to retract.
A suitable directional or solenoid valve can be used to control the cylinder, with flow-control valves fitted where speed adjustment is required.
Installation Notes
Use clean, filtered compressed air and pressure-rated pneumatic tubing and fittings. Ensure the cylinder is correctly aligned with the moving load and avoid excessive side loading on the piston rod.

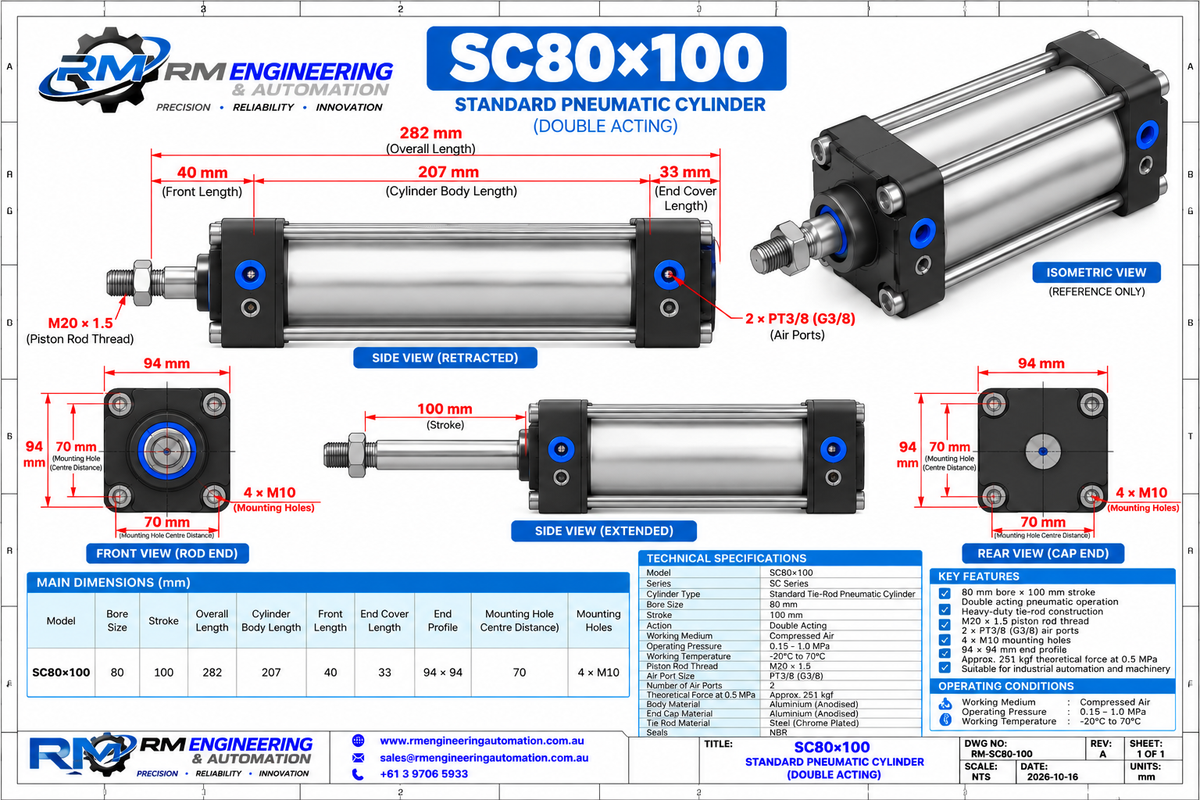

Note: Dimensions are based on the supplied SC80×100 reference drawing and should be treated as reference dimensions. Verify critical dimensions before fabrication or permanent machine installation.
