SC63×50 Standard Pneumatic Air Cylinder – 63mm Bore × 50mm Stroke – Double Acting
The SC63×50 Standard Pneumatic Air Cylinder is a heavy-duty, compact double-acting pneumatic actuator designed for industrial automation, conveyor systems, packaging machinery, clamping, positioning and general pneumatic applications.
Featuring a 63 mm bore and 50 mm stroke, the SC63×50 delivers high pneumatic force over a short, controlled travel distance. Its robust SC-series tie-rod construction combines an aluminium cylinder barrel, strong end covers and steel tie rods for reliable performance in repetitive industrial environments.
The cylinder uses compressed air through two PT3/8 (G3/8) ports to positively control both extension and retraction of the piston rod. This makes it suitable for applications requiring strong, repeatable pushing, pulling, clamping or positioning movement in a compact installation space.
Technical Specifications
| Specification | Details |
|---|---|
| Model | SC63×50 |
| Series | SC Series |
| Cylinder Type | Standard Tie-Rod Pneumatic Cylinder |
| Bore Size | 63 mm |
| Stroke | 50 mm |
| Action | Double Acting |
| Working Medium | Compressed Air |
| Operating Pressure | 0.15–1.0 MPa |
| Working Temperature | -20°C to 70°C |
| Piston Rod Thread | M16 × 1.5 |
| Air Port Size | 2 × PT3/8 (G3/8) |
| Overall Length | Approx. 203 mm |
| Cylinder Body Length | Approx. 146 mm |
| Front Length | Approx. 32 mm |
| End Cover Length | Approx. 27.5 mm |
| End Profile | Approx. 75 × 75 mm |
| Mounting Hole Centre Distance | Approx. 56 mm |
| Mounting Holes | 4 × M8 |
| Theoretical Force at 0.5 MPa | Approx. 156 kgf |
Construction
- Cylinder Body: Aluminium
- End Caps: Aluminium
- Tie Rods: Steel
- Seals: NBR
- Heavy-duty SC-series tie-rod design
- Suitable for repetitive industrial operation
Key Features
- 63 mm bore × 50 mm stroke
- Compact short-stroke design
- Double-acting pneumatic operation
- Approx. 156 kgf theoretical extension force at 0.5 MPa
- Heavy-duty tie-rod construction
- M16 × 1.5 piston rod thread
- 2 × PT3/8 (G3/8) air ports
- 4 × M8 mounting holes
- Approx. 75 × 75 mm end profile
- Smooth and repeatable extension and retraction
- Suitable for industrial automation and machinery
- Compatible with common pneumatic solenoid valves, fittings and flow-control valves
Typical Applications
The SC63×50 is suitable for:
- Industrial automation
- Conveyor systems
- Packaging machinery
- Clamping equipment
- Product positioning
- Pick-and-place systems
- Pushing and pulling mechanisms
- Assembly machinery
- Material handling equipment
- Sorting machinery
- Production equipment
- General pneumatic systems
Double-Acting Operation
The SC63×50 has two pneumatic ports. Compressed air supplied to one side of the piston causes the rod to extend, while compressed air supplied to the opposite side causes it to retract.
A suitable directional or solenoid valve can be used to control cylinder movement. Flow-control valves may also be installed to regulate extension and retraction speed.
Installation Notes
Use clean, filtered compressed air and pneumatic tubing and fittings rated for the required operating pressure. Ensure the cylinder is correctly aligned with the load and avoid excessive side loading on the piston rod.

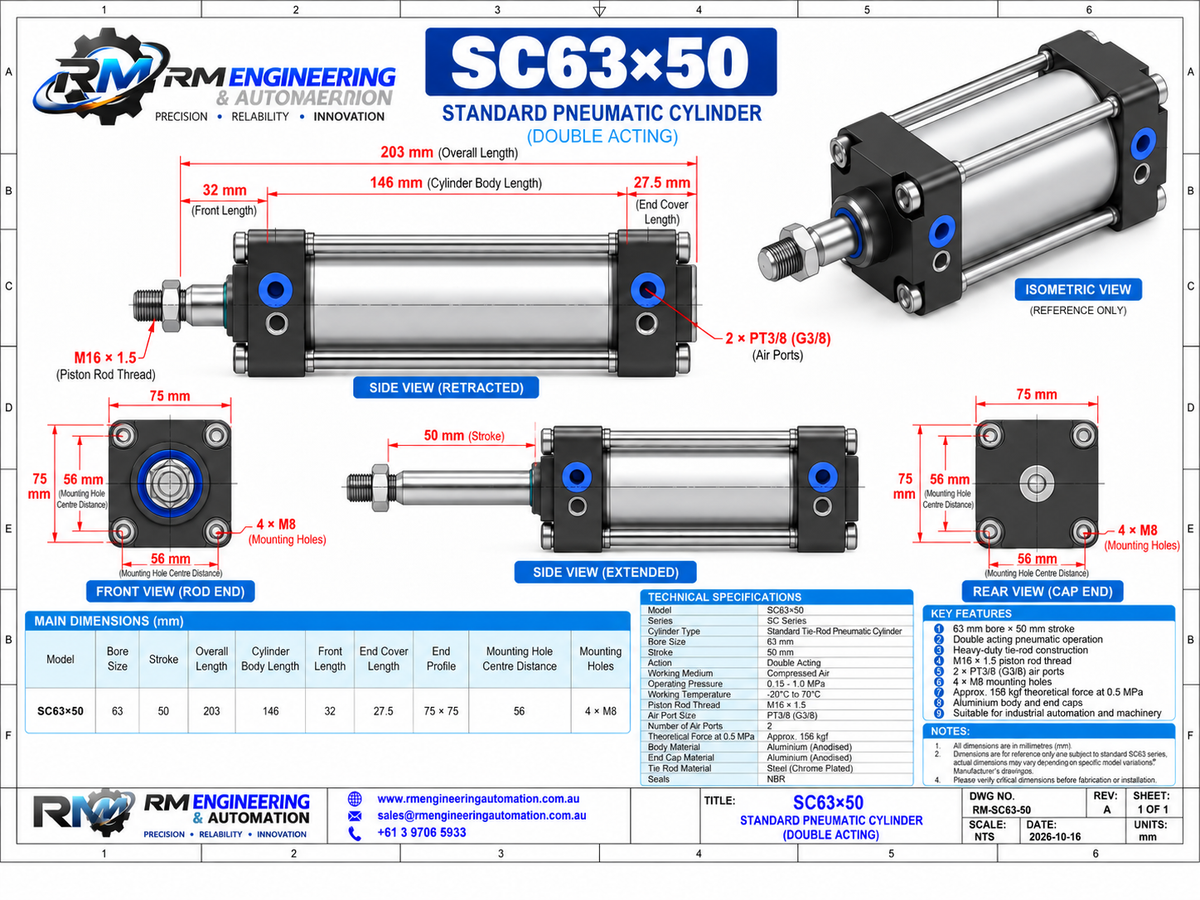

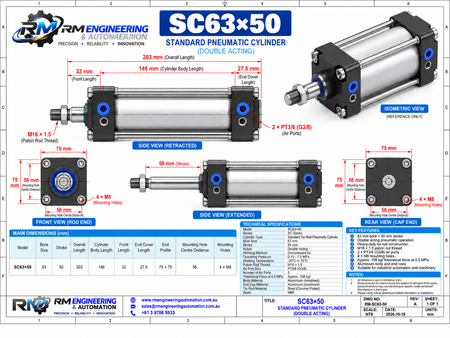

Note: Dimensions are based on the supplied SC63×50 reference drawing. Verify critical dimensions before fabrication, replacement or permanent machine installation.
