SC50×50 Standard Pneumatic Air Cylinder – 50mm Bore × 50mm Stroke – Double Acting
The SC50×50 Standard Pneumatic Air Cylinder is a compact, heavy-duty double-acting pneumatic actuator designed for industrial automation, conveyor systems, packaging machinery, assembly equipment and general pneumatic applications.
Featuring a 50 mm bore and 50 mm stroke, the SC50×50 delivers strong linear force while maintaining a relatively short overall length. Its robust SC-series tie-rod construction combines an aluminium cylinder barrel, rigid end covers and high-strength external tie rods for reliable operation in industrial environments.
The cylinder uses compressed air for both extension and retraction, providing positive control in both directions for pushing, pulling, clamping, positioning and repetitive machine movements.
Technical Specifications
| Specification | Details |
|---|---|
| Model | SC50×50 |
| Series | SC Series |
| Cylinder Type | Standard Pneumatic Air Cylinder |
| Bore Size | 50 mm |
| Stroke | 50 mm |
| Action | Double Acting |
| Working Medium | Compressed Air |
| Operating Pressure | 0.15–1.0 MPa |
| Working Temperature | -20°C to 70°C |
| Piston Rod Thread | M16 × 1.5 |
| Air Port Size | PT1/4 |
| Number of Air Ports | 2 |
| Overall Length | Approx. 200 mm |
| Cylinder Body Length | Approx. 143 mm |
| Front Length | Approx. 32 mm |
| End Cover Length | Approx. 27.5 mm |
| Tie-Rod / Mounting Hole Centre Distance | Approx. 47 mm |
| Body Width | Approx. 62 mm |
| Body Height | Approx. 62 mm |
Key Features
- 50 mm bore × 50 mm stroke
- Compact short-stroke design
- Double-acting pneumatic operation
- Strong SC-series tie-rod construction
- Durable aluminium barrel
- High-strength external tie rods
- Smooth extension and retraction
- M16 × 1.5 piston rod thread
- 2 × PT1/4 air ports
- Approx. 62 × 62 mm end profile
- Suitable for repetitive industrial use
- Compatible with common pneumatic valves, fittings and flow-control valves
Typical Applications
Suitable for:
- Industrial automation
- Conveyor systems
- Packaging machinery
- Clamping mechanisms
- Product positioning
- Pick-and-place equipment
- Assembly machinery
- Sorting equipment
- Material handling
- Production machinery
- Pushing and pulling mechanisms
- General pneumatic systems
Double-Acting Operation
The SC50×50 has two pneumatic ports. Compressed air supplied to one port causes the piston rod to extend, while air supplied to the opposite port causes it to retract.
A suitable directional or solenoid valve can be used to control the cylinder, while flow-control valves can be added to regulate extension and retraction speed.
Installation Notes
Use clean, filtered compressed air and suitable pressure-rated pneumatic tubing and fittings. Keep the cylinder properly aligned with the load and avoid excessive side loading on the piston rod.

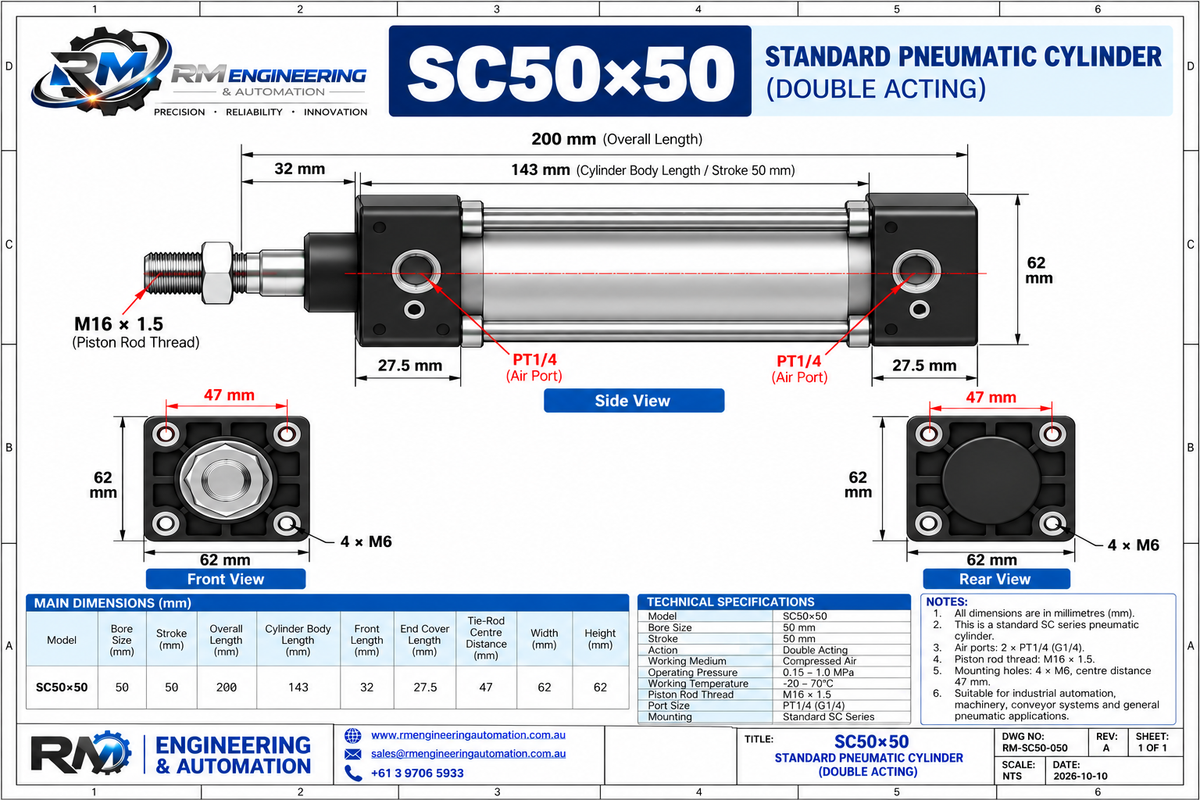

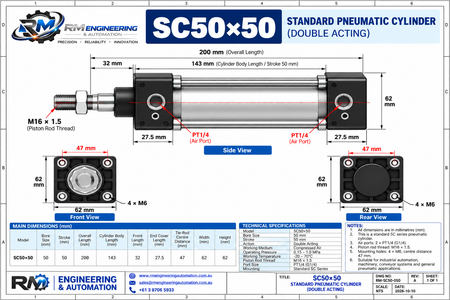

Note: Dimensions are based on the SC50×50 technical drawing shown and should be treated as reference dimensions. Small variations may occur between manufacturers or production batches. Verify critical dimensions before fabrication or permanent installation.
