SC50×200 Standard Pneumatic Air Cylinder – 50mm Bore × 200mm Stroke – Double Acting
The SC50×200 Standard Pneumatic Air Cylinder is a robust double-acting pneumatic actuator designed for industrial automation, conveyor systems, packaging machinery, assembly equipment and general pneumatic applications.
Featuring a 50 mm bore and 200 mm stroke, the SC50×200 provides strong and controlled linear movement using compressed air. Its SC-series tie-rod construction combines a durable aluminium cylinder barrel, rigid end covers and high-strength external tie rods for dependable operation in industrial environments.
The double-acting design uses compressed air for both extension and retraction, making the cylinder suitable for repetitive pushing, pulling, positioning, clamping and material-handling applications.
Technical Specifications
| Specification | Details |
|---|---|
| Model | SC50×200 |
| Series | SC Series |
| Cylinder Type | Standard Pneumatic Air Cylinder |
| Bore Size | 50 mm |
| Stroke | 200 mm |
| Action | Double Acting |
| Working Medium | Compressed Air |
| Operating Pressure | 0.15–1.0 MPa |
| Working Temperature | -20°C to 70°C |
| Piston Rod Thread | M16 × 1.5 |
| Air Port Size | PT1/4 |
| Number of Air Ports | 2 |

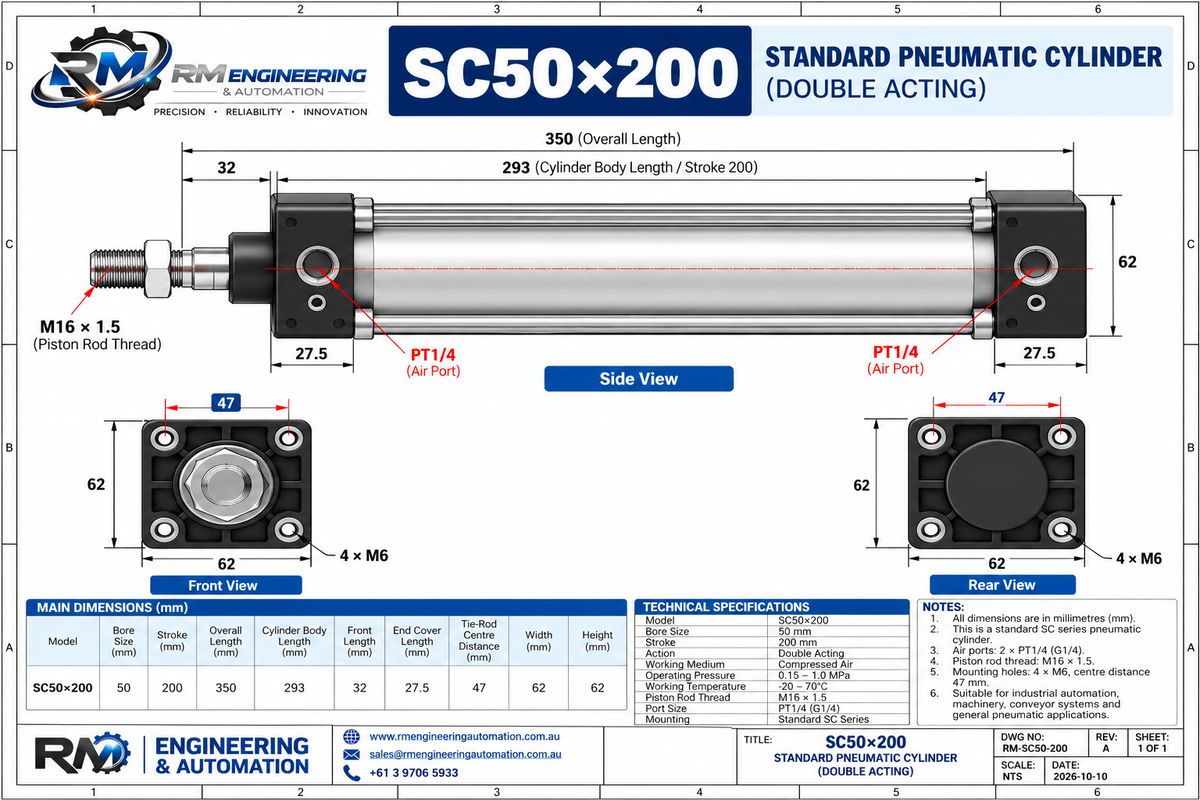

| Overall Length | Approx. 350 mm |
| Cylinder Body Length | Approx. 293 mm |
| Front Length | Approx. 32 mm |
| End Cover Length | Approx. 27.5 mm |
| Mounting / Tie-Rod Centre Distance | Approx. 47 mm |
| Body Width | Approx. 62 mm |
| Body Height | Approx. 62 mm |
Key Features
- 50 mm bore × 200 mm stroke
- Double-acting pneumatic operation
- Heavy-duty SC-series tie-rod construction
- Durable aluminium cylinder barrel
- High-strength external tie rods
- Smooth and reliable extension and retraction
- M16 × 1.5 piston rod thread
- 2 × PT1/4 air ports
- Approx. 62 × 62 mm end profile
- Long 200 mm linear travel
- Suitable for repetitive industrial use
- Compatible with standard pneumatic fittings, solenoid valves and flow-control valves
Typical Applications
Suitable for industrial automation, conveyor systems, packaging machinery, clamping equipment, pick-and-place systems, product positioning, pushing and pulling mechanisms, assembly machinery, sorting systems, material-handling equipment, production lines and general pneumatic machinery.
Double-Acting Operation
The SC50×200 uses compressed air to control movement in both directions. Air supplied to one port causes the piston rod to extend, while air supplied to the opposite port causes it to retract.
A suitable directional or solenoid valve can be used to control operation, while flow-control valves can regulate extension and retraction speed.
Installation Notes
Use clean, filtered compressed air and suitable pressure-rated pneumatic tubing and fittings. Keep the cylinder correctly aligned with the load and avoid excessive side loading on the piston rod.
For critical machinery installations, verify mounting dimensions, thread sizes and port specifications before fabrication.
Note: Dimensions listed above are reference dimensions for the SC50×200 configuration shown and may vary slightly between manufacturers or production batches.
