SC40×50 Standard Pneumatic Air Cylinder – 40mm Bore × 50mm Stroke – Double Acting
The SC40×50 Standard Pneumatic Air Cylinder is a compact and durable double-acting pneumatic actuator designed for industrial automation, conveyor systems, packaging equipment, manufacturing machinery and general pneumatic applications.
Featuring a 40 mm bore and 50 mm stroke, the SC40×50 provides smooth, controlled linear movement while maintaining a relatively compact overall size. Its robust SC-series tie-rod construction uses a durable aluminium cylinder barrel, rigid end covers and external tie rods for reliable operation in industrial environments.
The double-acting design uses compressed air to control both extension and retraction of the piston rod, making it suitable for repetitive pushing, pulling, clamping, positioning and machine automation applications.
Technical Specifications
| Specification | Details |
|---|---|
| Model | SC40×50 |
| Series | SC Series |
| Cylinder Type | Standard Pneumatic Air Cylinder |
| Bore Size | 40 mm |
| Stroke | 50 mm |
| Action | Double Acting |
| Working Medium | Compressed Air |
| Operating Pressure | 0.15–1.0 MPa |
| Working Temperature | -20°C to 70°C |
| Piston Rod Thread | M12 × 1.25 |
| Air Port Size | PT1/4 |
| Number of Air Ports | 2 |

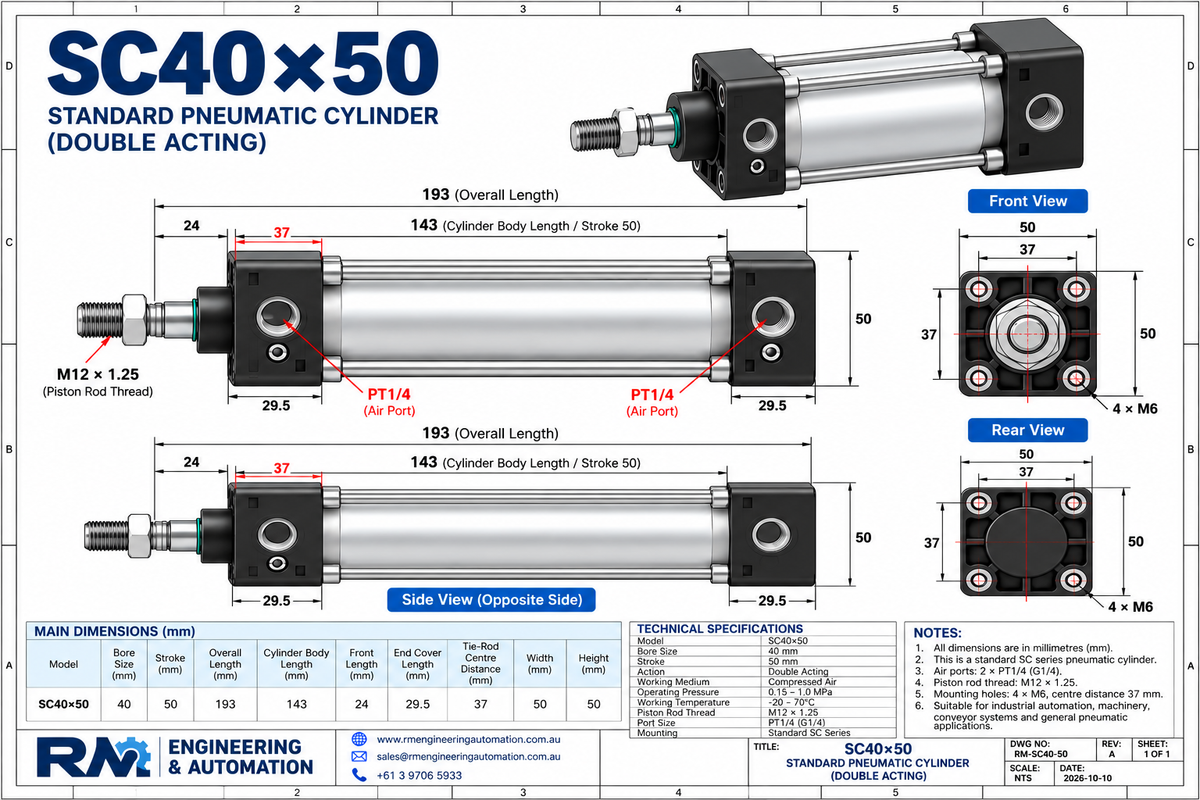

| Overall Length | Approx. 193 mm |
| Cylinder Body Length | Approx. 143 mm |
| Front Length | Approx. 24 mm |
| End Cover Length | Approx. 29.5 mm |
| Tie-Rod / Mounting Hole Centre Distance | Approx. 37 mm |
| Body Width | Approx. 50 mm |
| Body Height | Approx. 50 mm |
Key Features
- 40 mm bore × 50 mm stroke
- Compact 50 mm linear travel
- Double-acting pneumatic operation
- Strong SC-series tie-rod construction
- Durable aluminium cylinder barrel
- High-strength external tie rods
- Smooth extension and retraction
- M12 × 1.25 piston rod thread
- 2 × PT1/4 air ports
- Approx. 50 × 50 mm end profile
- Suitable for repetitive industrial applications
- Compatible with common pneumatic valves, fittings and flow controls
- Suitable for both new machinery and replacement applications
Typical Applications
The SC40×50 pneumatic cylinder is suitable for:
- Industrial automation
- Conveyor systems
- Packaging machinery
- Product positioning
- Clamping mechanisms
- Pick-and-place equipment
- Pushing and pulling applications
- Assembly equipment
- Sorting machinery
- Material handling systems
- Production machinery
- General pneumatic equipment
Double-Acting Operation
The SC40×50 contains two pneumatic ports, allowing compressed air to control the piston in both directions.
Compressed air supplied to one port causes the piston rod to extend. Supplying air to the opposite port causes the piston rod to retract.
A suitable directional control valve or solenoid valve can be used to control the cylinder, while pneumatic flow-control valves can be fitted to adjust extension and retraction speed.
Theoretical Output Force
With a 40 mm bore, the cylinder provides approximately 62.8 kgf theoretical extension force at 0.5 MPa operating pressure.
Actual available force will be lower depending on operating pressure, friction, piston rod area, load conditions and installation alignment.
Installation Recommendations
For reliable operation:
- Use clean and filtered compressed air.
- Select pneumatic tubing and fittings suitable for the operating pressure.
- Use flow-control valves where speed adjustment is required.
- Keep the piston rod correctly aligned with the load.
- Avoid excessive radial or side loading on the piston rod.
- Select appropriate cylinder mounting brackets for the application.
- Confirm the required force and operating pressure before installation.
Important: The dimensions above are reference dimensions for the SC40×50 configuration shown. Dimensions, threads and fittings may vary slightly between manufacturers or production batches. Verify critical dimensions before fabrication, replacement or permanent installation.
Short Product Description
SC40×50 double-acting pneumatic air cylinder featuring a 40mm bore and 50mm stroke. Durable SC-series tie-rod construction with PT1/4 air ports and M12 × 1.25 piston rod thread. Ideal for industrial automation, conveyors, packaging machinery, clamping, positioning and general pneumatic applications.
