SC40×300 Standard Pneumatic Air Cylinder – 40mm Bore × 300mm Stroke – Double Acting
The SC40×300 Standard Pneumatic Air Cylinder is a durable double-acting pneumatic actuator designed for industrial automation, conveyor systems, packaging machinery, assembly equipment and general pneumatic applications.
Featuring a 40 mm bore and 300 mm stroke, this cylinder provides long, smooth and controlled linear movement using compressed air. The SC-series tie-rod construction combines a strong aluminium barrel, rigid end covers and external tie rods for reliable operation in industrial environments.
The double-acting design uses compressed air for both extension and retraction, making the SC40×300 suitable for pushing, pulling, positioning, clamping and repetitive automation tasks.
Technical Specifications
| Specification | Details |
|---|---|
| Model | SC40×300 |
| Series | SC Series |
| Cylinder Type | Standard Pneumatic Air Cylinder |
| Bore Size | 40 mm |
| Stroke | 300 mm |
| Action | Double Acting |
| Working Medium | Compressed Air |
| Operating Pressure | 0.15–1.0 MPa |
| Working Temperature | -20°C to 70°C |
| Piston Rod Thread | M12 × 1.25 |
| Air Port Size | PT1/4 |
| Number of Air Ports | 2 |
| Overall Length | Approx. 443 mm |
| Cylinder Body Length | Approx. 393 mm |
| Front Length | Approx. 24 mm |
| End Cover Length | Approx. 29.5 mm |
| Tie-Rod / Hole Centre Distance | Approx. 37 mm |
| Body Width | Approx. 50 mm |
| Body Height | Approx. 50 mm |
Key Features
- 40 mm bore × 300 mm stroke
- Long 300 mm linear travel
- Double-acting pneumatic operation
- Heavy-duty SC-series tie-rod construction
- Durable aluminium cylinder barrel
- High-strength external tie rods
- Smooth extension and retraction
- M12 × 1.25 piston rod thread
- 2 × PT1/4 pneumatic air ports
- Approx. 50 × 50 mm end profile
- Suitable for repetitive industrial operation
- Compatible with common pneumatic fittings, valves and flow controls
Common Applications
Suitable for:
- Industrial automation
- Conveyor systems
- Packaging machinery
- Assembly equipment
- Pick-and-place systems
- Product positioning
- Clamping equipment
- Pushing and pulling mechanisms
- Sorting machinery
- Material handling systems
- Manufacturing equipment
- Production lines
- General pneumatic machinery
Double-Acting Operation
The SC40×300 has two pneumatic ports. Compressed air supplied to one side of the piston causes the piston rod to extend, while supplying air to the opposite side causes the rod to retract.
A suitable directional or solenoid valve can be used to control cylinder movement, while flow-control valves can be installed to regulate extension and retraction speed.
Theoretical Force
With a 40 mm bore, the cylinder can provide approximately 62–64 kgf theoretical extension force at 0.5 MPa.
Actual usable force will vary depending on air pressure, friction, load, piston rod area and installation conditions.
Installation Recommendations
Use clean, filtered compressed air and pneumatic tubing and fittings rated for the required operating pressure. Ensure the cylinder is correctly aligned with the load and avoid excessive side loading on the piston rod.
For applications requiring controlled movement, install suitable flow-control valves. Select appropriate mounting brackets and confirm that the cylinder force and stroke are suitable for the machinery before installation.

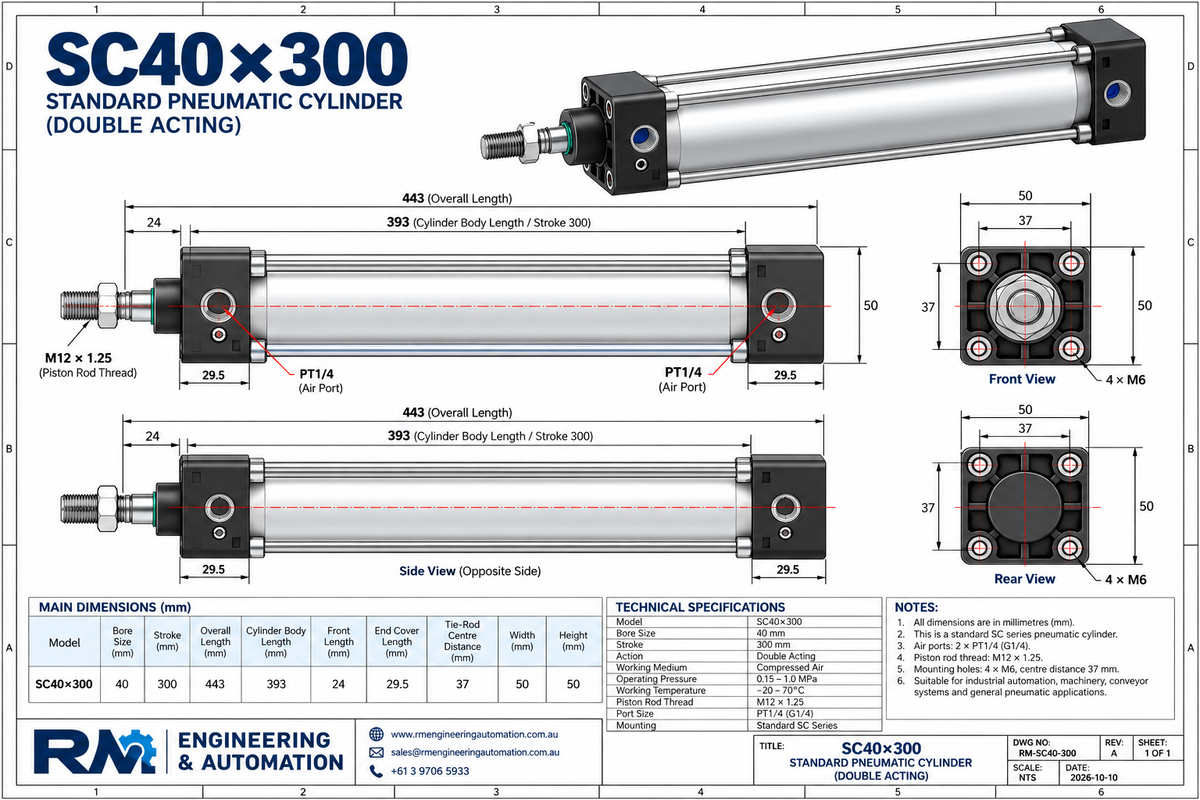

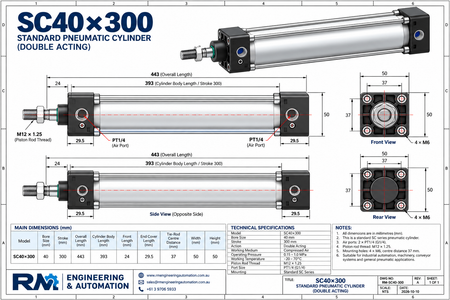

Note: Dimensions are reference dimensions for the SC40×300 configuration shown. Dimensions, threads and fittings may vary slightly between manufacturers or production batches. Verify critical dimensions before fabrication or permanent installation.
