SC40×100 Standard Pneumatic Air Cylinder – 40mm Bore × 100mm Stroke – Double Acting
The SC40×100 Standard Pneumatic Air Cylinder is a robust double-acting pneumatic actuator designed for industrial automation, machinery, conveyor systems, packaging equipment and general pneumatic applications.

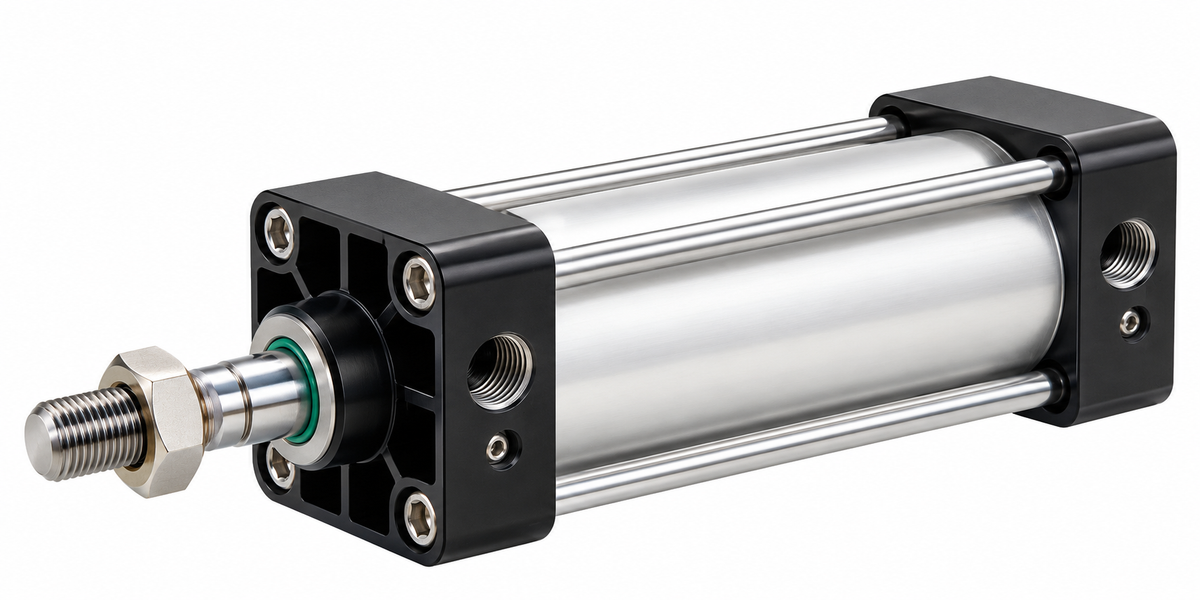

Featuring a 40 mm bore and 100 mm stroke, the SC40×100 provides smooth and controlled linear movement using compressed air. Its SC-series tie-rod construction combines a strong aluminium cylinder barrel, rigid end covers and external tie rods for reliable operation in industrial environments.
The double-acting design uses compressed air for both extension and retraction, making the cylinder suitable for pushing, pulling, positioning, clamping and repetitive machine movements.
Technical Specifications
| Specification | Details |
|---|---|
| Model | SC40×100 |
| Series | SC Series |
| Cylinder Type | Standard Pneumatic Air Cylinder |
| Bore Size | 40 mm |
| Stroke | 100 mm |
| Action | Double Acting |
| Working Medium | Compressed Air |
| Operating Pressure | 0.15–1.0 MPa |
| Working Temperature | -20°C to 70°C |
| Piston Rod Thread | M12 × 1.25 |
| Air Port Size | PT1/4 |
| Number of Air Ports | 2 |

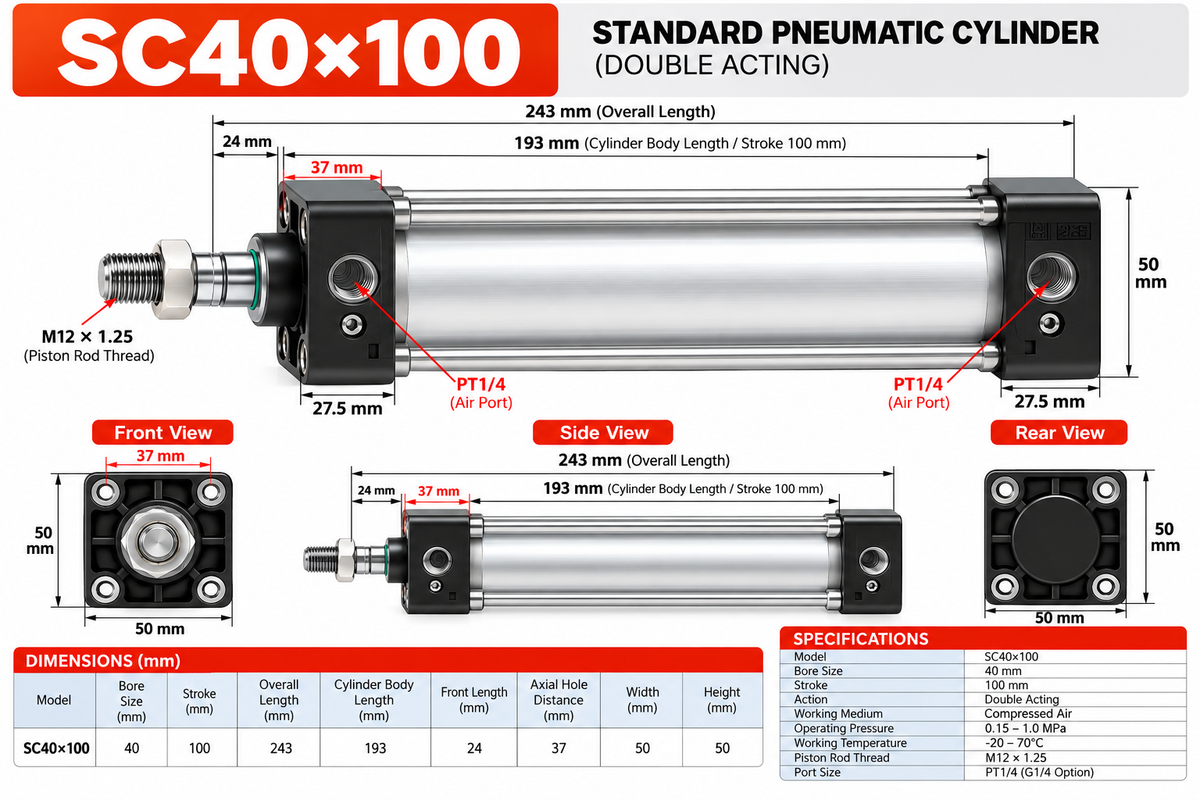

| Overall Length | Approx. 243 mm |
| Cylinder Body Length | Approx. 193 mm |
| Front Length | Approx. 24 mm |
| End Cover Length | Approx. 27.5 mm |
| Tie-Rod Centre Distance | Approx. 37 mm |
| Body Width | Approx. 50 mm |
| Body Height | Approx. 50 mm |
Theoretical Output Force
At an operating pressure of approximately 0.5 MPa, the SC40×100 provides a theoretical extension force of approximately 62.8 kgf.
Actual usable force may be lower depending on air pressure, friction, piston-rod area, load, installation alignment and other operating conditions.
Key Features
- 40 mm bore × 100 mm stroke
- Double-acting pneumatic operation
- Strong SC-series tie-rod construction
- Durable aluminium cylinder barrel
- High-strength external tie rods
- Smooth extension and retraction
- M12 × 1.25 piston rod thread
- 2 × PT1/4 pneumatic air ports
- Compact 50 × 50 mm body profile
- Operating pressure range of 0.15–1.0 MPa
- Suitable for industrial automation and machinery
- Compatible with common pneumatic valves, fittings, silencers and flow-control valves
Applications
The SC40×100 pneumatic cylinder is suitable for industrial automation, conveyor systems, packaging machinery, clamping equipment, pick-and-place systems, assembly machinery, material handling, sorting equipment, production machinery, pushing and pulling mechanisms, product positioning and general pneumatic systems.
Double-Acting Operation
The SC40×100 uses compressed air on both sides of the piston.
When compressed air is supplied to one port, the piston rod extends. When air is supplied to the opposite port, the rod retracts. A suitable pneumatic directional control valve, such as a solenoid valve, can be used to control the movement.
Installation & Operating Recommendations
Use clean and filtered compressed air and ensure suitable pneumatic tubing and fittings are selected for the operating pressure. Flow-control valves can be installed to adjust extension and retraction speed.
The cylinder should be correctly aligned with the moving load to minimise side loading on the piston rod. Appropriate cylinder mounting hardware should be selected according to the application.
Important: Dimensions are based on the SC40×100 configuration shown and should be treated as reference dimensions. Manufacturing batches and suppliers may vary slightly. Verify critical dimensions before fabrication, replacement or permanent installation.
