SC32×50 Standard Pneumatic Air Cylinder – 32mm Bore × 50mm Stroke – Double Acting

The SC32×50 Pneumatic Air Cylinder is a durable double-acting cylinder designed for industrial automation, machinery, conveyor systems and general pneumatic applications.

Featuring a 32mm bore and 50mm stroke, the SC-series tie-rod design provides strong, smooth and reliable linear movement. The robust aluminium cylinder body and steel tie rods make it suitable for demanding industrial environments.

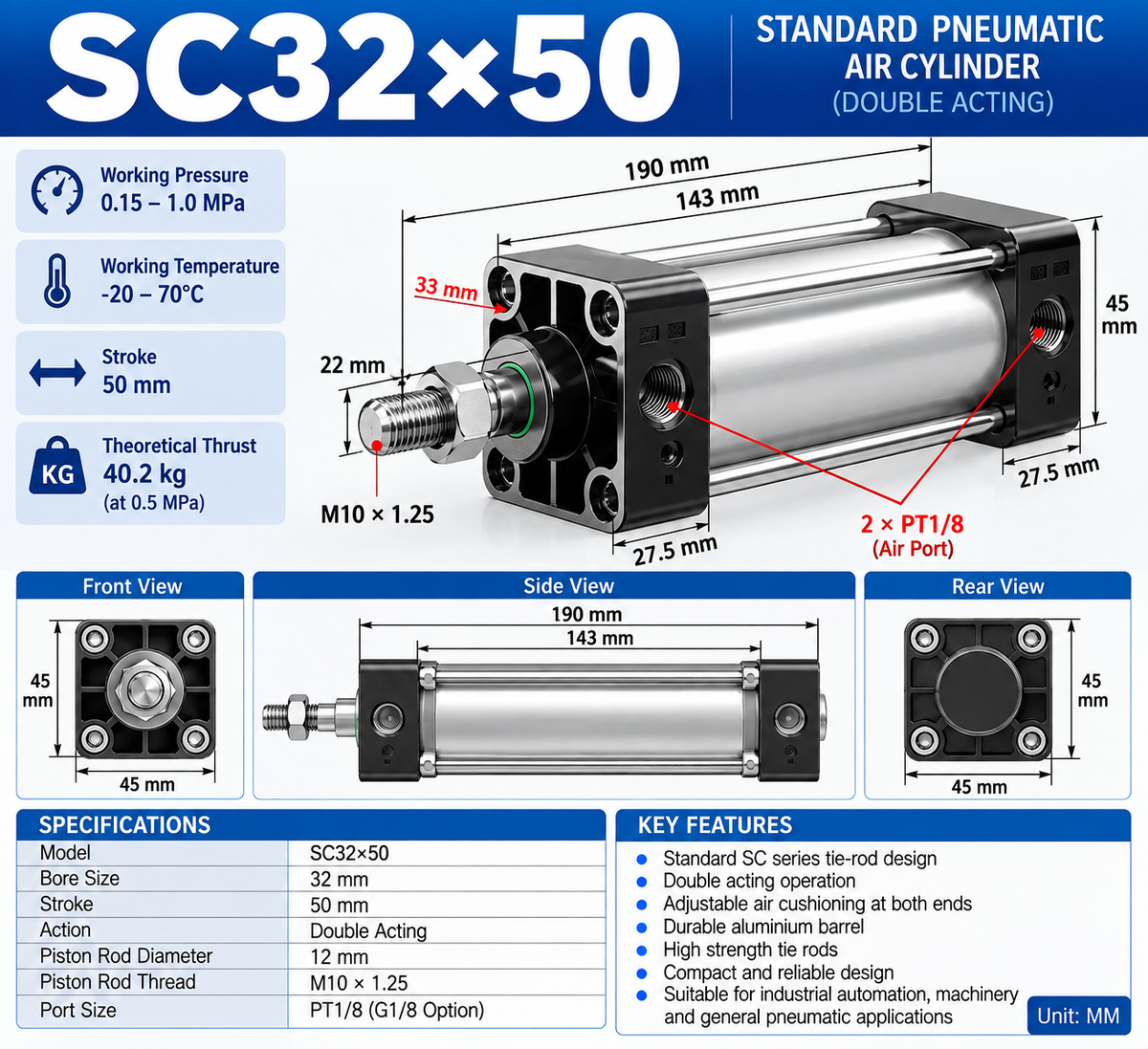

Key Specifications

• Model: SC32×50
• Bore Size: 32 mm
• Stroke: 50 mm
• Action: Double Acting
• Working Medium: Compressed Air
• Operating Pressure: 0.15–1.0 MPa
• Working Temperature: -20°C to 70°C
• Piston Rod Thread: M10 × 1.25
• Air Ports: 2 × PT1/8
• Overall Length: Approx. 190 mm
• Cylinder Body Length: Approx. 143 mm
• Body Size: Approx. 45 × 45 mm
• Theoretical Thrust: Approx. 40.2 kg at 0.5 MPa

Applications

Suitable for industrial automation, conveyor systems, packaging machinery, clamping, positioning, assembly equipment and general pneumatic machinery.

The SC32×50 pneumatic cylinder provides a compact and dependable solution where controlled 50mm linear movement is required.
