SC32×300 Standard Pneumatic Air Cylinder – 32mm Bore × 300mm Stroke – Double Acting
The SC32×300 Standard Pneumatic Air Cylinder is a heavy-duty double-acting pneumatic actuator designed for industrial automation, conveyor systems, packaging equipment, machinery and general pneumatic applications.
With a 32 mm bore and 300 mm stroke, this cylinder provides a long linear travel while maintaining the strong and reliable SC-series tie-rod construction. Compressed air is used to positively extend and retract the piston rod, making it suitable for controlled pushing, pulling, positioning and automation tasks.
The aluminium cylinder barrel, robust end caps and external tie rods provide a durable design suitable for regular industrial operation.

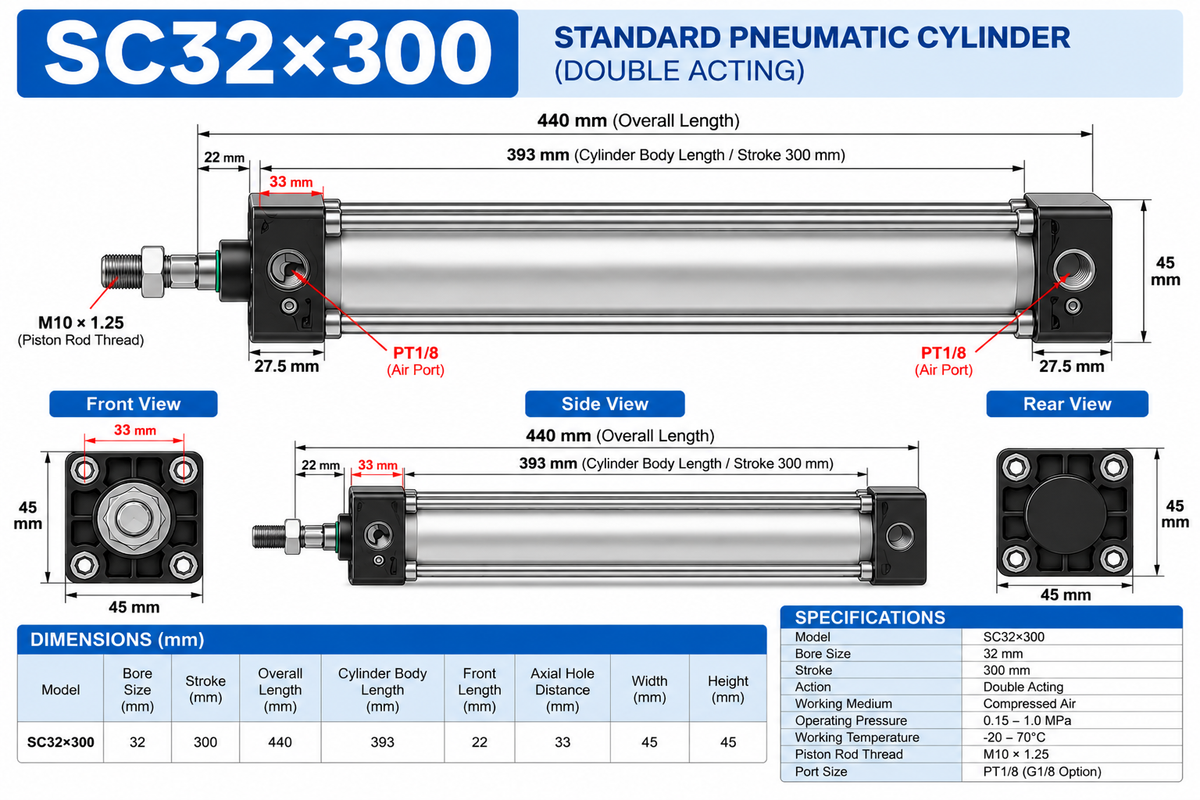

Technical Specifications
| Specification | Details |
|---|---|
| Model | SC32×300 |
| Series | SC Series |
| Cylinder Type | Standard Pneumatic Air Cylinder |
| Bore Size | 32 mm |
| Stroke | 300 mm |
| Action | Double Acting |
| Working Medium | Compressed Air |
| Operating Pressure | 0.15–1.0 MPa |
| Working Temperature | -20°C to 70°C |
| Piston Rod Thread | M10 × 1.25 |
| Air Port Size | PT1/8 |
| Number of Air Ports | 2 |
| Overall Length | Approx. 440 mm |
| Cylinder Body Length | Approx. 393 mm |
| Body Width | Approx. 45 mm |
| Body Height | Approx. 45 mm |
| Tie-Rod Centre Distance | Approx. 33 mm |
| End Cover Length | Approx. 27.5 mm |
Key Features
- 32 mm bore
- 300 mm stroke
- Double-acting operation
- Long 300 mm linear travel
- Strong SC-series tie-rod construction
- Durable aluminium cylinder barrel
- High-strength external tie rods
- Smooth extension and retraction
- M10 × 1.25 piston rod thread
- 2 × PT1/8 pneumatic ports
- Compact 45 × 45 mm end profile
- Suitable for industrial automation and machinery
- Compatible with common pneumatic fittings, solenoid valves and flow-control valves
Common Applications
The SC32×300 is suitable for:
- Conveyor systems
- Packaging machinery
- Industrial automation
- Pick-and-place equipment
- Sorting systems
- Product positioning
- Pushing and pulling mechanisms
- Clamping equipment
- Assembly machinery
- Material-handling equipment
- Production lines
- General pneumatic machinery
Double-Acting Operation
The SC32×300 is a double-acting cylinder, meaning compressed air controls movement in both directions.
When compressed air is supplied to one port, the piston rod extends. Supplying air to the opposite port causes the piston rod to retract. A suitable pneumatic directional control valve is normally used to control the cylinder.
Installation Recommendations
For reliable operation:
- Use clean and filtered compressed air.
- Install suitable pneumatic fittings and tubing.
- Flow-control valves can be used to regulate cylinder speed.
- Ensure the cylinder is correctly aligned with the load.
- Avoid excessive side loading on the piston rod.
- Select mounting brackets suitable for the application.
- Check that the operating pressure is suitable for the required load.
Important: Dimensions listed above are reference dimensions for the SC32×300 configuration shown. Dimensions and fittings may vary between manufacturers or production batches. Verify critical dimensions before fabrication or installation.
