SC32×200 Standard Pneumatic Air Cylinder – 32mm Bore × 200mm Stroke – Double Acting
The SC32×200 Standard Pneumatic Air Cylinder is a robust double-acting pneumatic actuator designed for industrial automation, machinery, conveyor systems, packaging equipment and general pneumatic applications.
Featuring a 32 mm bore and 200 mm stroke, the cylinder provides smooth and reliable linear movement using compressed air. The SC-series tie-rod construction combines a durable aluminium barrel, strong end covers and steel tie rods for dependable operation in industrial environments.
The cylinder is operated by supplying compressed air alternately to the two ports, providing controlled extension and retraction of the piston rod.
Specifications
| Specification | Details |
|---|---|
| Model | SC32×200 |
| Series | SC Series |
| Cylinder Type | Standard Pneumatic Cylinder |
| Bore Size | 32 mm |
| Stroke | 200 mm |
| Action | Double Acting |
| Working Medium | Compressed Air |
| Operating Pressure | 0.15–1.0 MPa |
| Working Temperature | -20°C to 70°C |
| Piston Rod Thread | M10 × 1.25 |
| Air Port Size | PT1/8 |
| Number of Air Ports | 2 |
| Body Width | Approx. 45 mm |
| Body Height | Approx. 45 mm |
| Overall Length | Approx. 340 mm |
| Cylinder Body Length | Approx. 293 mm |
| Tie-Rod Centre Distance | Approx. 33 mm |
| End Cover Length | Approx. 27.5 mm |
Theoretical Output Force
At approximately 0.5 MPa operating pressure, a 32 mm bore cylinder can produce approximately 40 kgf theoretical extension force. Actual available force will vary depending on operating pressure, friction, load and installation conditions.
Key Features
- 32 mm bore × 200 mm stroke
- Double-acting pneumatic operation
- Strong SC-series tie-rod construction
- Aluminium cylinder barrel
- High-strength tie rods
- Smooth linear extension and retraction
- Compact 45 × 45 mm body profile
- Two PT1/8 compressed-air ports
- M10 × 1.25 piston rod thread
- Suitable for frequent industrial operation
- Easy integration with pneumatic valves, fittings and flow controls
Applications
The SC32×200 pneumatic cylinder is suitable for:
- Industrial automation
- Conveyor systems
- Packaging machinery
- Production equipment
- Pick-and-place systems
- Clamping mechanisms
- Pushing and pulling applications
- Product positioning
- Assembly machinery
- Sorting systems
- Material handling equipment
- General pneumatic machinery
How It Works
The SC32×200 is a double-acting cylinder, meaning compressed air is used for movement in both directions.
Air supplied to one port extends the piston rod, while air supplied to the opposite port retracts it. A pneumatic directional control valve is normally used to control this operation.
Installation Notes
Use clean, filtered compressed air and suitable pneumatic fittings. Flow-control valves may be installed to adjust extension and retraction speed.
Ensure the cylinder and load are correctly aligned to minimise side loading on the piston rod.

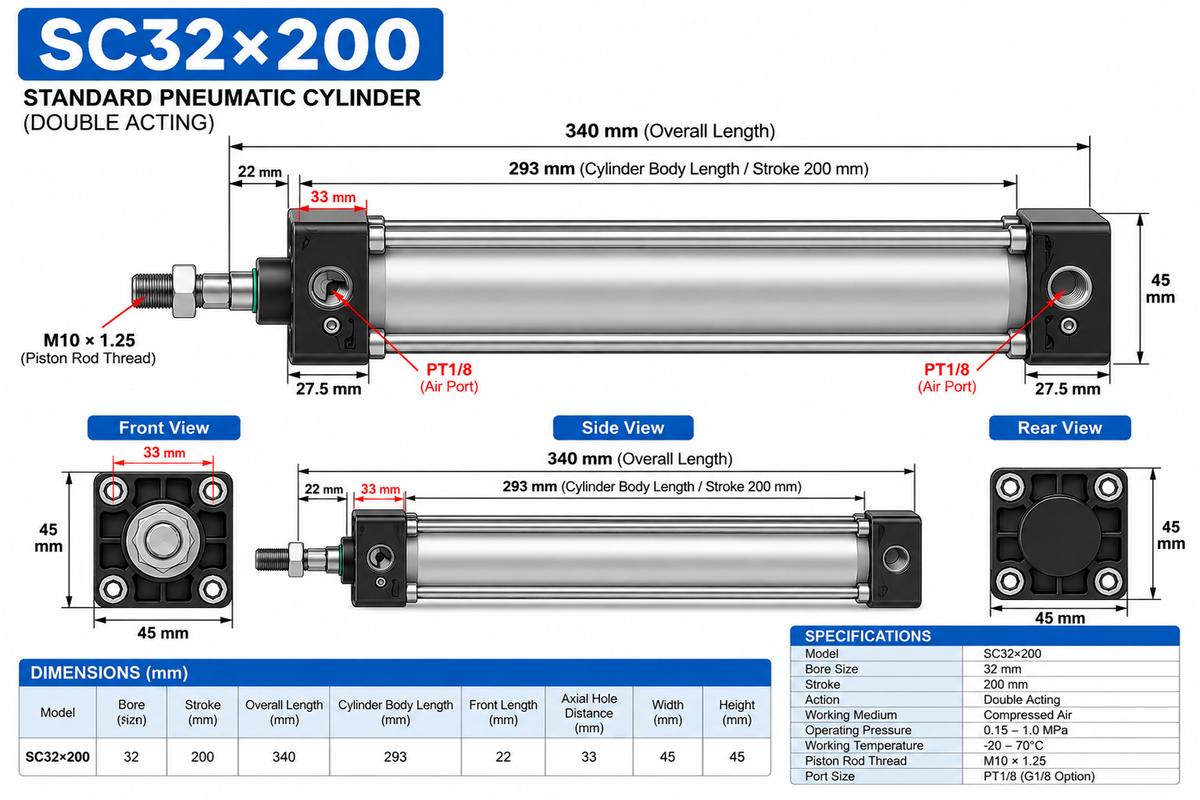

Note: Dimensions shown are reference dimensions for the SC32×200 series and may vary slightly between manufacturing batches. Please verify critical dimensions before fabrication or permanent installation.
