SC100×50 Standard Pneumatic Air Cylinder – 100mm Bore × 50mm Stroke – Double Acting
The SC100×50 Standard Pneumatic Air Cylinder is a heavy-duty double-acting pneumatic actuator designed for industrial automation, conveyor systems, packaging machinery, clamping, pressing, material handling and general pneumatic applications.
Featuring a 100 mm bore and 50 mm stroke, the SC100×50 delivers very high linear force over a compact travel distance. Its robust SC-series tie-rod construction combines a durable aluminium cylinder body, strong end covers and external steel tie rods for reliable operation in demanding industrial environments.
The cylinder uses compressed air for both extension and retraction, providing positive and controlled movement in both directions. With approximately 393 kgf theoretical extension force at 0.5 MPa, it is suitable for applications requiring strong pushing, clamping, pressing or positioning force.
Technical Specifications
| Specification | Details |
|---|---|
| Model | SC100×50 |
| Series | SC Series |
| Cylinder Type | Standard Tie-Rod Pneumatic Cylinder |
| Bore Size | 100 mm |
| Stroke | 50 mm |
| Action | Double Acting |
| Working Medium | Compressed Air |
| Operating Pressure | 0.15–1.0 MPa |
| Working Temperature | -20°C to 70°C |
| Piston Rod Thread | M20 × 1.5 |
| Air Port Size | 2 × PT1/2 (G1/2) |
| Overall Length | Approx. 238 mm |
| Cylinder Body Length | Approx. 163 mm |
| Front Length | Approx. 40 mm |
| End Cover Length | Approx. 33 mm |
| End Profile | Approx. 112 × 112 mm |
| Mounting Hole Centre Distance | Approx. 84 mm |
| Mounting Holes | 4 × M12 |
| Theoretical Force at 0.5 MPa | Approx. 393 kgf |
Key Features
- 100 mm bore × 50 mm stroke
- Approx. 393 kgf theoretical extension force at 0.5 MPa
- Compact high-force short-stroke design
- Double-acting pneumatic operation
- Heavy-duty SC-series tie-rod construction
- Durable aluminium cylinder body
- Strong external steel tie rods
- M20 × 1.5 piston rod thread
- 2 × PT1/2 air ports
- 4 × M12 mounting holes
- Approx. 112 × 112 mm end profile
- Smooth and repeatable extension and retraction
- Operating pressure up to 1.0 MPa
- Suitable for demanding industrial applications
Typical Applications
Suitable for:
- Industrial automation
- Heavy-duty clamping
- Pressing applications
- Conveyor systems
- Packaging machinery
- Material handling equipment
- Product positioning
- Pushing and pulling mechanisms
- Assembly machinery
- Production equipment
- Sorting systems
- General pneumatic machinery
Double-Acting Operation
The SC100×50 has two pneumatic ports. Compressed air supplied to one side of the piston causes the rod to extend, while air supplied to the opposite side causes it to retract.
A suitable directional or solenoid valve can be used to control the cylinder. Flow-control valves may also be installed to regulate extension and retraction speed.
Installation Notes
Use clean, filtered compressed air and pneumatic tubing and fittings rated for the required pressure. Ensure the cylinder is correctly aligned with the load and avoid excessive side loading on the piston rod.

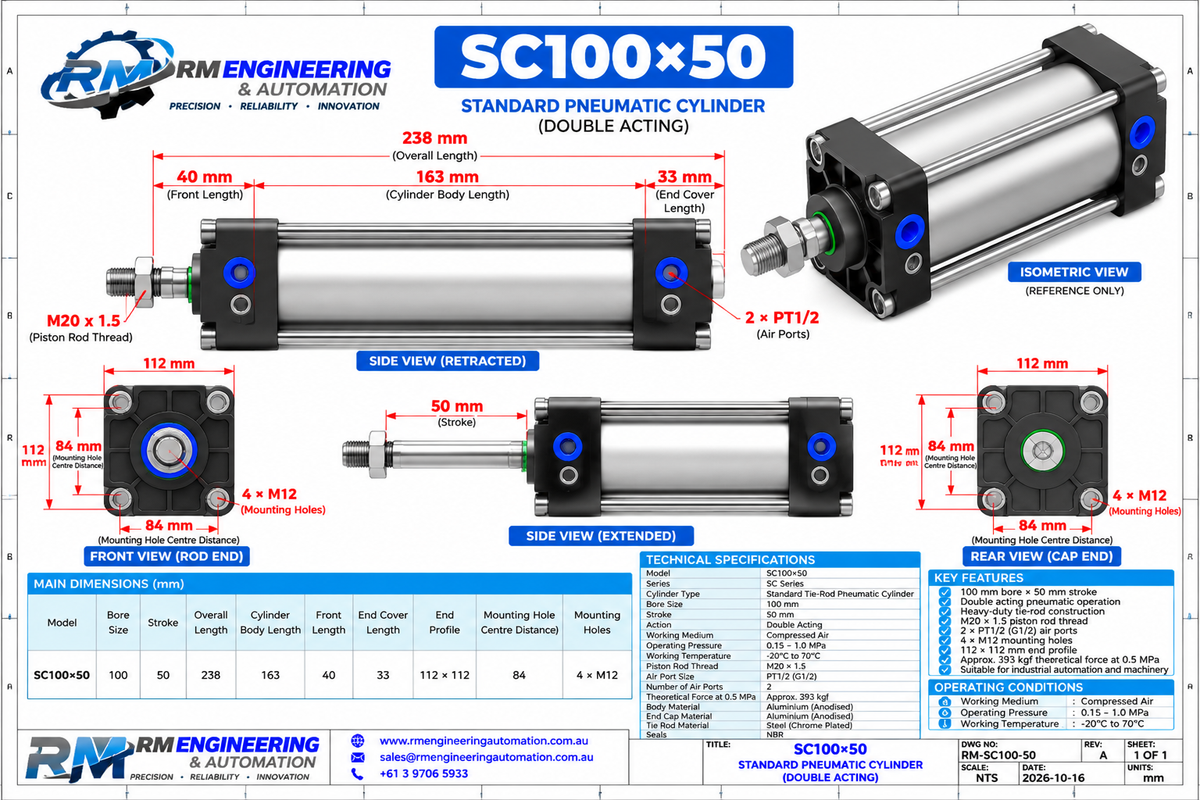

Note: Dimensions are based on the supplied SC100×50 reference drawing and should be treated as reference dimensions. Verify critical dimensions before fabrication or permanent installation.
