SC100×300 Standard Pneumatic Air Cylinder – 100mm Bore × 300mm Stroke – Double Acting
The SC100×300 Standard Pneumatic Air Cylinder is a heavy-duty double-acting pneumatic actuator designed for industrial automation, conveyor systems, packaging machinery, material handling equipment, clamping systems and general pneumatic applications.
Featuring a 100 mm bore and 300 mm stroke, the SC100×300 provides high linear force combined with a long controlled travel distance. Its robust SC-series tie-rod construction uses a durable aluminium cylinder barrel, strong end covers and external steel tie rods for reliable operation in demanding industrial environments.
The double-acting design uses compressed air for both extension and retraction, providing controlled movement in both directions for pushing, pulling, positioning, clamping and automated machine functions.
Technical Specifications
| Specification | Details |
|---|---|
| Model | SC100×300 |
| Series | SC Series |
| Cylinder Type | Standard Tie-Rod Pneumatic Cylinder |
| Bore Size | 100 mm |
| Stroke | 300 mm |
| Action | Double Acting |
| Working Medium | Compressed Air |
| Operating Pressure | 0.15–1.0 MPa |
| Working Temperature | -20°C to 70°C |
| Piston Rod Thread | M20 × 1.5 |
| Air Port Size | 2 × PT1/2 (G1/2) |
| Overall Length | Approx. 488 mm |
| Cylinder Body Length | Approx. 413 mm |
| Front Length | Approx. 40 mm |
| End Cover Length | Approx. 33 mm |
| End Profile | Approx. 112 × 112 mm |
| Mounting Hole Centre Distance | Approx. 84 mm |
| Mounting Holes | 4 × M12 |
| Theoretical Force at 0.5 MPa | Approx. 393 kgf |
Construction & Materials
- Cylinder Barrel: Aluminium
- End Covers: Aluminium
- Tie Rods: Chrome-plated steel
- Seals: NBR
- Heavy-duty SC-series tie-rod construction
- Designed for repetitive industrial operation
Key Features
- 100 mm bore × 300 mm stroke
- Long 300 mm linear travel
- Approx. 393 kgf theoretical extension force at 0.5 MPa
- Double-acting pneumatic operation
- Heavy-duty SC-series construction
- Durable aluminium cylinder body
- Strong external steel tie rods
- Smooth and repeatable extension and retraction
- M20 × 1.5 piston rod thread
- 2 × PT1/2 (G1/2) air ports
- 4 × M12 mounting holes
- Approx. 112 × 112 mm end profile
- Operating pressure up to 1.0 MPa
- Suitable for demanding industrial machinery
- Compatible with common pneumatic valves, fittings and flow-control valves
Typical Applications
The SC100×300 is suitable for:
- Industrial automation
- Conveyor systems
- Heavy-duty clamping
- Packaging machinery
- Material handling equipment
- Product positioning
- Pushing and pulling mechanisms
- Assembly machinery
- Sorting systems
- Production equipment
- Pick-and-place systems
- General pneumatic machinery
Double-Acting Operation
The SC100×300 has two pneumatic air ports. Compressed air supplied to one side of the piston causes the rod to extend, while air supplied to the opposite side causes it to retract.
A suitable pneumatic directional or solenoid valve can be used to control cylinder movement. Flow-control valves may also be installed to regulate extension and retraction speed.
Installation Recommendations
Use clean, filtered compressed air and pneumatic tubing and fittings rated for the required operating pressure.
Ensure the cylinder is correctly aligned with the load and avoid excessive side loading on the piston rod. Before installation, confirm the required force, stroke, operating pressure, cycle rate and mounting arrangement for the application.

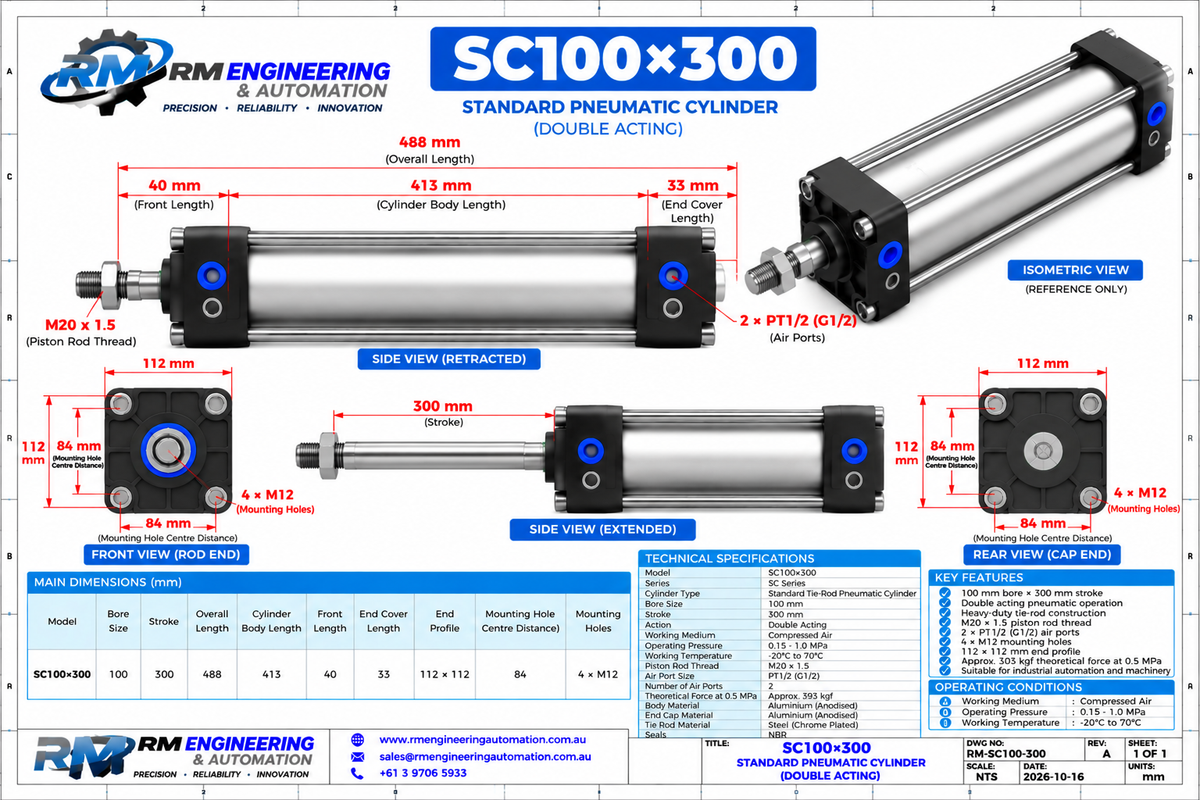

Note: Dimensions are based on the supplied SC100×300 reference drawing and should be treated as reference dimensions. Verify critical dimensions before fabrication or permanent machine installation.
