SC100×200 Standard Pneumatic Air Cylinder – 100mm Bore × 200mm Stroke – Double Acting
The SC100×200 Standard Pneumatic Air Cylinder is a heavy-duty double-acting pneumatic actuator designed for industrial automation, conveyor systems, packaging machinery, material handling equipment, clamping systems and general pneumatic applications.
Featuring a 100 mm bore and 200 mm stroke, the SC100×200 delivers high linear force with a longer controlled travel distance. Its robust SC-series tie-rod construction combines a durable aluminium cylinder body, strong end covers and external steel tie rods for reliable performance in demanding industrial environments.
The double-acting design uses compressed air for both extension and retraction, providing positive movement in both directions for pushing, pulling, clamping, positioning and automated machine functions.
Technical Specifications
| Specification | Details |
|---|---|
| Model | SC100×200 |
| Series | SC Series |
| Cylinder Type | Standard Tie-Rod Pneumatic Cylinder |
| Bore Size | 100 mm |
| Stroke | 200 mm |
| Action | Double Acting |
| Working Medium | Compressed Air |
| Operating Pressure | 0.15–1.0 MPa |
| Working Temperature | -20°C to 70°C |
| Piston Rod Thread | M20 × 1.5 |
| Air Port Size | 2 × PT1/2 (G1/2) |
| Overall Length | Approx. 388 mm |
| Cylinder Body Length | Approx. 313 mm |
| Front Length | Approx. 40 mm |
| End Cover Length | Approx. 33 mm |
| End Profile | Approx. 112 × 112 mm |
| Mounting Hole Centre Distance | Approx. 84 mm |
| Mounting Holes | 4 × M12 |
| Theoretical Force at 0.5 MPa | Approx. 393 kgf |
Key Features
- 100 mm bore × 200 mm stroke
- Approx. 393 kgf theoretical extension force at 0.5 MPa
- Double-acting pneumatic operation
- Heavy-duty SC-series tie-rod construction
- Durable aluminium cylinder body
- Strong external steel tie rods
- Smooth and repeatable extension and retraction
- M20 × 1.5 piston rod thread
- 2 × PT1/2 (G1/2) air ports
- 4 × M12 mounting holes
- Approx. 112 × 112 mm end profile
- Long 200 mm linear travel
- Operating pressure up to 1.0 MPa
- Suitable for demanding industrial applications
Typical Applications
The SC100×200 is suitable for:
- Industrial automation
- Heavy-duty clamping
- Conveyor systems
- Packaging machinery
- Material handling equipment
- Pressing applications
- Product positioning
- Pushing and pulling mechanisms
- Assembly machinery
- Sorting equipment
- Production machinery
- General pneumatic systems
Double-Acting Operation
The SC100×200 uses two pneumatic air ports to control movement in both directions.
Compressed air supplied to one side of the piston causes the rod to extend, while compressed air supplied to the opposite side causes it to retract.
A suitable pneumatic directional or solenoid valve can be used to control the cylinder. Flow-control valves may also be installed to regulate extension and retraction speed.
Installation Notes
Use clean, filtered compressed air and pneumatic tubing and fittings rated for the required operating pressure. Ensure the cylinder is correctly aligned with the moving load and avoid excessive side loading on the piston rod.

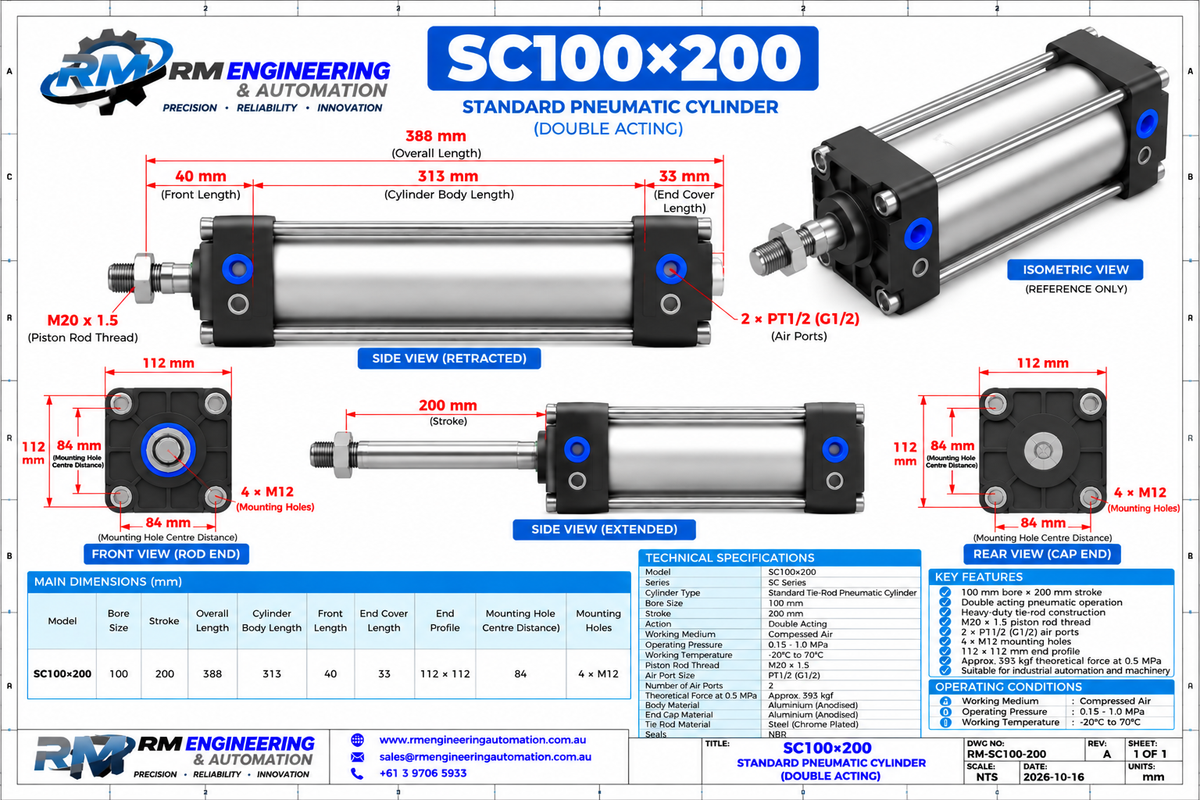

Note: Dimensions are based on the supplied SC100×200 reference drawing and should be treated as reference dimensions. Verify critical dimensions before fabrication or permanent installation.
