SC100×100 Standard Pneumatic Air Cylinder – 100mm Bore × 100mm Stroke – Double Acting
The SC100×100 Standard Pneumatic Air Cylinder is a heavy-duty double-acting pneumatic actuator designed for industrial automation, conveyor systems, packaging machinery, clamping, pressing, material handling and general pneumatic applications.
Featuring a 100 mm bore and 100 mm stroke, the SC100×100 delivers high linear force with smooth and controlled movement over a medium travel distance. Its robust SC-series tie-rod construction combines a durable aluminium cylinder body, strong end covers and external steel tie rods for reliable performance in demanding industrial environments.
The cylinder uses compressed air for both extension and retraction, providing controlled motion in both directions for pushing, pulling, positioning, clamping and automated machine operations.
Technical Specifications
| Specification | Details |
|---|---|
| Model | SC100×100 |
| Series | SC Series |
| Cylinder Type | Standard Tie-Rod Pneumatic Cylinder |
| Bore Size | 100 mm |
| Stroke | 100 mm |
| Action | Double Acting |
| Working Medium | Compressed Air |
| Operating Pressure | 0.15–1.0 MPa |
| Working Temperature | -20°C to 70°C |
| Piston Rod Thread | M20 × 1.5 |
| Air Port Size | 2 × PT1/2 (G1/2) |
| Overall Length | Approx. 288 mm |
| Cylinder Body Length | Approx. 213 mm |
| Front Length | Approx. 40 mm |
| End Cover Length | Approx. 33 mm |
| End Profile | Approx. 112 × 112 mm |
| Mounting Hole Centre Distance | Approx. 84 mm |
| Mounting Holes | 4 × M12 |
| Theoretical Force at 0.5 MPa | Approx. 393 kgf |
Key Features
- 100 mm bore × 100 mm stroke
- Approx. 393 kgf theoretical extension force at 0.5 MPa
- Double-acting pneumatic operation
- Heavy-duty SC-series tie-rod construction
- Durable aluminium cylinder body
- Strong external steel tie rods
- Smooth and repeatable extension and retraction
- M20 × 1.5 piston rod thread
- 2 × PT1/2 (G1/2) air ports
- 4 × M12 mounting holes
- Approx. 112 × 112 mm end profile
- Operating pressure up to 1.0 MPa
- Suitable for demanding industrial machinery
- Compatible with common pneumatic valves, fittings and flow controls
Typical Applications
The SC100×100 is suitable for:
- Industrial automation
- Heavy-duty clamping
- Pressing applications
- Conveyor systems
- Packaging machinery
- Material handling equipment
- Product positioning
- Pushing and pulling mechanisms
- Assembly machinery
- Sorting equipment
- Production machinery
- General pneumatic systems
Double-Acting Operation
The SC100×100 has two pneumatic air ports. Compressed air supplied to one side of the piston causes the rod to extend, while air supplied to the opposite side causes it to retract.
A suitable directional or solenoid valve can be used to control movement, with flow-control valves fitted where speed adjustment is required.
Installation Notes
Use clean, filtered compressed air and suitable pressure-rated pneumatic tubing and fittings. Ensure the cylinder is correctly aligned with the load and avoid excessive side loading on the piston rod.

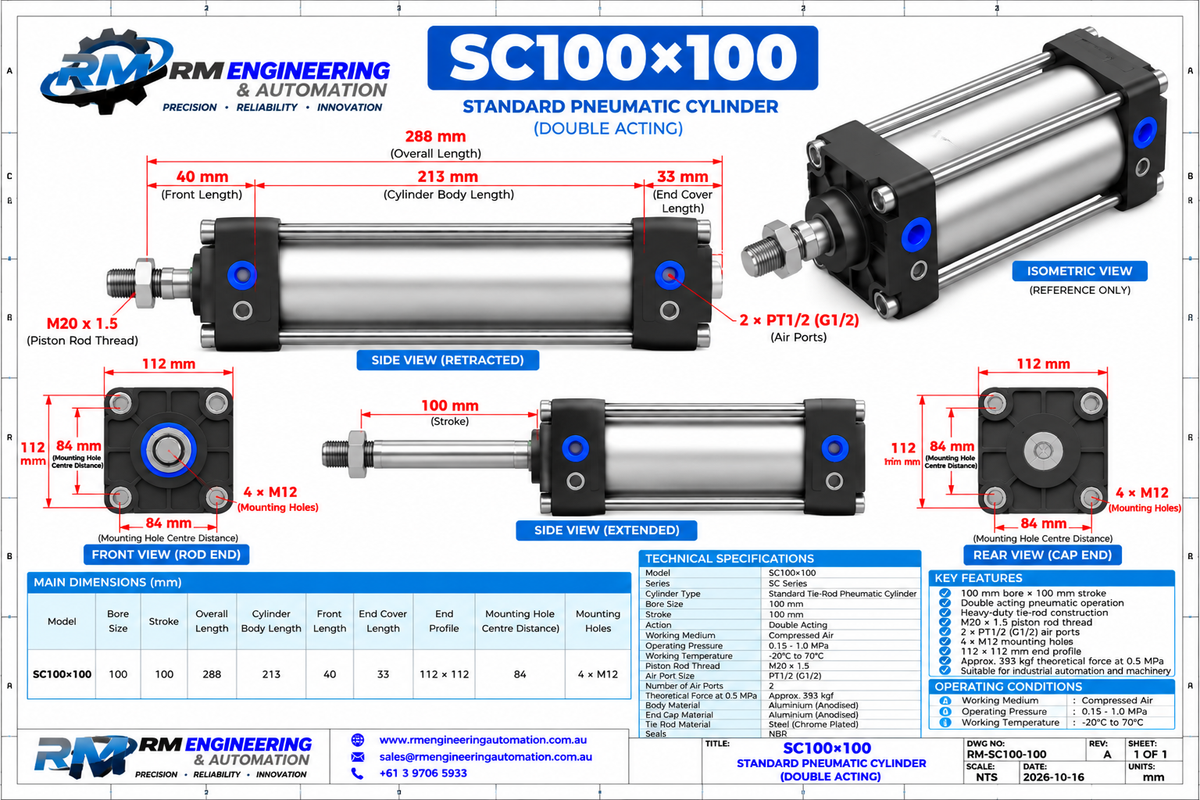

Note: Dimensions are based on the supplied SC100×100 reference drawing and should be treated as reference dimensions. Verify critical dimensions before fabrication or permanent installation.
