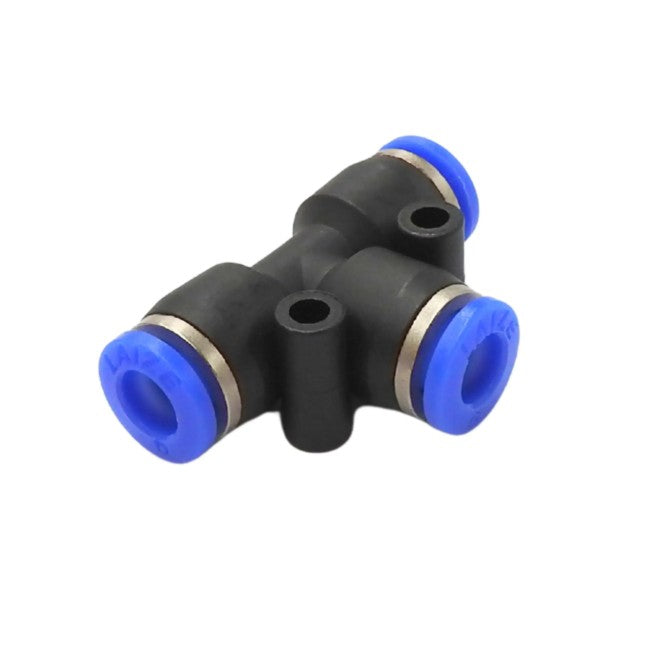

Pneumatic Push In Air Fittings – Union Tee 8mm

Pneumatic Push In Air Fittings – Union Tee

The Vac-Clamp 8mm Quick Fit Tee Union is a high-performance pneumatic fitting designed to optimize airflow distribution in Vac-Clamp VC4 and VC5 vacuum clamping systems. Its T-shaped configuration allows for efficient branching of airline circuits, enabling consistent and reliable vacuum supply to multiple clamps simultaneously.

Key Features:

• Dual Compatibility:
  Designed to accommodate both 6mm and 8mm outer diameter pneumatic tubing, offering flexibility for various system configurations.

• Tee Union Design:
  Ideal for splitting airflow into two directions or connecting three tubing sections in a compact, efficient layout.

• Quick Fit Push-In Mechanism:
  Enables fast, tool-free installation and removal, reducing setup time and maintenance effort.

• Strong, Airtight Seal:
  Built-in O-ring and secure locking grip ensure minimal air leakage under operating pressure.

• Robust Construction:
  Made from high-strength thermoplastic or corrosion-resistant nickel-plated brass (model dependent) for excellent durability and long service life.

• Operating Pressure:
  Suitable for systems with working pressures ranging from 0 to 10 bar.

• Temperature Range:
  Performs reliably in environments from -20°C to 60°C, making it suitable for most workshop, industrial, and automation applications.

Applications:

• • Vacuum clamping systems for CNC machines and woodworking

  • Pneumatic automation and control systems

  • Industrial air distribution networks

  • Lab and prototype setups

   Product specifications

8mm Tee Union Push Connector

• Tube Size: 8mm outer diameter

• Overall Length (L): 36–38 mm

• Color : Black and Blue

• Height (H): ~22–24 mm

price/1pc
