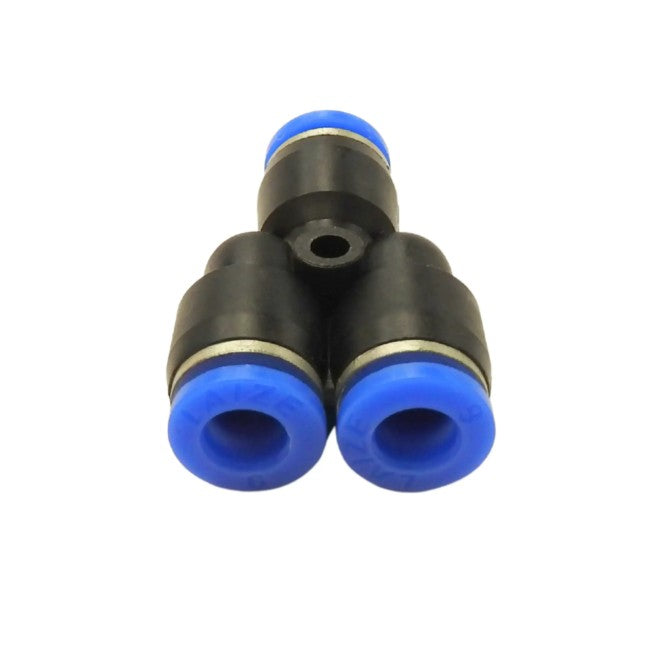

Pneumatic push fit Y Connector 6mm

The  pneumatic Y tube-to-tube adapter offers a fast, tool-free solution for branching air lines using a simple push-to-connect mechanism. Available in both 6 mm  tube sizes, it’s widely used in pneumatic piping, oxygen delivery systems, air motors, and compressors.

 The integrated six-angle wrench design allows for easy installation in confined spaces, while Teflon-coated threads ensure a secure, leak-free fit.

Key Features

• Y-Style Tube Connector: One push-in inlet to two push-in outlets (6 mm or 8 mm)

• Body Material: Tough and lightweight POM

• Quick Release: Push the sleeve and pull the tube to disconnect

• Compatible Media: Dry air only

6 mm Pneumatic Y Push-Fit Connector

• For 6 mm outer diameter tubing

• Body material:  Plastic

• Compatible media: Air and water

• Suitable tube types: PU, PA, PE, PTFE

• Connection type: Push-to-connect (Y-configuration)

 8mm Pneumatic Y Push-Fit Connector

• For 8 mm outer diameter tubing

• Body material:  Plastic

• Compatible media: Air and water

• Suitable tube types: PU, PA, PE, PTFE

• Connection type: Push-to-connect (Y-configuration)

Price/1pc
