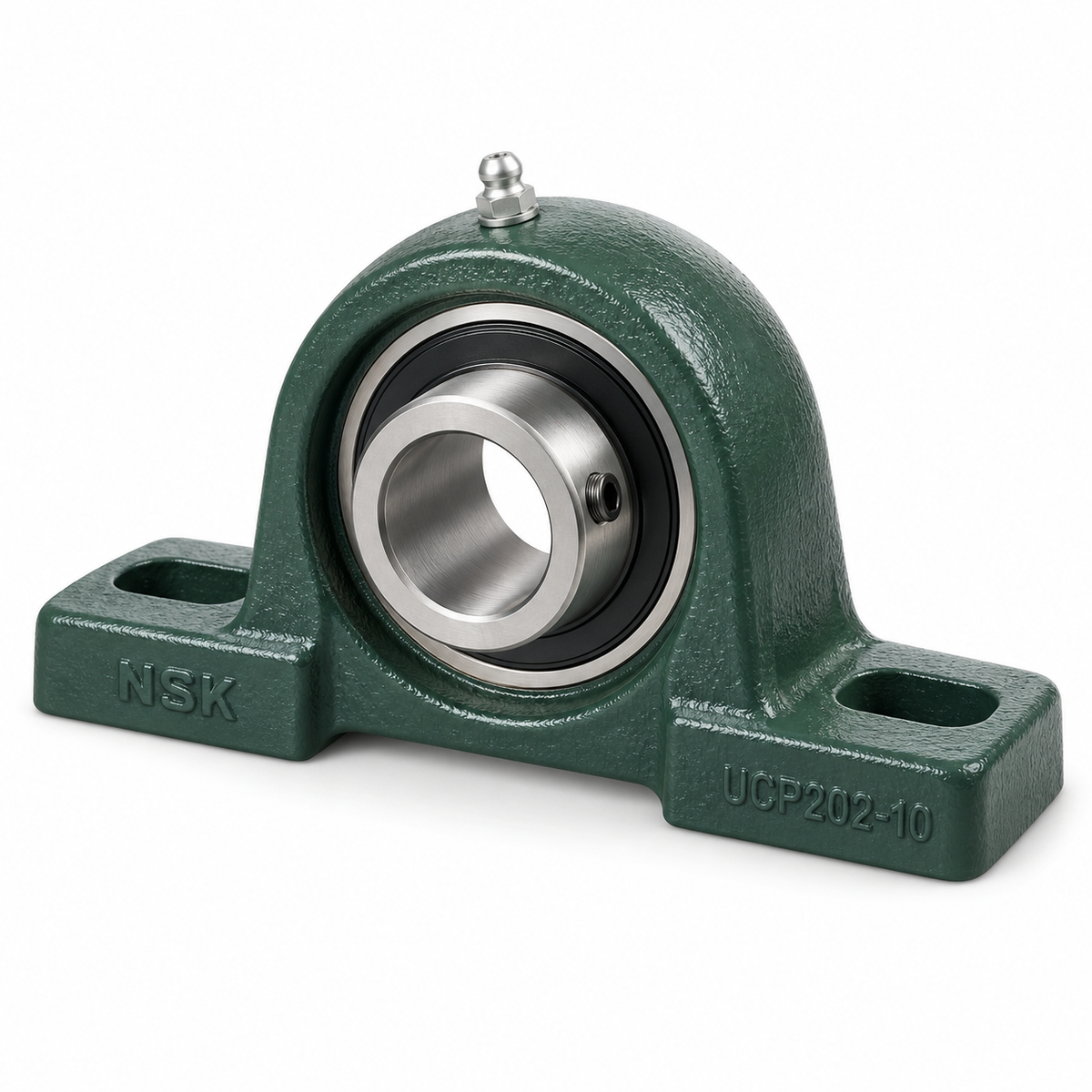

NSK UCP202-10 Pillow Block Bearing Unit – 5/8″ Bore (15.875 mm)
Regular price
$19.90 AUD
Coming Soon!
Expected availability: 23 November 2026
Email when stock available
NSK UCP202-10 Pillow Block Bearing Unit – 5/8″ Bore (15.875 mm)
The NSK UCP202-10 pillow block bearing unit supports a rotating 5/8-inch shaft. It combines a ball bearing insert with a cast iron housing and a two-bolt mounting base for installation on a machine frame or support plate.
Set screws secure the bearing insert to the shaft. Suitable applications include compatible conveyors, packaging equipment, agricultural machinery and general mechanical assemblies.
Specifications
| Specification | Details |
|---|---|
| Brand | NSK |
| Model | UCP202-10 |
| Bearing type | Pillow block ball bearing unit |
| Nominal shaft / bore diameter | 5/8″ — 15.875 mm |
| Housing material | Cast iron |
| Mounting | Two-bolt base |
| Shaft locking | Set screws |
| Package contents | 1 × complete pillow block bearing unit |
Check shaft diameter, mounting-hole spacing and shaft centre height before selecting a replacement.
