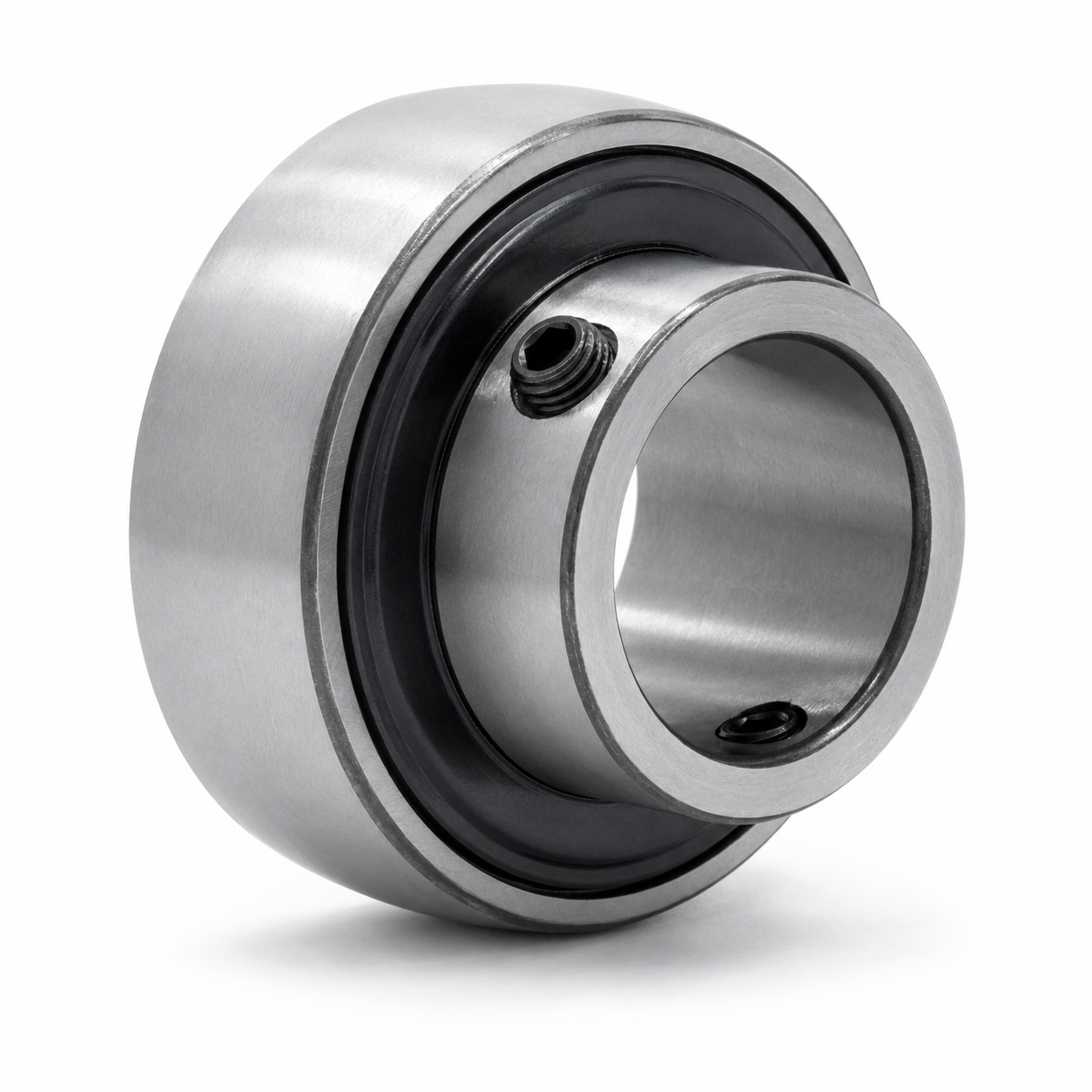

NSK UC207 Insert Bearing – 35mm Bore Wide Inner Ring Bearing
Regular price
$19.58 AUD
Couldn't load pickup availability
The NSK UC207 insert bearing is a wide inner ring ball bearing designed for use in mounted bearing housings such as pillow blocks, flange units, and take-up units.
It features a 35mm bore, 72mm outside diameter, and 42.9mm overall width. The bearing has a spherical outside profile to allow self-alignment inside compatible housings. The shaft is secured using set screws on the inner ring, making installation simple and reliable.
This bearing is suitable for replacing worn or damaged inserts in UCP207, UCF207, UCFL207, and other compatible mounted bearing units.
Key Features
- Genuine NSK insert bearing
- 35mm shaft bore
- Wide inner ring design
- Spherical outside diameter
- Set screw shaft locking
- Double sealed for protection
- Suitable for relubricatable mounted housings
- Ideal for conveyors, rollers, shafts, machinery, and farm equipment

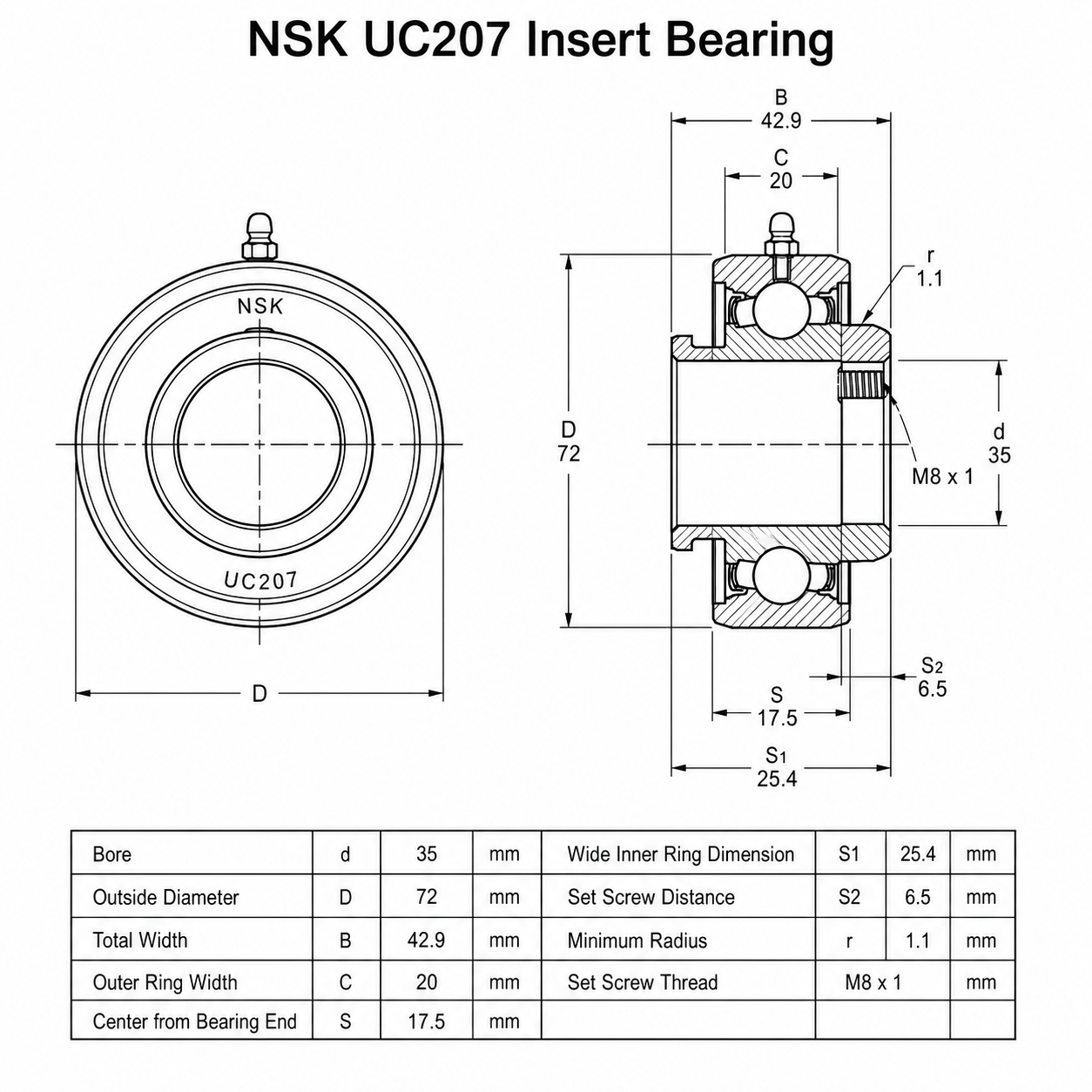

Specifications
| Specification | Details |
|---|---|
| Brand | NSK |
| Model | UC207 |
| Bearing Type | Insert Bearing |
| Bore / ID | 35mm |
| Outside Diameter | 72mm |
| Overall Width | 42.9mm |
| Outer Ring Width | 20mm |
| Locking Type | Set Screw |
| Set Screw Thread | M8 x 1 |
| Outer Profile | Spherical |
| Seal Type | Double Sealed |
| Compatible Units | UCP207, UCF207, UCFL207 and similar housings |
