NSK NK15/16 Machined Ring Needle Roller Bearing – 15 × 23 × 16 mm
Regular price
$7.01 AUD
Coming Soon!
Expected availability: 23 November 2026
Email when stock available

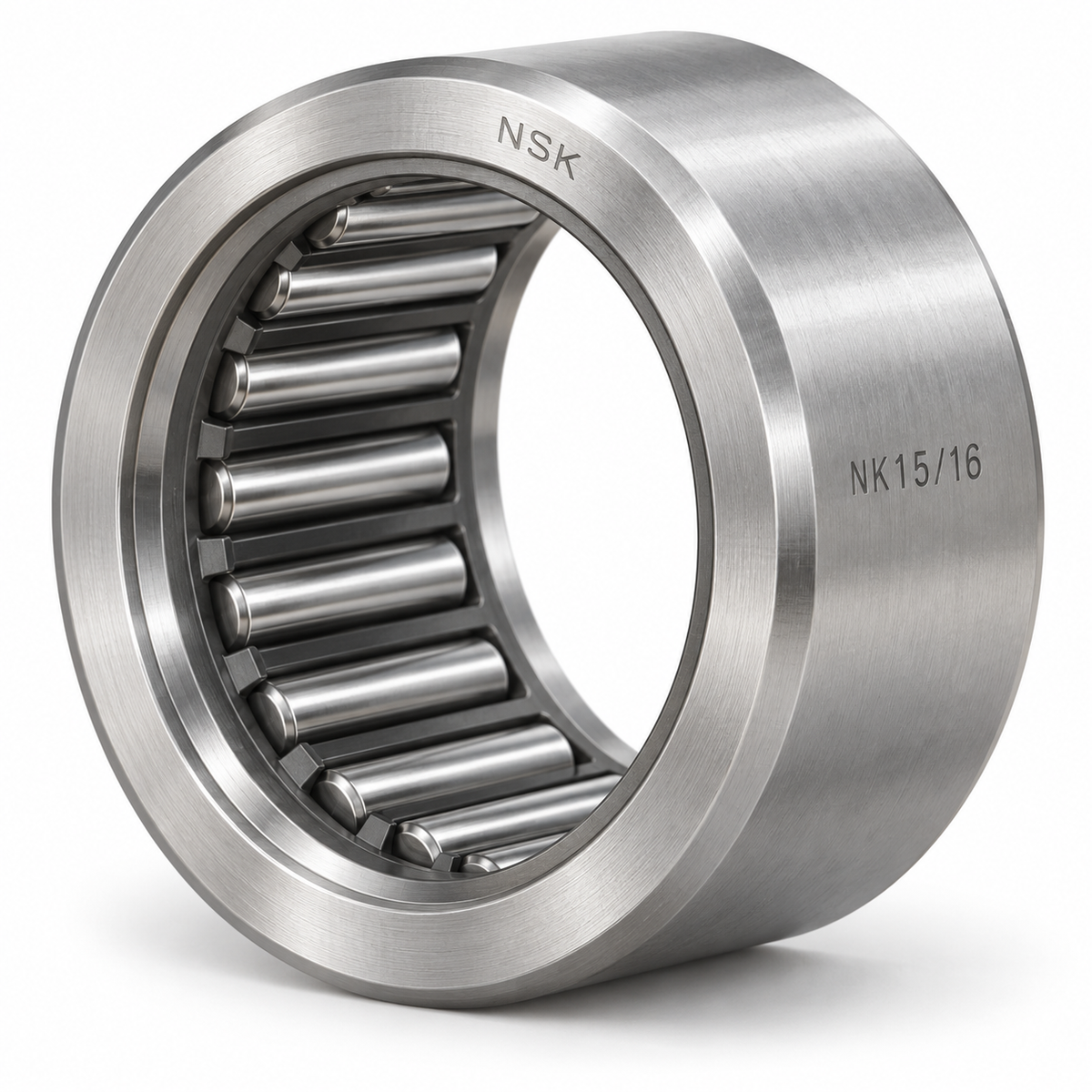

NSK NK15/16 Machined Ring Needle Roller Bearing – 15 × 23 × 16 mm
The NSK NK15/16 needle roller bearing provides compact radial shaft support using a machined outer ring and caged needle rollers. Its design suits mechanical assemblies where radial space is limited.
Supplied without an inner ring, the rollers run directly on a suitably hardened and ground shaft. A compatible inner ring may be used where the shaft is unsuitable as a bearing raceway.
Suitable applications include compatible gearboxes, transmission assemblies, automation equipment and general machinery.

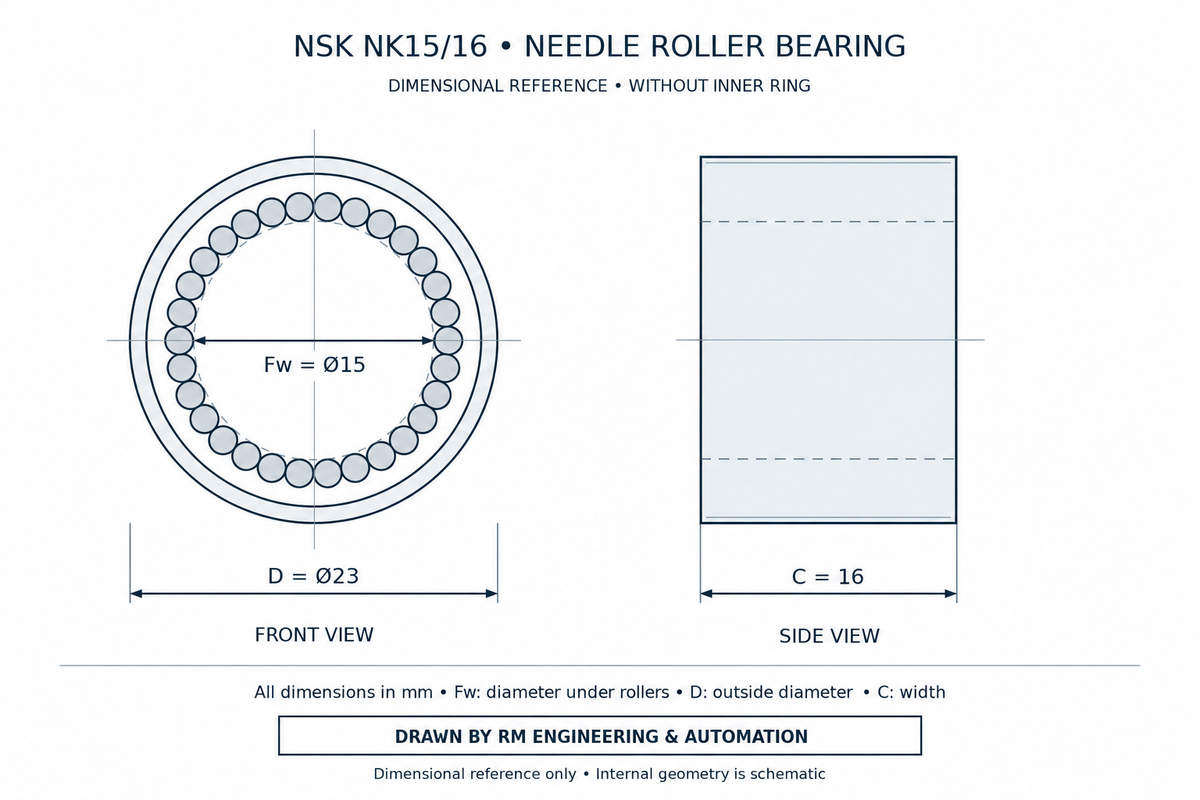

Specifications
| Specification | Details |
|---|---|
| Brand | NSK |
| Model | NK15/16 |
| Bearing type | Machined ring needle roller bearing |
| Diameter under rollers | 15 mm |
| Outside diameter | 23 mm |
| Width | 16 mm |
| Roller arrangement | Caged needle rollers |
| Design | Open, unsealed |
| Inner ring | Not included |
| Package contents | 1 × NK15/16 bearing |
Check shaft finish, housing fit, lubrication and operating requirements before installation.
