NSK LMF16UU Round Flange Linear Ball Bearing – 16 mm Shaft | 16 × 28 × 37 mm

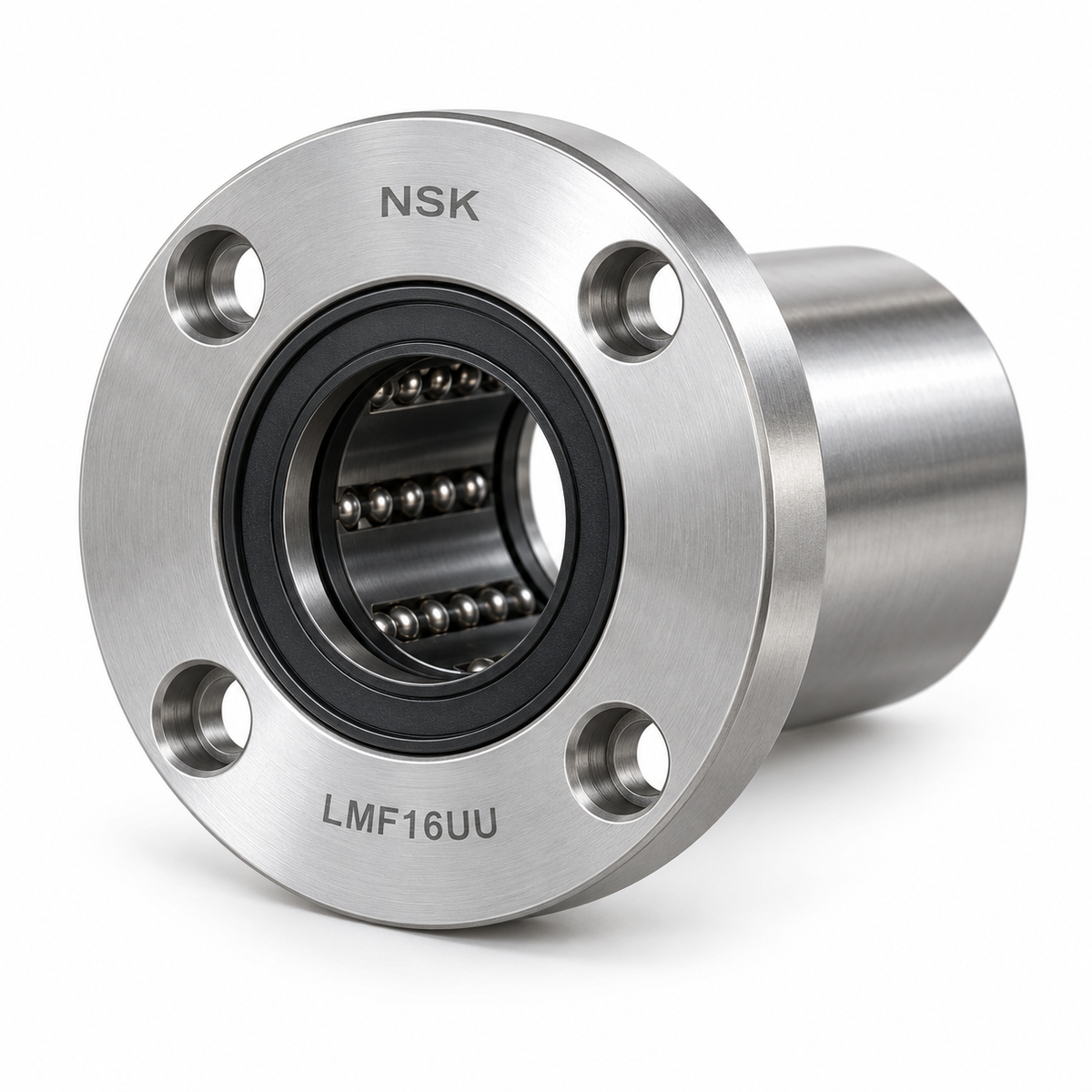

The NSK LMF16UU round flange linear ball bearing provides smooth, guided movement along a compatible 16 mm linear shaft. Its recirculating ball design reduces sliding friction, while seals at both ends help retain lubricant and limit dust entry.
The circular flange features four mounting holes for securing the bearing directly to a machine plate or component. Suitable applications include CNC machinery, automation equipment, positioning systems and linear motion assemblies.
Specifications
| Specification | Details |
|---|---|
| Brand | NSK |
| Model | LMF16UU |
| Bearing type | Round flange linear ball bearing |
| Shaft diameter / bore | 16 mm |
| Body outside diameter | 28 mm |
| Overall length | 37 mm |
| Flange diameter | 48 mm |
| Flange thickness | 6 mm |
| Mounting hole pitch circle | 38 mm |
| Mounting holes | 4 |
| Sealing | Seals at both ends |
| Package contents | 1 × LMF16UU linear bearing |
Use with a suitable hardened and ground linear shaft and maintain appropriate lubrication.
