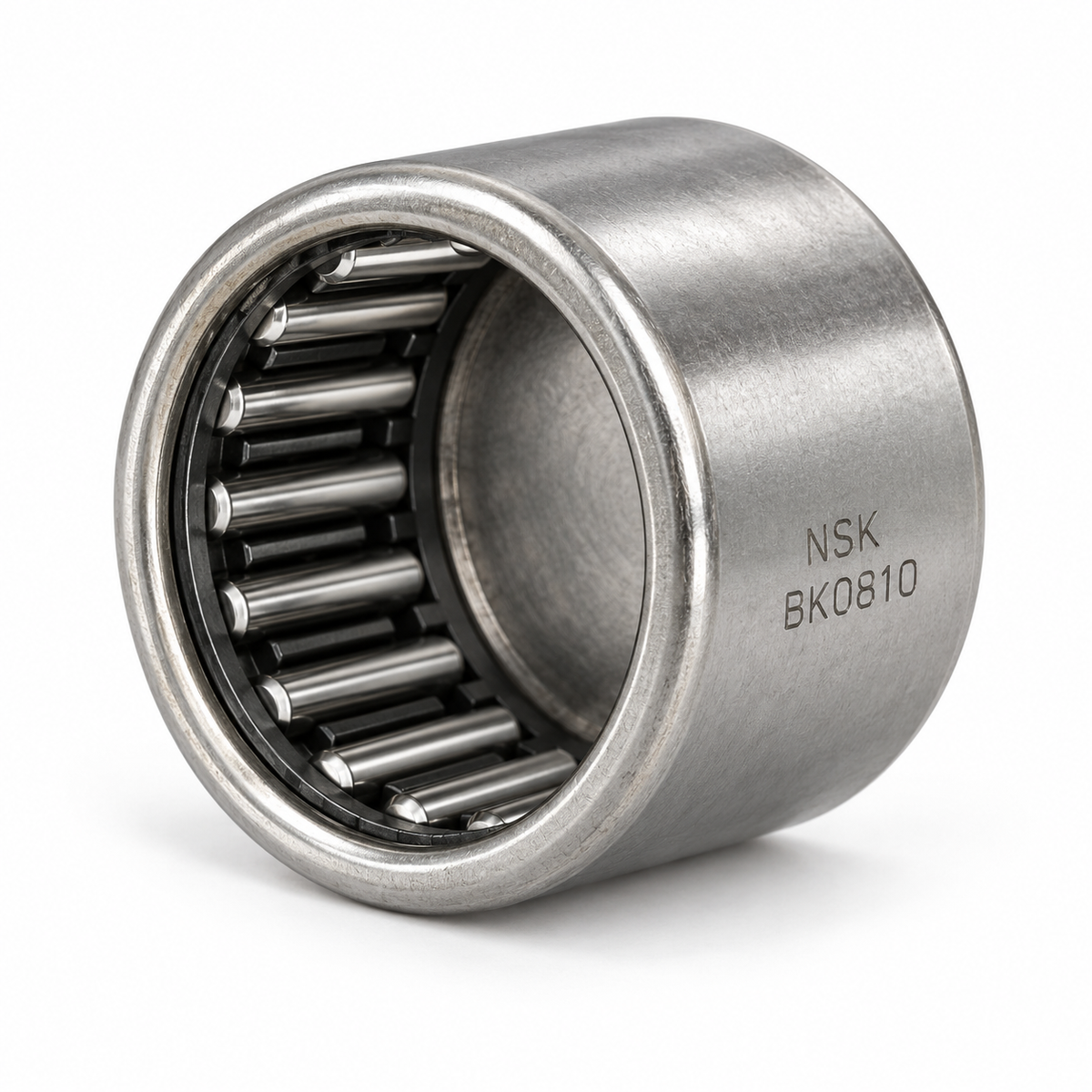

NSK BK0810 Closed-End Drawn Cup Needle Roller Bearing – 8 × 12 × 10 mm
Regular price
$5.20 AUD
Coming Soon!
Expected availability: 23 November 2026
Email when stock available
NSK BK0810 Closed-End Drawn Cup Needle Roller Bearing – 8 × 12 × 10 mm
The NSK BK0810 needle roller bearing provides radial shaft support in a compact, thin-walled design. Its drawn steel outer cup contains caged needle rollers and features one closed end, making it suitable for shaft-end bearing arrangements.
Supplied without an inner ring, the rollers run directly on a suitably hardened and ground shaft. A compatible inner ring may be used where required.
Suitable applications include compatible gearboxes, small machinery, power tools and mechanical drive assemblies.

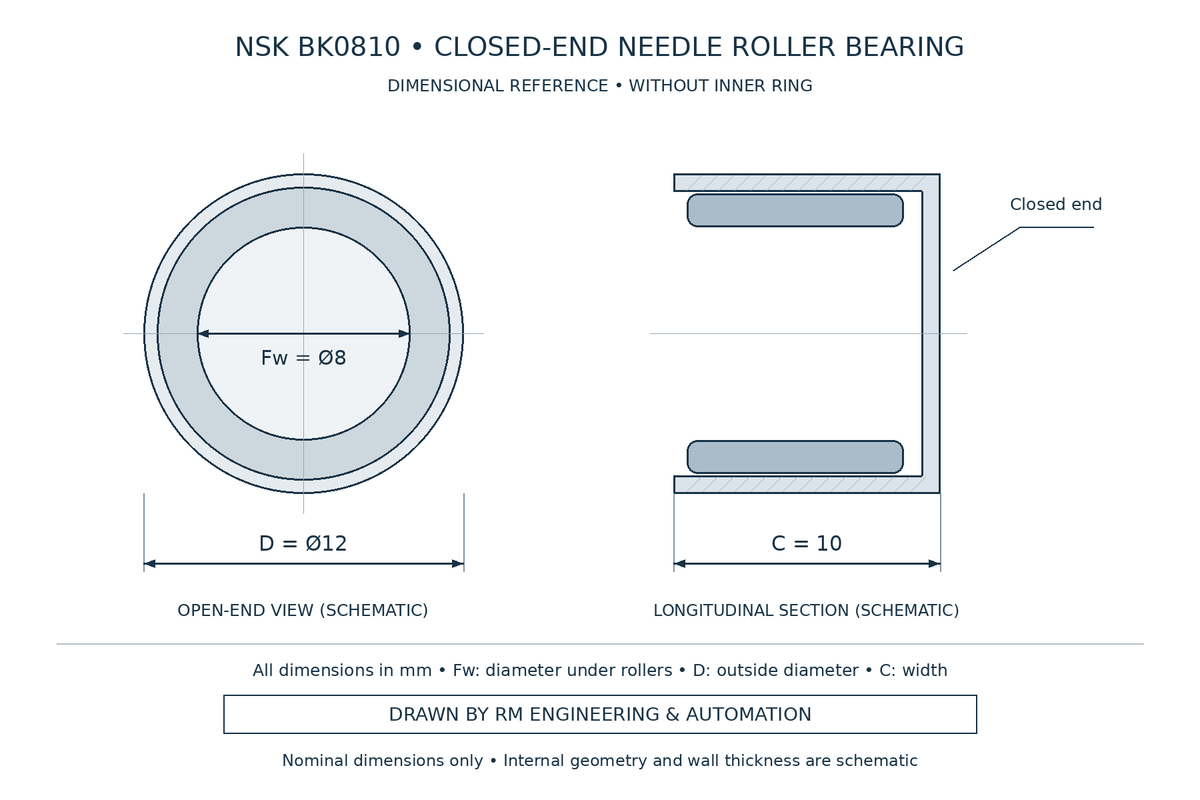

Specifications
| Specification | Details |
|---|---|
| Brand | NSK |
| Model | BK0810 |
| Bearing type | Drawn cup needle roller bearing |
| Diameter under rollers | 8 mm |
| Outside diameter | 12 mm |
| Overall width | 10 mm |
| Roller arrangement | Caged needle rollers |
| Design | One closed end |
| Inner ring | Not included |
| Package contents | 1 × BK0810 bearing |
Check shaft finish, housing fit, shaft insertion depth and lubrication requirements before installation.
