MA20×250 Mini Pneumatic Air Cylinder – 20mm Bore × 250mm Stroke
MA20×250 Mini Pneumatic Air Cylinder – 20mm Bore × 250mm Stroke
The MA20×250 Mini Pneumatic Air Cylinder is a compact and reliable pneumatic actuator designed for automation, machinery, packaging equipment, assembly systems, and general industrial applications.
Featuring a 20mm bore and 250mm stroke, this cylinder provides smooth and consistent linear movement while maintaining a compact overall design.

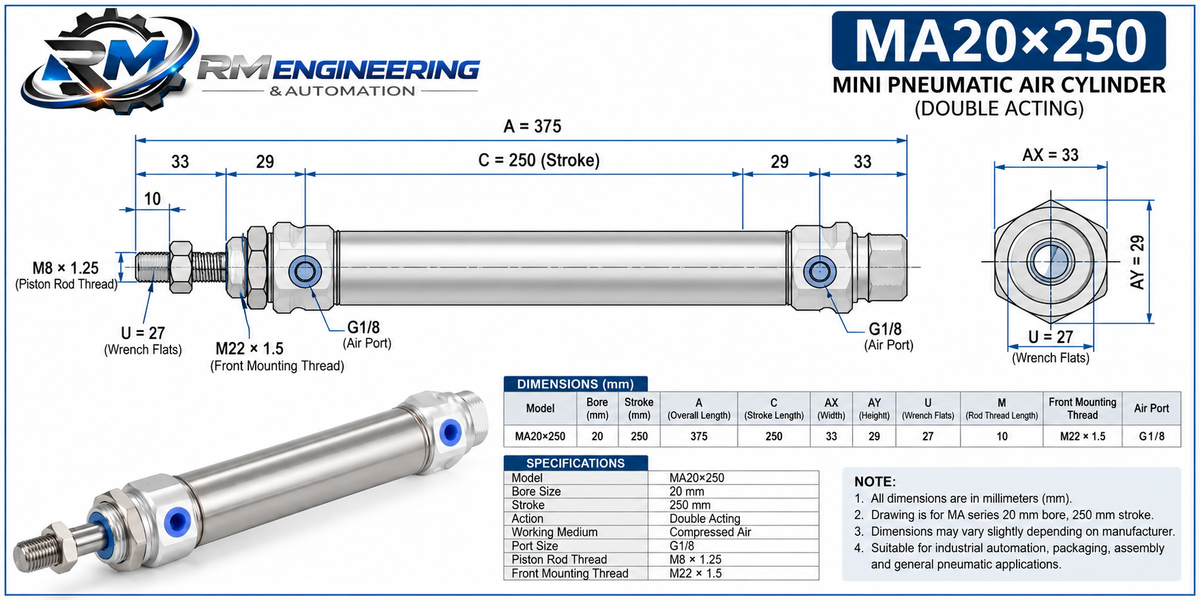

Specifications
-
Model: MA20×250
-
Cylinder Type: Mini Pneumatic Air Cylinder
-
Bore Size: 20 mm
-
Stroke: 250 mm
-
Action: Double Acting
-
Operation: Compressed Air
-
Body Style: Round Mini Cylinder
-
Application: Industrial Automation & Machinery
Applications
Suitable for:
-
Industrial automation
-
Conveyor systems
-
Packaging machinery
-
Assembly equipment
-
Pick-and-place systems
-
Clamping and positioning
-
General pneumatic machinery
The MA20×250 pneumatic cylinder is an ideal choice where a compact, dependable linear actuator with a longer 250mm stroke is required.
