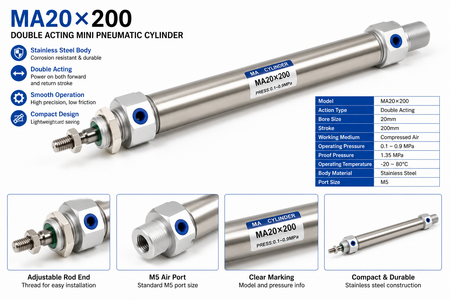

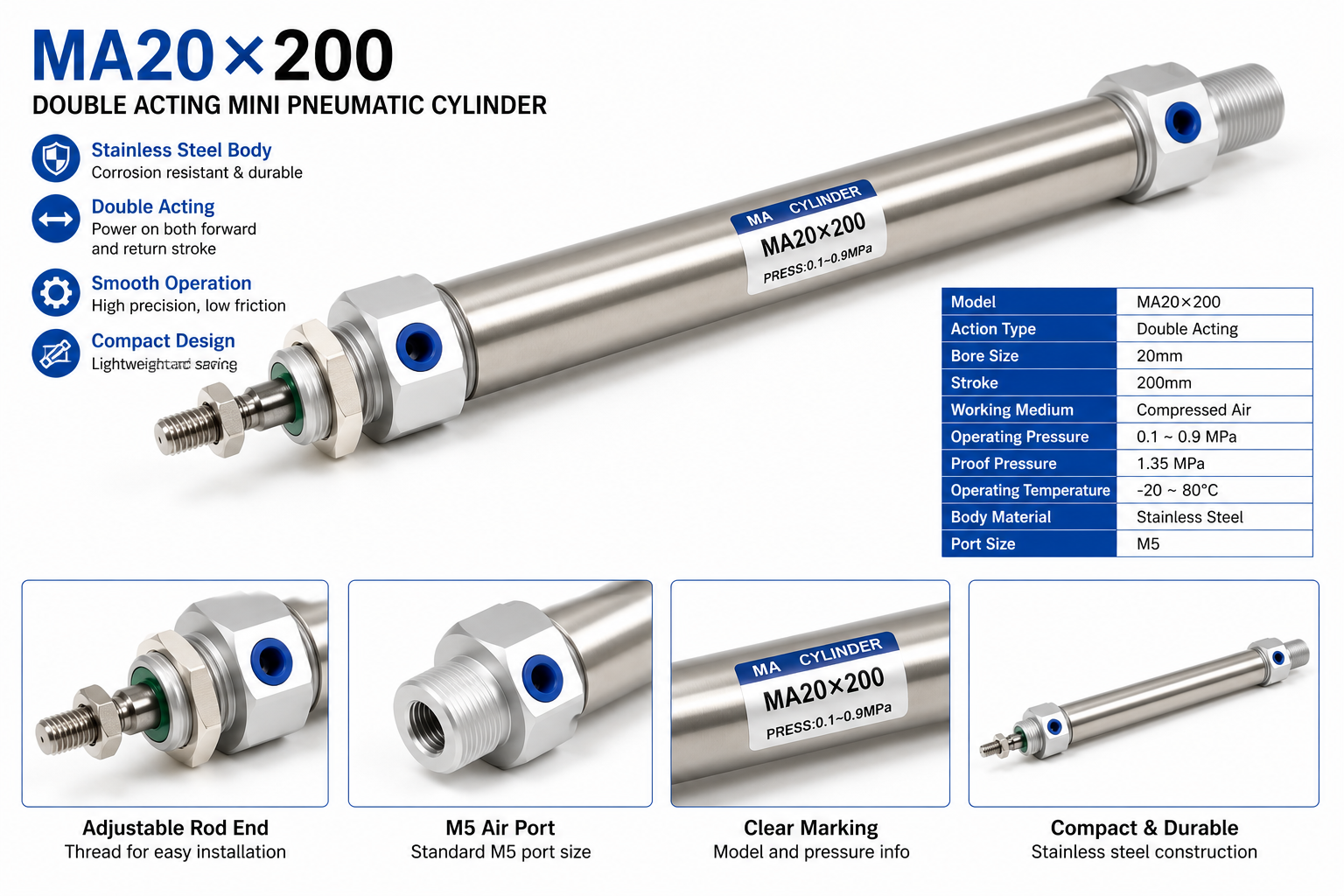

MA20×200 Double Acting Stainless Steel Mini Pneumatic Cylinder
Couldn't load pickup availability
The MA20×200 Mini Pneumatic Cylinder is a compact and durable double-acting air cylinder designed for precise linear motion and automation applications. Featuring a 20mm bore and 200mm stroke, this cylinder delivers smooth and reliable performance for pushing, pulling, lifting, and positioning tasks in industrial and workshop environments.
Constructed from stainless steel, the MA series offers excellent corrosion resistance, strength, and long service life. Its double-acting design allows compressed air to power movement in both directions, providing efficient and accurate control for pneumatic systems.
Suitable for automation equipment, packaging machinery, CNC systems, robotics, material handling, and general pneumatic applications.
Features
- Double-acting pneumatic cylinder
- 20mm bore diameter
- 200mm stroke length
- Stainless steel cylinder body
- Smooth and reliable operation
- Corrosion-resistant construction
- Compact round-body design
- Suitable for industrial automation and machinery
Specifications
| Specification | Value |
|---|---|
| Model | MA20×200 |
| Type | Mini Pneumatic Cylinder |
| Action | Double Acting |
| Bore Size | 20mm |
| Stroke Length | 200mm |
| Body Material | Stainless Steel |
| Working Medium | Compressed Air |
| Operating Pressure | 0.1–0.9 MPa |
Applications
- Industrial automation
- Packaging machinery
- CNC equipment
- Robotics systems
- Material handling equipment
- Pneumatic control systems
- Manufacturing machinery
Package Includes
- 1 × MA20×200 Double Acting Stainless Steel Mini Pneumatic Cylinder
