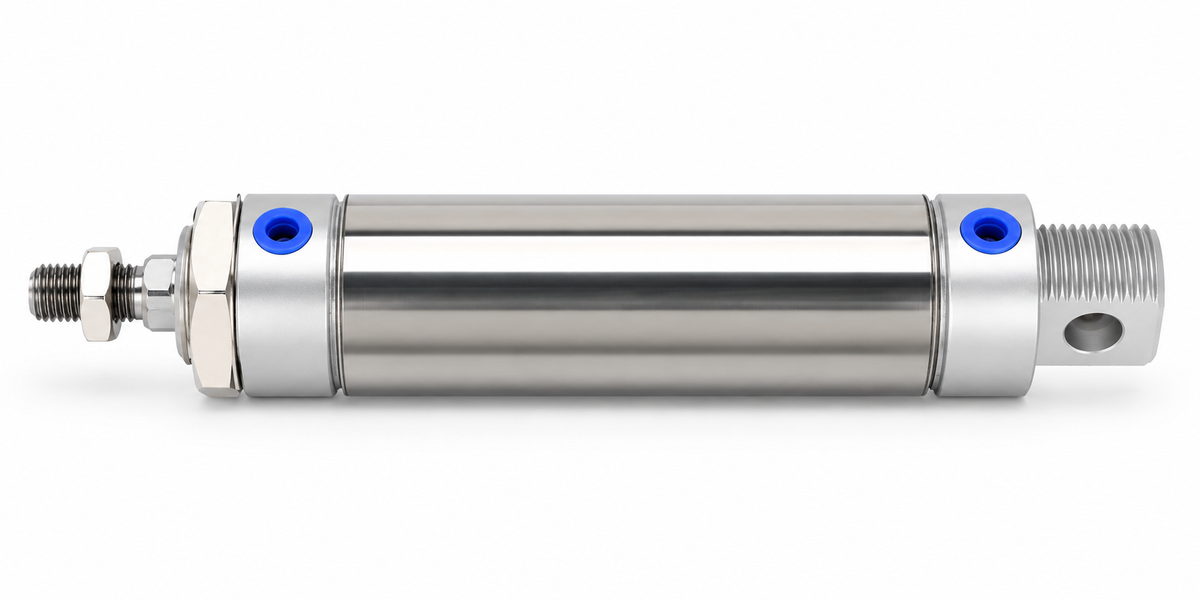

MA16x25Mini Pneumatic Air Cylinder – 16mm Bore x 25mm Stroke – Double Acting

The MA16x25 Mini Pneumatic Air Cylinder is a compact double-acting pneumatic actuator designed for industrial automation, machinery, positioning, clamping, pushing and pulling applications.

Featuring a 16 mm bore and 25 mm stroke, the MA16x25 provides smooth and reliable linear movement while maintaining a slim, space-saving design. Its stainless steel cylinder body offers good durability and corrosion resistance for general industrial use.

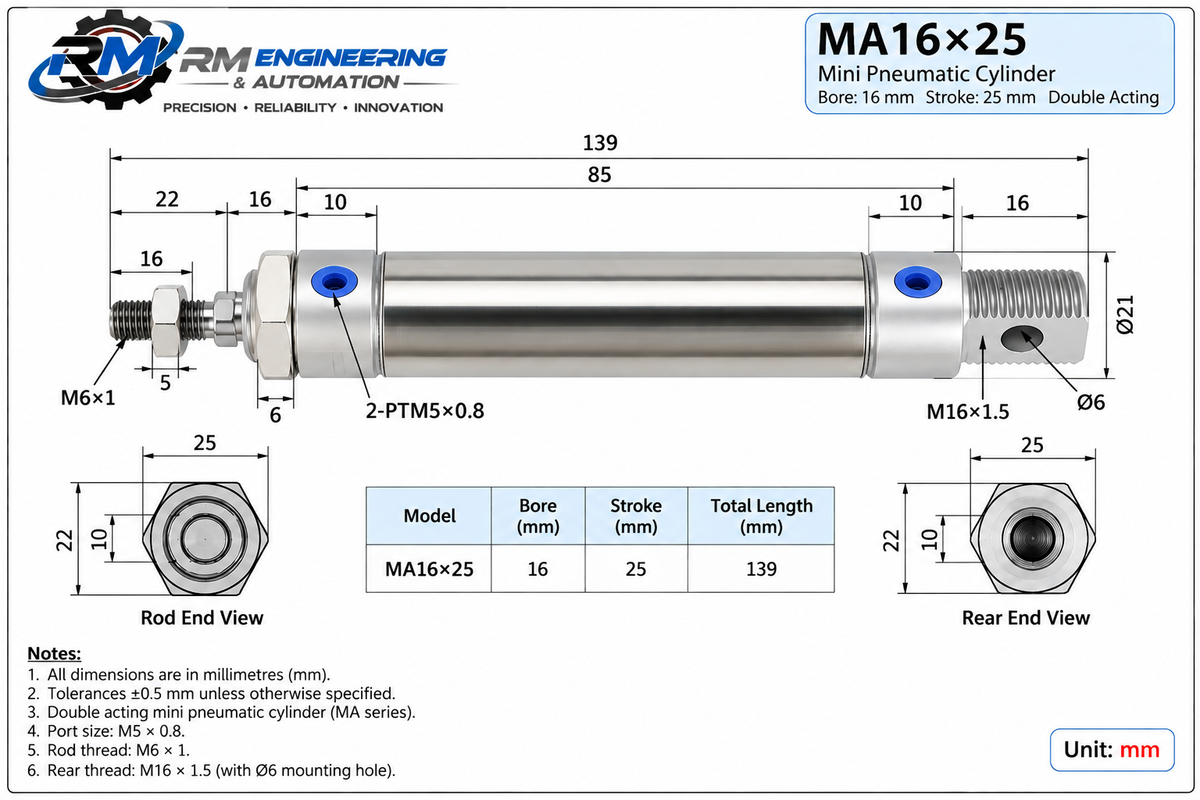

Specifications

• Model: MA16x25
• Cylinder Type: Mini Pneumatic Cylinder
• Operation: Double Acting
• Bore: 16 mm
• Stroke: 25 mm
• Body: Stainless Steel
• Air Port: M5 x 0.8
• Piston Rod Thread: M6 x 1
• Rear Thread: M16 x 1.5
• Piston Rod Diameter: 6 mm

Applications

Suitable for automation equipment, conveyors, packaging machinery, jigs and fixtures, assembly equipment, positioning systems, and general pneumatic machinery.
