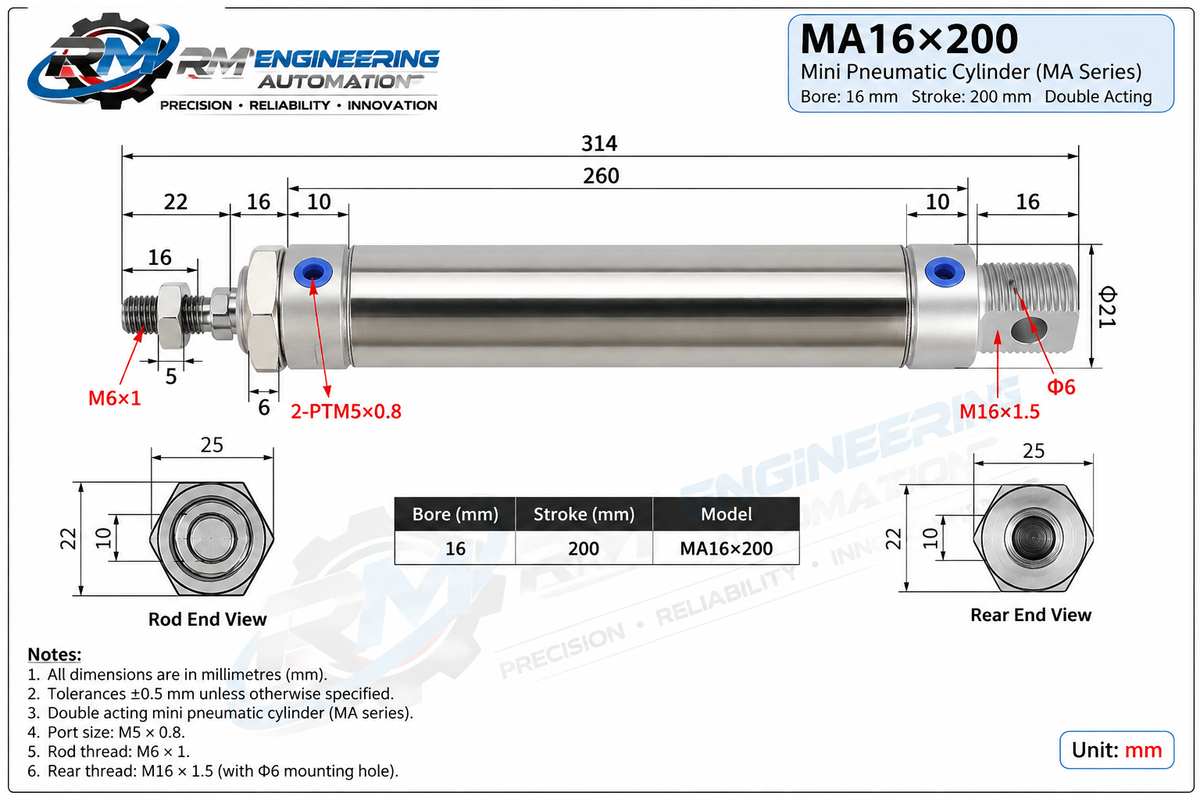

MA16x200 Mini Pneumatic Air Cylinder – 16mm Bore x 200mm Stroke – Double Acting

The MA16x200 Mini Pneumatic Air Cylinder is a compact and reliable double-acting air cylinder designed for automation, machinery, clamping, positioning, and general industrial applications. With a 16 mm bore and 200 mm stroke, it provides smooth linear motion in a slim and space-saving design.

This cylinder features a durable stainless steel body for good corrosion resistance and long service life, making it suitable for a wide range of pneumatic systems and automation equipment.

Key Features:

• Model: MA16x200
• Type: Mini Pneumatic Cylinder
• Operation: Double Acting
• Bore Size: 16 mm
• Stroke Length: 200 mm
• Body Material: Stainless Steel
• Port Size: M5 x 0.8
• Rod Thread: M6 x 1
• Rear Thread: M16 x 1.5
• Compact and lightweight design
• Smooth and reliable operation

Applications:
Suitable for automation equipment, packaging machines, conveyors, fixtures, pushing and pulling applications, and general pneumatic machinery.
