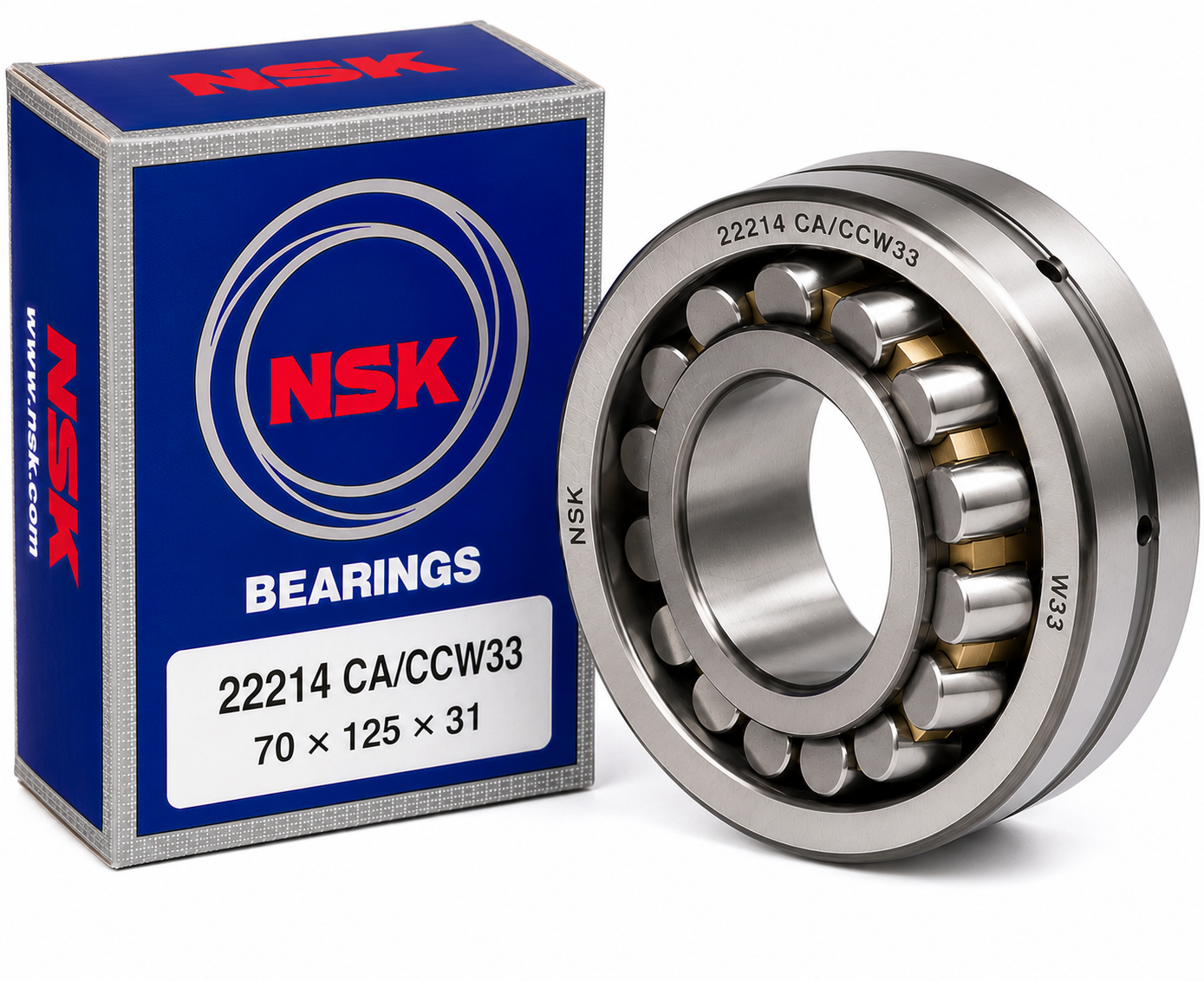

22214 CA/CCW33 Spherical Roller Bearing – 70 × 125 × 31 mm
Regular price
$29.90 AUD
Couldn't load pickup availability
The 22214 CA/CCW33 is a double-row spherical roller bearing designed for demanding industrial and mechanical applications. Its self-aligning design helps compensate for shaft deflection and minor misalignment, making it ideal for heavy-duty rotating equipment.
The W33 suffix indicates a lubrication groove and lubrication holes in the outer ring, allowing easier relubrication during service. CA and CC refer to different internal cage/roller designs, so the exact marking on the bearing or box should be used in the final website title. Listings for both 22214 CA/W33 and 22214 CC/W33 show the standard dimensions as 70 × 125 × 31 mm.
Specifications
| Specification | Details |
|---|---|
| Bearing Type | Spherical Roller Bearing |
| Part Number | 22214 CA/CCW33 |
| Bore / Inside Diameter | 70 mm |
| Outside Diameter | 125 mm |
| Width | 31 mm |
| Bore Type | Cylindrical bore |
| Design | Double-row spherical roller |
| Seal Type | Open bearing |
| Lubrication Feature | W33 groove and lubrication holes |
| Approx. Weight | 1.52–1.59 kg |
Key Features
- Heavy-duty spherical roller bearing
- Self-aligning design for shaft misalignment
- High radial load capacity
- Suitable for moderate axial loads
- W33 lubrication groove and holes
- Open design for relubrication
- Commonly used in conveyors, gearboxes, pumps, fans, crushers, and industrial machinery
